| Recommended tightening torque for set screw | 3,9 N-m | ||
| Operating temperature min. | -20 °C | ||
| C - Dynamic load rating | 11,9 kN | ||

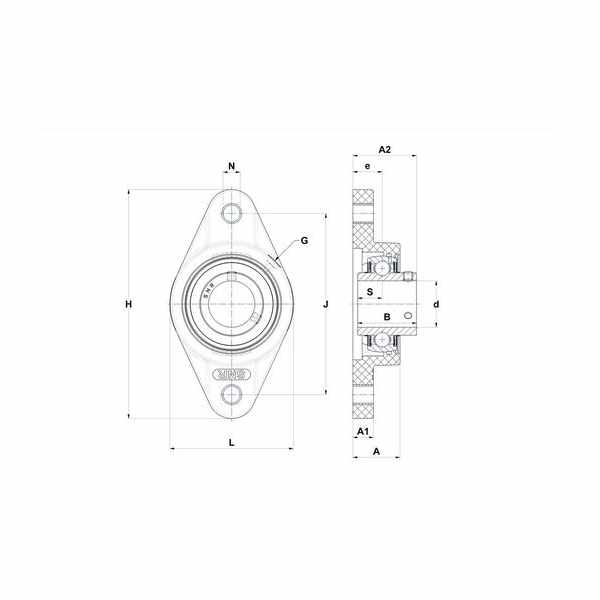

| N - Mounting hole dimension | 11 mm | ||
| J - Mounting holes distance | 99 mm | ||
| G - Grease fitting | 1/4"-28 | ||
| A2 - Total height from mounting surface | 36,8 mm | ||
| A - Housing height | 29,1 mm |
| Operating temperature max. | 100 °C | ||
| C0 - Static load rating | 6,3 kN | ||
| S - Dist. cent. of raceway to face IR on side opp. lock. device | 14,3 mm | ||
| L - Housing width / diameter | 70 mm | ||
| H - Housing length, width or diameter | 130 mm | ||
| e - Distance mounting surface to bearing center | 17 mm | ||
| A1 - Housing foot height / flange height | 13,5 mm | ||
| Brand | SNR |
