| Gewicht | .87508 lb | ||
| port location | side ported or top ported | ||
| shaft load | 0.9 n?m | ||
| operating pressure range (mpa) | 0.15 to 0.7 | ||
| proof pressure (mpa) | 1,05 | ||
| rotating angle ?1 | 90 ? 10 | ||

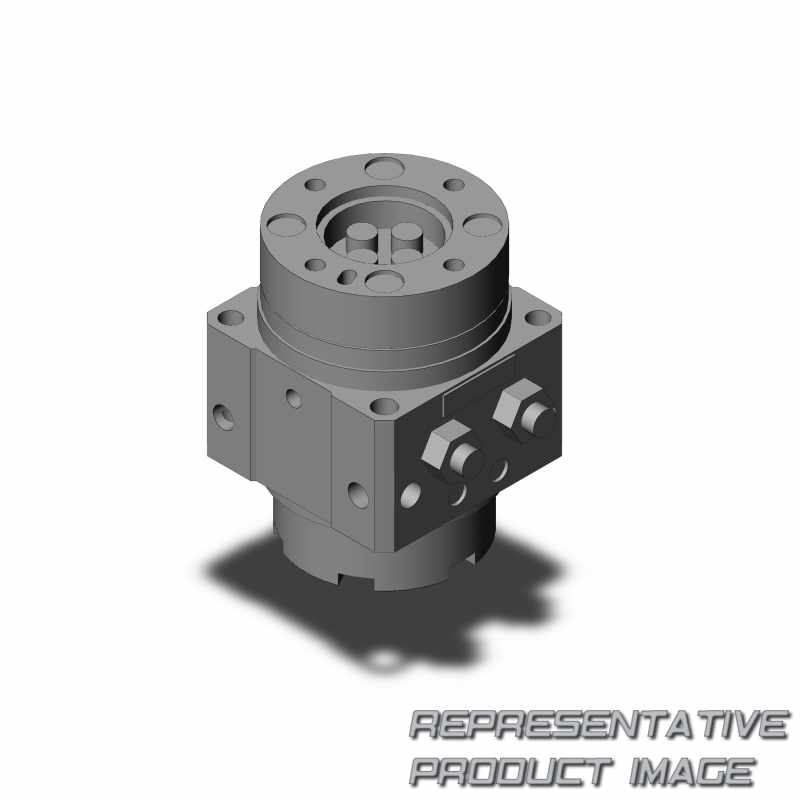

| model ?3 | msub7 |
| Anschlussgröße | m5 x 0.8 | ||
| bearing | bearing | ||
| rotation time adjustment range (s/90) | 0.07 to 0.3 (0.5 mpa) | ||
| ambient and fluid temperature | 5 to 60c | ||
| fluid | air (non-lube) | ||
| vane type | single vane |
