| Werkstoff Membran | NBR | ||
| Werkstoff Dichtungen | NBR | ||
| Pneumatischer Anschluss 2 | For sub-base diameter 7 mm | ||
| Pressure gauge connection | G1/8 | ||
| Produktgewicht | 200 g | ||
| Mediumstemperatur | -10 °C ... 60 °C | ||
| Korrosionsbeständigkeitsklasse KBK | 2 - Moderate corrosion stress | ||
| Betriebsmedium | Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases | ||
| Max. Druckhysterese | 0,02 bar | ||
| Betriebsdruck | 1 bar ... 8 bar | ||
| Symbol | 00991540 | ||

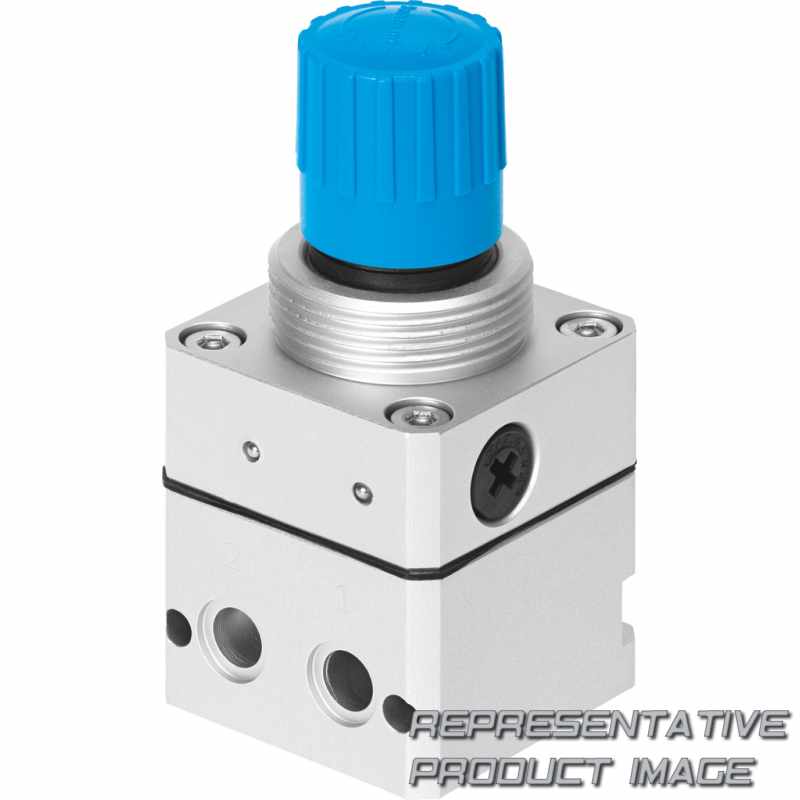

| Konstruktiver Aufbau | Piloted precision diaphragm control valve | ||
| Actuator lock | Rotary knob with detent | ||
| Baugröße | 40 |
| Werkstoff Gehäuse | Aluminium | ||
| Werkstoff-Hinweis | RoHS-compliant | ||
| Pneumatischer Anschluss 1 | For sub-base Ø 7 mm | ||
| Befestigungsart | Front panel mounting In-line installation With accessories | ||
| Umgebungstemperatur | -10 °C ... 60 °C | ||
| Lagertemperatur | -10 °C ... 60 °C | ||
| Hinweis zum Betriebs-/Steuermedium | Lubricated operation not possible | ||
| Standard nominal flow rate | 240 l/min | ||
| Druckregelbereich | 0,1 bar ... 6 bar | ||
| Pressure gauge (ANALOG) or Pressure display (DIGITAL) | Prepared for G1/8 | ||
| Controller function | Output pressure constant With secondary venting | ||
| Einbaulage | optional | ||
| Baureihe | LR |
