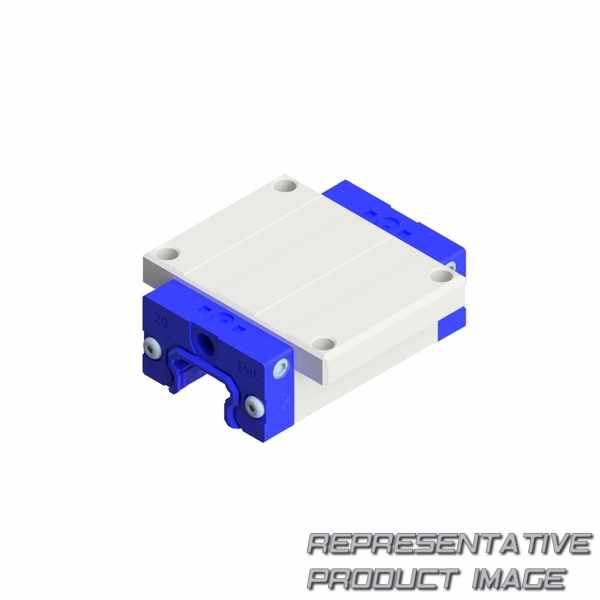

| Brand | SNR | ||
| Carriage version | C | ||
| Baugröße | 20 | ||
| Sealing | SS - End seals on both sides, inner and side seals | ||
| Special options | N - Standard | ||
| Lubricant | A - SNR LUB HEAVY DUTY | ||

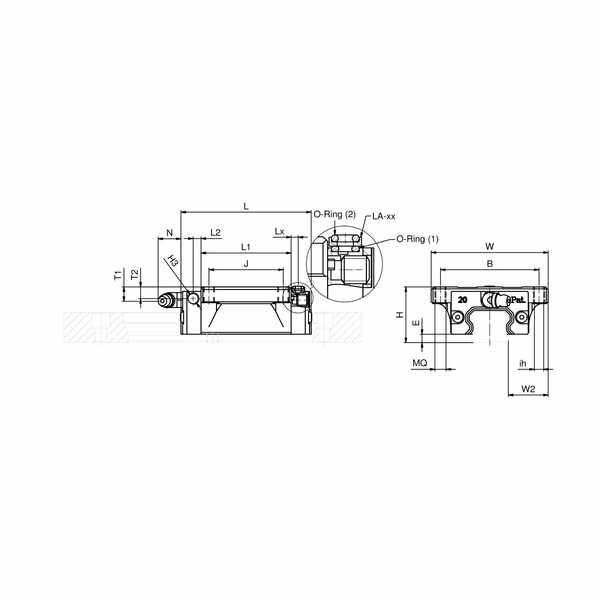

| W | 63 mm | ||
| E | 4,5 mm | ||
| J | 40 mm | ||
| ih | 5,4 mm | ||
| L1 | 76,5 mm | ||
| T1 | 7,1 mm | ||
| T2 | 6,3 mm | ||
| H3 | M 6 | ||
| C50 | 27,85 kN | ||
| C0 | 49,61 kN | ||
| My | 0,565 kN/m |
| Baureihe | LGB | ||
| Carriage Height | H | ||
| Design type | FE | ||
| Material | Carbon steel | ||
| Lubrication connection | 00 - Conical grease nipple 67° | ||
| H | 30 mm | ||
| W2 | 21,5 mm | ||
| L - Length | 97,3 mm | ||
| MQ | M 6 | ||
| L | 9 mm | ||
| H2 | M 6 | ||
| N | 12,3 mm | ||
| L2 | 4,25 mm | ||
| Lx | 3,8 mm | ||
| C100 | 22,1 kN | ||
| Mx | 0,464 kN/m | ||
| Mz | 0,565 kN/m |
