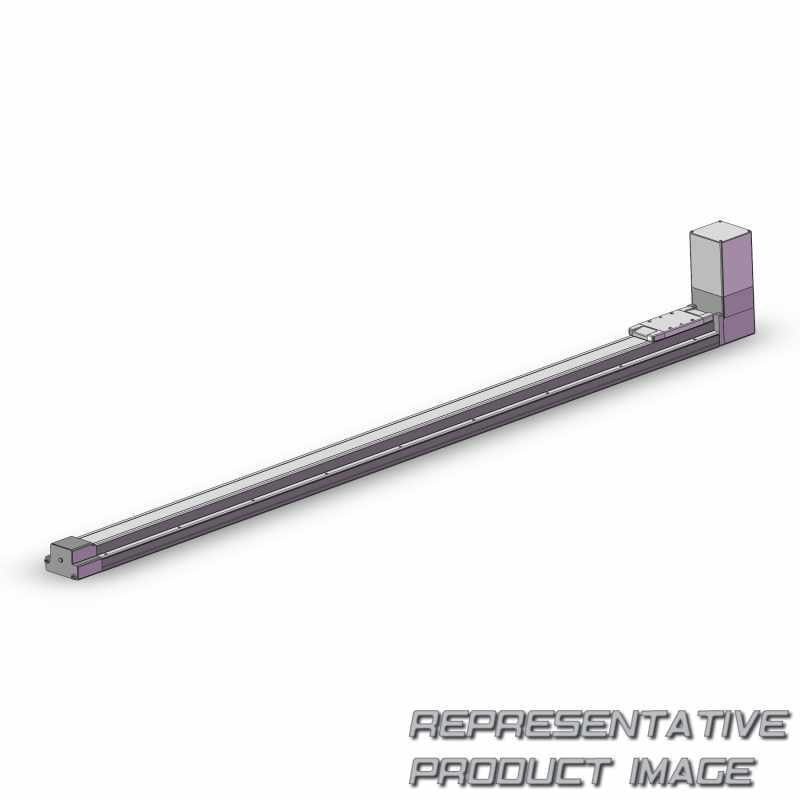

| lock unit specifications - rated voltage [v] | 24 vdc 0 10% | ||
| lock unit specifications - holding force [n] | 110 | ||
| electric specifications - max. instantaneous power consumption [w] note 7) | 1.275 | ||
| electric specifications - powerconsumption [w] note 5) - horizontal | ? | ||
| electric specifications - motor type | ac servo motor (100/200 vac) | ||
| actuator specifications - operating humidity range [%rh] | 90 or less (no condensation) | ||
| actuator specifications - guide type | linear guide | ||
| actuator specifications - impact/vibration resistance [m/s2] note 4) | 50/20 | ||
| actuator specifications - positioning repeatability [mm] | o0.08 | ||
| actuator specifications - max. speed [mm/s] | 2,000 | ||
| actuator specifications - stroke [mm] note 1) | 300, 400, 500600, 700, 800900, 1000, (1100)1200, (1300, 1400)1500, (1600, 1700)(1800, 1900), 20002500, 3000 |
| lock unit specifications - power consumption at 20nc [w] note 9) | 7,90 | ||
| lock unit specifications - type note 8) | non-magnetizing lock | ||
| electric specifications - standby power consumption when operating [w] note 6) - vertical | ? | ||
| electric specifications - encoder | motor type s2, s3, s4: incremental 17-bit encoder (resolution: 131072 p/rev) motor type s6, s7, s8: absolute 18-bit encoder (resolution: 262144 p/rev) | ||
| electric specifications - motor output/size | 400 w/;60 | ||
| actuator specifications - operating temperature range [nc] | 5 to 40 | ||
| actuator specifications - actuation type | belt | ||
| actuator specifications - equivalent lead [mm] | 54 | ||
| actuator specifications - max. acceleration/deceleration [mm/s2] | 20,000 (refer to page 81 for limit according to work load and duty ratio.) note 3) | ||
| actuator specifications - work load [kg] note 2) - horizontal | 25 | ||
| Baureihe | lefb40s4 |
