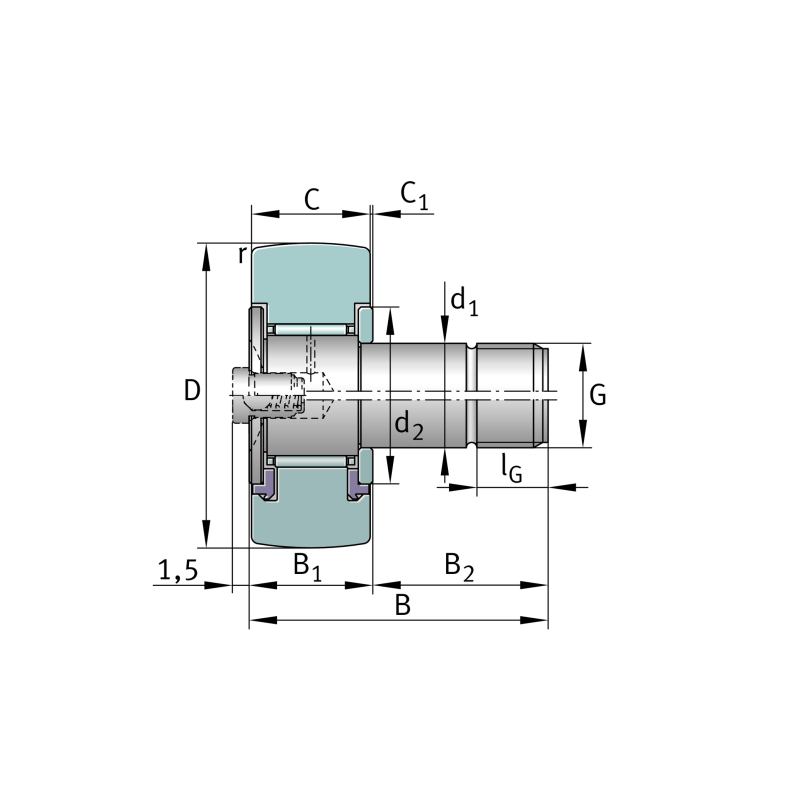

| Außen-Ø | D | 16 | mm |
| Width of the roller stud | B | 28 | mm |
| Basic static load rating, radial | C0r | 3,450 | |
| Speed on permanent grease lubrication | nD G | 14,000 |
| Fit diameter of roller stud / stud | d1 | 6 | mm |
| Basic dynamic load rating, radial | Cr | 3,200 | |
| Fatigue load limit, radial | Cur | 465 | N |
| Maximum witdh of thrust washer | B1 | 12,20 | mm |
| Width, outer ring | C | 11 | mm |
| Minimum chamfer dimension | rmin | 0,15 | mm |
| Gewinde | M6 |
| Bolt/stud length effectively | B2 | 16 | mm |
| Protrusion outer ring to thrust washer | C1 | 0,60 | mm |
| Stop diameter of thrust washer | d2 | 12,50 | mm |
| Thread length | IG | 8 | mm |
| Hersteller | Teilenummer |
|---|---|
| NTN | KR16 FLL/3AS (NTN) |
