| Number of rows balls | 5 | ||

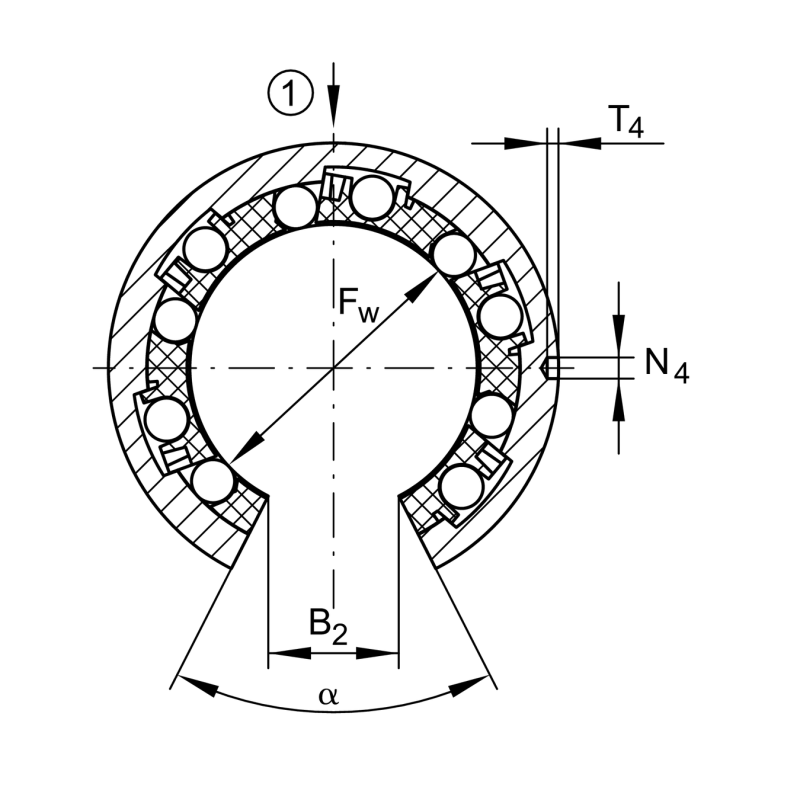

| Angle of sector opening | α | 54 | ° |
| Width of sector opening | B2 | 13,60 | mm |
| L2 | 55 | mm | |
| Tolerance | H13 |
| load capacity stat. | C0 min | 3,000 | |
| Tolerance | h12 | ||

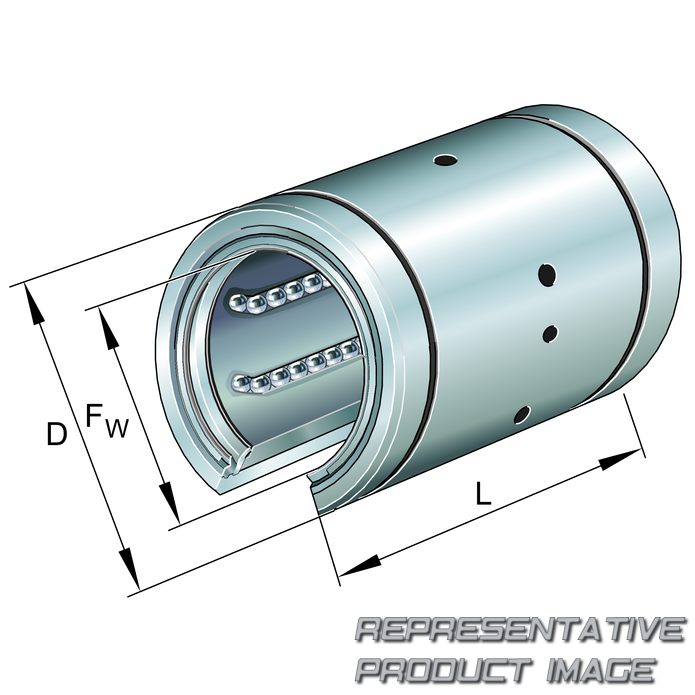

| Außen-Ø | D | 47 | mm |
| load capacity dyn. | Cmin | 3,700 | |
| Länge | L | 68 | mm |
| Bore diameter of ball complement | FW | 30 | mm |
| Hersteller | Teilenummer |
|---|---|
| REXROTH | KB30SP2D |
| Korb | LAN30x47x68-RS |
| NADELLA | LME30G-UU-OP |
| REXROTH | KB30S2D |
| EWELLIX | LBAT30-2LS (EWELLIX) |
| REXROTH | 0632-030-00 |
| REXROTH | 0635-030-00 |
| SKF | LBCT/LBHT 30 |
| Hiwin | UBM 30 OPWW |
| Hiwin | UB 30 OPWW |
| IKO | LBE30OP (IKO) |
| Dr-Tretter | LMEO 30 UU |
| NADELLA | KBB30G-UU-OP |
| Hiwin | UB 30 OPW |
| Thomson | MA M30 OPN W |
| Hiwin | UBM 30 OPW |
| Askubal | E30-OPXX |
