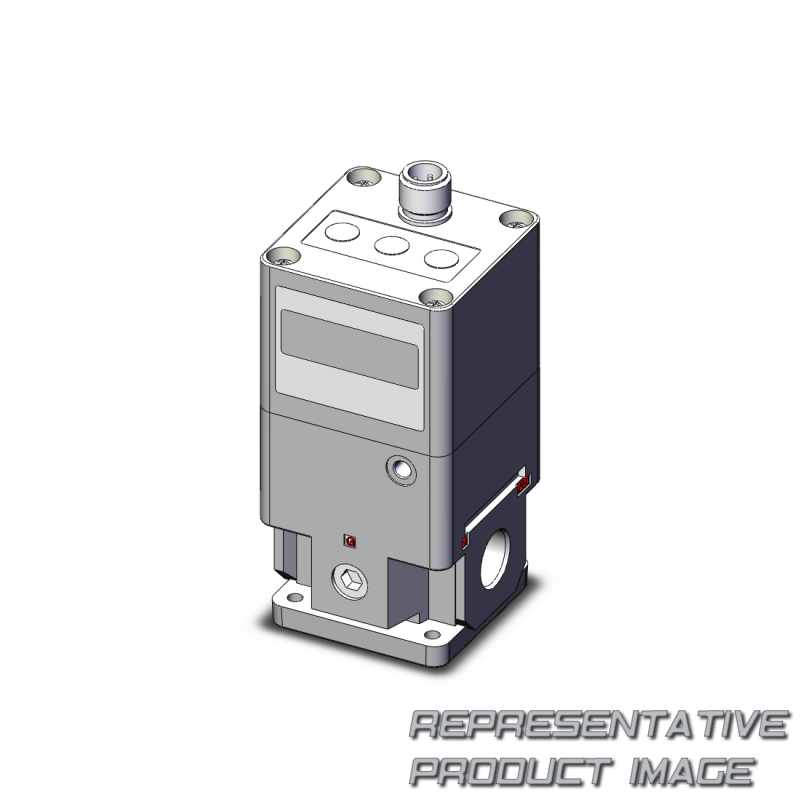

| Baureihe | itv2090 | ||
| power supply - current consumption | power supply voltage 24 vdc type: 0.12 a or less note 6)power supply voltage 12 to 15 vdc type: 0.18 a or less | ||
| maximum supply vacuum pressure | ?101 kpa | ||
| input signal - current type note 2) | 4 to 20 ma dc, 0 to 20 ma dc | ||
| input impedance - preset input | approximately 6.5 k | ||
| note 4)output signal (monitor output) - analog output | 1 to 5 vdc (load impedance: 1 k or more)4 to 20 ma dc (sink type) (load impedance: 250 or less)output accuracy within ?6% (full span) | ||
| Linearität | within ?1% (full span) | ||
| repeatability | within ?0.5% (full span) | ||
| temperature characteristics | within ?0.12% (full span)/c | ||
| output pressure display - units | kpa note 5) minimum display: 1 | ||
| enclosure | ip65 | ||
| Gewicht | 1.29682 lb |
| power supply - voltage | 24 vdc ?10% | ||
| minimum supply vacuum pressure note 1) | set pressure ?13.3 kpa | ||
| set pressure range | ?1.3 to ?80 kpa | ||
| input signal - voltage type | 4 points (negative common) | ||
| input impedance - current type | power supply voltage 24 vdc type: approximately 4.7 k power supply voltage 12 vdc type: approximately 2.0 k | ||
| note 4)output signal (monitor output) - switch output | npn open collector output: max. 30 v, 80 ma pnp open collector output: max. 80 ma | ||
| Hysterese | within 0.5% (full span) | ||
| Sensitivity | within 0.2% (full span) | ||
| output pressure display - accuracy | ?2%f.s. 1 digit | ||
| ambient and fluid temperature | 0 to 50c (no condensation) | ||
| weight note 7) | 350 g |
