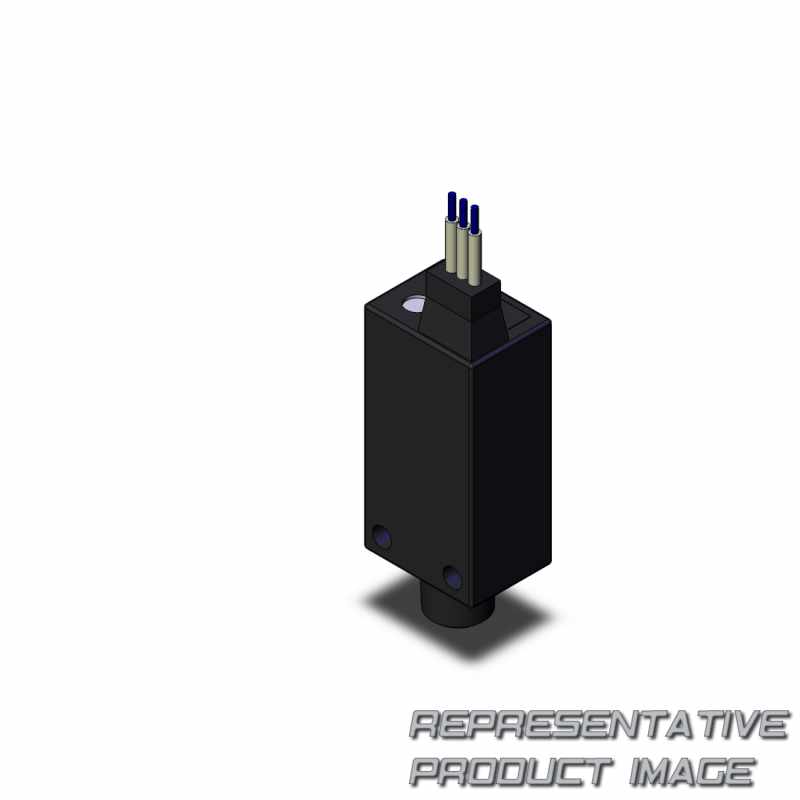

SMC ISE2-01-55C

Name: ISE2-01-55C SMC
Brand: SMC
SKU: 825438-de-eur
Price: 119.51 EUR
Availability: InStock

119,51 € ~~133,18 €~~ -10%

verfügbar mit 3 bis 7 Tagen Lieferzeit nach United States

Technische Daten

Versorgungsspannung	12 to 24 vdc ?10%, ripple (p-p) 10% or less (with power supply polarity protection)

Gewicht	60g

Gewicht		.13119 lb
lead wire		heat-resistant vinyl electric wire, 3-wire, cross section: 0.31 mm2, insulator o.d.: 1.55 mm
Anschlussgröße		01: r 1/8, m5 x 0.8 t1: nptf 1/8, m5 x 0.80x: with suction filter (for mounting on zx unit) 0r: base mount type (for mounting on zr unit)
withstand voltage		1000 vac for 1 min. (between live parts and case)
resistance		980 m/s2 in x, y, z directions, 3 times each (de-energized)
response time		5 ms or less
Versorgungsspannung		12 to 24 vdc ?10%, ripple (p-p) 10% or less (with power supply polarity protection)
proof pressure		1.5 mpa
Baureihe		for positive pressure

Standard		compliant with ce marking
mass		35 g (including 0.6 m-long lead wire)
insulation resistance		50 m or more (at 500 vdc by megameter) between live parts and case
temperature characteristics(based on 25c)		?3% f.s. or less
repeatability		?1% f.s. or less
Stromaufnahme		17 ma or less at 24 vdc
fluid		air/non-corrosive, non-flammable gas
rated pressure range/set pressure range		0 to 1 mpa
