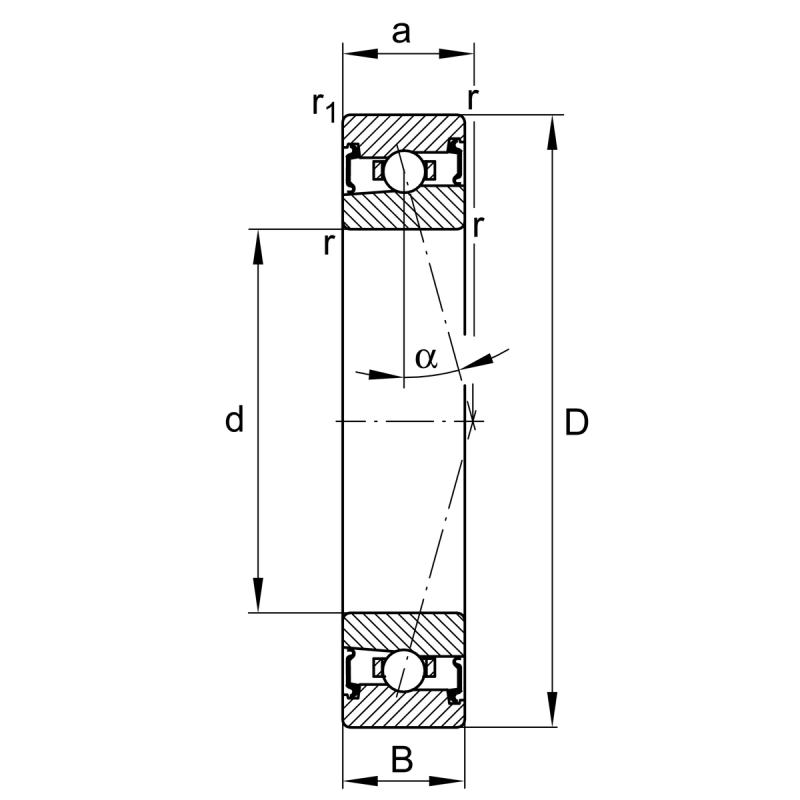

| Bore diameter | d | 12 | mm |
| Breite | B | 8 | mm |
| Basic static load rating, radial | C0r | 960 | N |
| Limiting speed for grease lubrication | nG Grease | 80,000 |
| Außen-Ø | D | 28 | mm |
| Basic dynamic load rating, radial | Cr | 2,450 | |
| Fatigue load limit, radial | Cur | 102 | N |
| Maximum recess radius | ra max | 0,10 | mm |
| Diameter shaft shoulder clearance | da | h12 | |
| Shoulder diameter outer ring clearance | Da | H12 |
| Diameter shaft shoulder | da | 16,50 | mm |
| Shoulder diameter outer ring | Da | 24,50 | mm |
| Distance between the apexes of the pressure cones | a | 6,70 | mm |
| Minimum chamfer dimension | rmin | 0,30 | mm |
| Contact angle | α | 15 | ° |
