REXROTH HSR
52 Produkte

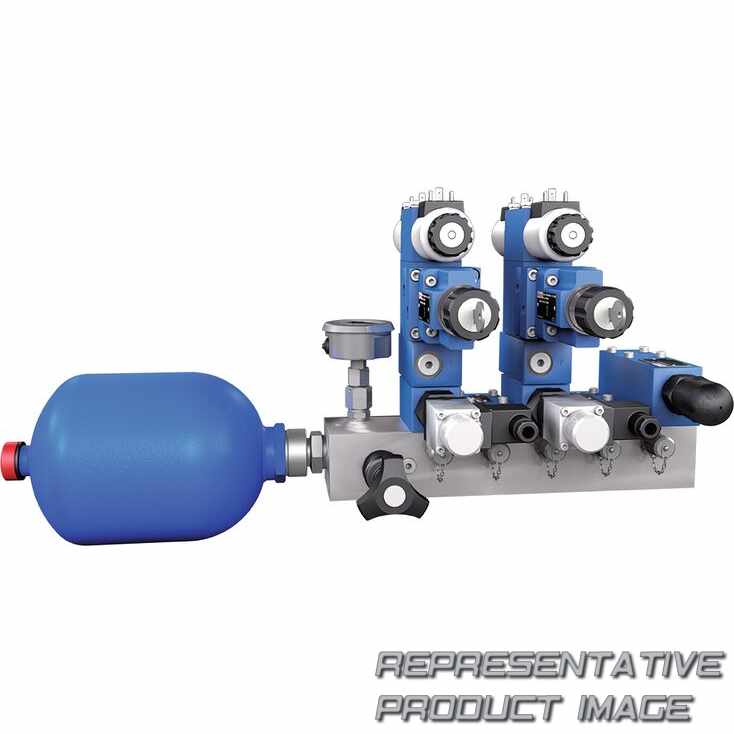

Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie REXROTH HSR – Manifold HSR. Finden Sie das passende Produkt durch Filtern mit Anzahl der Steuerungen, Baugröße, Baureihe, Position der Aktuatoranschlüsse und Beschichtung.
HSR Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| HSR | -HSR-10- -01- - | Manifold HSR |
| HSR | -HSR-06- -01- - | Manifold HSR |
| HSR | -HSR- -M-40-01-D- | Manifold HSR |
Typcode zur Katalognummer HSR,
-HSR-10- -01- -
| 01 | Number of controls |
|---|---|
| 1 | 1 control |
| 2 | 2 controls |
| 3 | 3 controls |
| 4 | 4 controls |
| 5 | 5 controls |
| 6 | 6 controls |
| 7 | 7 controls |
| 8 | 8 controls |
| 02 | Series |
| HSR | Manifold HSR |
| 03 | Size |
| 10 | Size 10 |
| 04 | Component Series |
| 15 | Port size: A, B = G1/2'; P, T = G3/4' |
| 35 | With enlarged connection thread: Port size: A, B = G3/4'; P, T = G1' |
| 05 | Connection Thread |
| 01 | Pipe thread according to DIN EN ISO 228-1 |
| 06 | Position of Actuator Ports |
|---|---|
| C | Lateral |
| D | Bottom |
| 07 | Maximum Pressure |
| 315 bar | |
| 350 | 350 bar |
| 08 | Types |
| Standard | |
| SO8 | With measuring ports in A and B |
| SO... | SO... |
| 09 | Coating |
| PHOSPHATED | Phosphate coating DIN EN ISO 9717 |
| FE//ZN8//CN/T0 | Galvanic coating DIN EN ISO 19598 |
| FEZN8CNT0 | Galvanic coating DIN EN ISO 19598 |
Typcode zur Katalognummer HSR,
-HSR-06- -01- -
| 01 | Number of controls |
|---|---|
| 1 | 1 control |
| 2 | 2 controls |
| 3 | 3 controls |
| 4 | 4 controls |
| 5 | 5 controls |
| 6 | 6 controls |
| 7 | 7 controls |
| 8 | 8 controls |
| 9 | 9 controls |
| 10 | 10 controls |
| 02 | Series |
| HSR | Manifold HSR |
| 03 | Size |
| 06 | Size 6 |
| 04 | Component Series |
| 25 | Port size: A, B = G3/8; P, T = G1/2 |
| 35 | With enlarged connection thread: Port size: A, B = G1/2; P, T = G3/4 |
| 05 | Connection Thread |
|---|---|
| 01 | Pipe thread according to DIN EN ISO 228-1 |
| 06 | Position of Actuator Ports |
| C | Lateral |
| D | Bottom |
| 07 | Maximum Pressure |
| 315 bar | |
| 350 | 350 bar |
| 08 | Position of actuator ports |
| Standard | |
| SO8 | With measuring ports in A and B |
| SO... | SO... |
| 09 | Coating |
| PHOSPHATED | Phosphate coating DIN EN ISO 9717 |
| FE//ZN8//CN/T0 | Galvanic coating DIN EN ISO 19598 |
| FEZN8CNT0 | Galvanic coating DIN EN ISO 19598 |
Typcode zur Katalognummer HSR,
-HSR- -M-40-01-D-
| 01 | Number of controls |
|---|---|
| 1 | 1 control |
| 2 | 2 controls |
| 3 | 3 controls |
| 4 | 4 controls |
| 5 | 5 controls |
| 6 | 6 controls |
| 7 | 7 controls |
| 8 | 8 controls |
| 02 | Series |
| HSR | Manifold HSR |
| 03 | Size |
| 06 | Size 6 |
| 10 | Size 10 |
| 04 | Measuring ports |
|---|---|
| M | With measuring ports in the actuator ports A and B |
| 05 | Component series |
| 40 | Manifold with installation possibility for a pressure relief valve type DBD 6 (with NG06) or DBD 10 (with NG10) and attachment possibility for a pressure gauge type ABZMM in pressure channel P |
| 06 | Connection Thread |
| 01 | Pipe thread according to DIN EN ISO 228-1 |
| 07 | Position of Actuator Ports |
| D | Bottom |
| 08 | Coating |
| PHOSPHATED | Phosphate coating DIN EN 12476 |
| Fe//ZN8//CN/T0 | Galvanic coating DIN 50979 |
| FeZN8CNT0 | Galvanic coating DIN 50979 |
