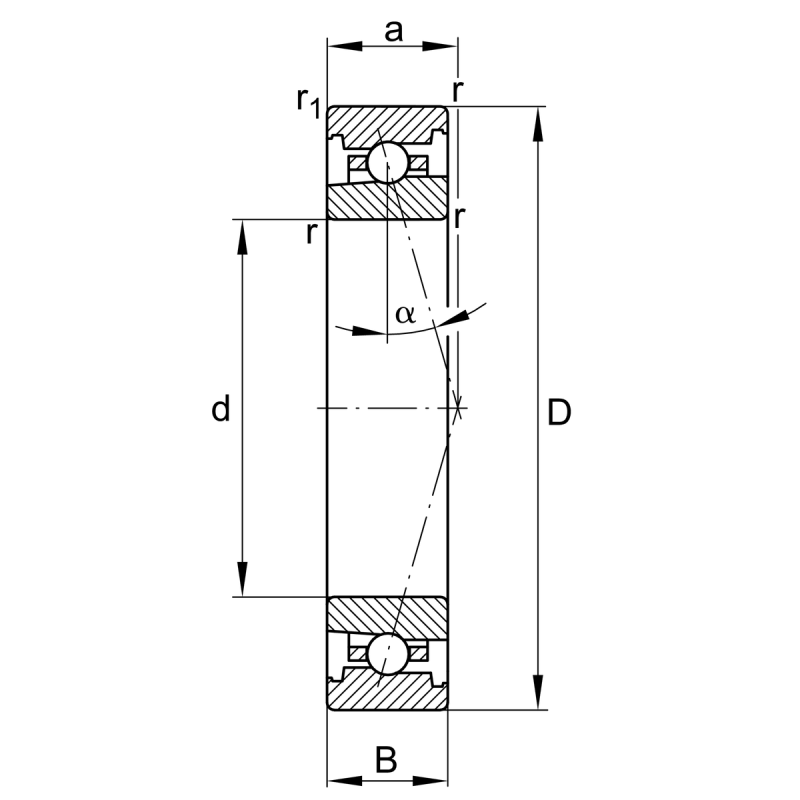

| Bore diameter | d | 12 | mm |
| Breite | B | 8 | mm |
| Basic static load rating, radial | C0r | 960 | N |
| Limiting speed for grease lubrication | nG Grease | 80,000 |
| Außen-Ø | D | 28 | mm |
| Basic dynamic load rating, radial | Cr | 2,450 | |
| Fatigue load limit, radial | Cur | 102 | N |
| Limiting speed for oil lubrication | nG Oil | 130,000 |

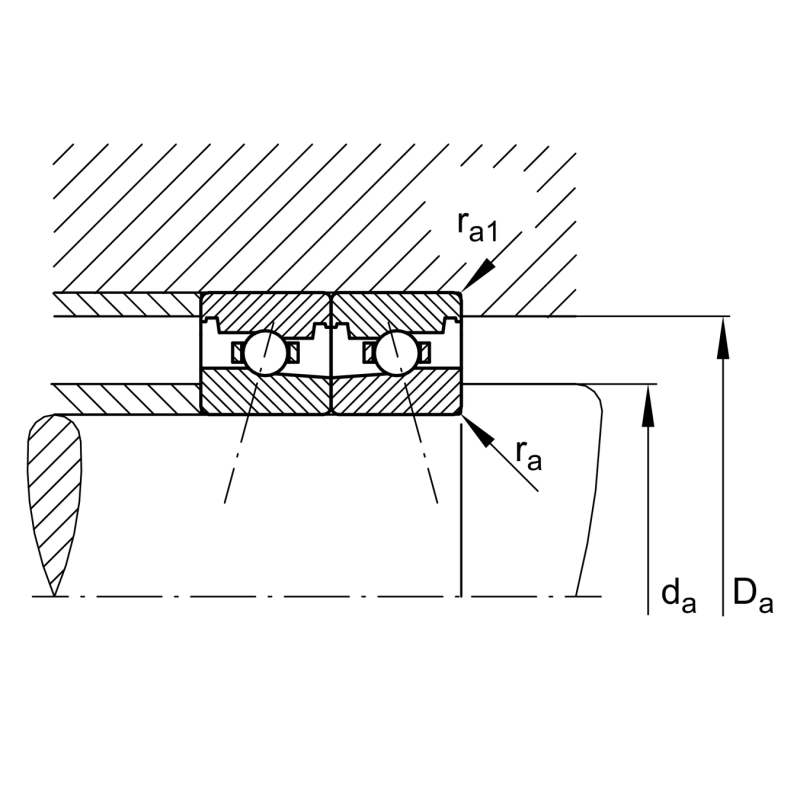

| Diameter shaft shoulder | da | 16,50 | mm |
| Shoulder diameter outer ring | Da | 24,50 | mm |
| Maximum recess radius | ra max | 0,10 | mm |

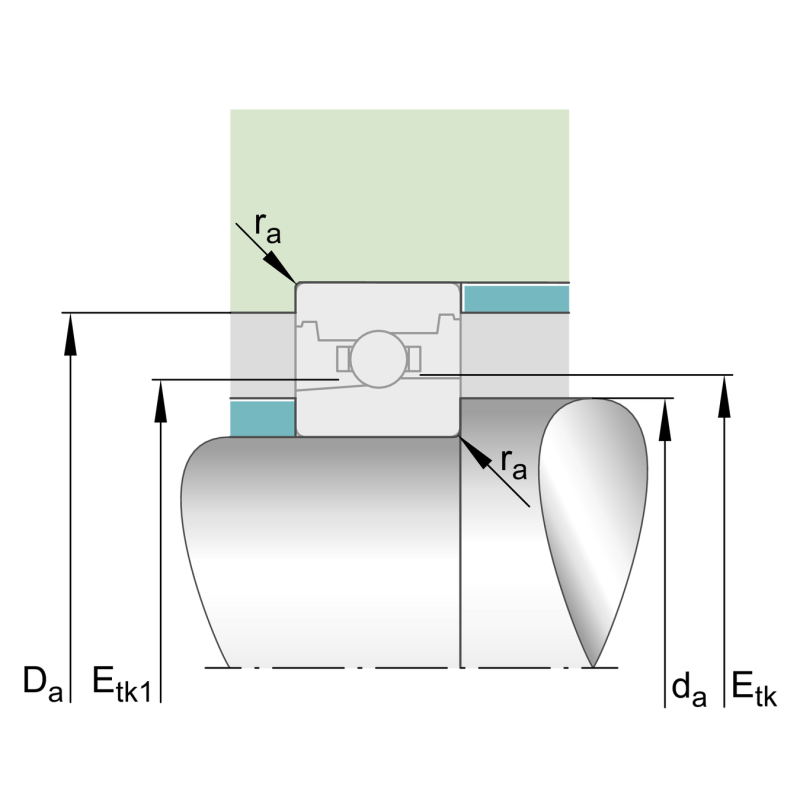

| Maximum diameter injection pitch | Etk max | 18,90 | mm |
| Diameter shaft shoulder clearance | da | h12 | |
| Shoulder diameter outer ring clearance | Da | H12 | |
| Minimum diameter injection pitch | Etk min | 17,30 | mm |
| Distance between the apexes of the pressure cones | a | 6,70 | mm |
| Minimum chamfer dimension | rmin | 0,30 | mm |
| Contact angle | α | 15 | ° |
| Hersteller | Teilenummer |
|---|---|
| SNFA | VEX12-7CE1-UL |
| Fafnir | 2MMV99101WN-CRUL |
| Fafnir | 2MMV9101HX-CRUL |
