| dust protection seal | UU - Seal Attached On Both Ends | ||
| preload | no preload | ||

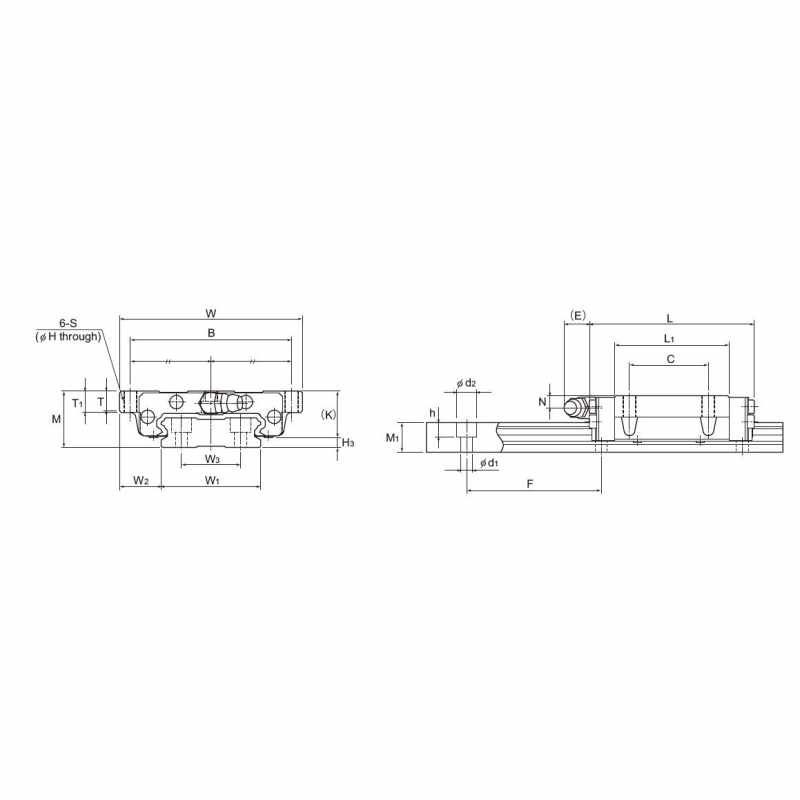

| outer dimensions - widthw - mm | 60 | ||
| block dimensions - b - mm | 53 | ||
| block dimensions - s | m4 | ||
| rail dimensions - pitch f - mm | 40 | ||
| basic load rating - radial - dynamic rating c - kn | 5,53 |
| Baugröße | 17 | ||
| outer dimensions - heightm - mm | 17 | ||
| outer dimensions - lengthl - mm | 50,80 | ||
| block dimensions - c - mm | 26 | ||
| block dimensions - h - mm | 3,30 | ||
| rail dimensions - d1xd2xh - mm | 4.5x7.5x5.3 | ||
| basic load rating - radial - static rating c0 - kn | 9,10 |
