| Pneumatischer Anschluss | M5 | ||
| Alternativanschlüsse | M5 | ||
| Produktgewicht | 1.500 g | ||
| Theoretische Kraft bei 0,6 MPa (6 bar, 87 psi), Rücklauf | 180 N | ||
| Max. torque at finger Mx static | 9 Nm | ||
| Max. force on finger Fz static | 180 N | ||
| Korrosionsbeständigkeitsklasse KBK | 2 - Moderate corrosion stress | ||
| Betriebsmedium | Compressed air to ISO 8573-1:2010 [7:4:4] | ||
| Cycle time | 796,1 ms | ||

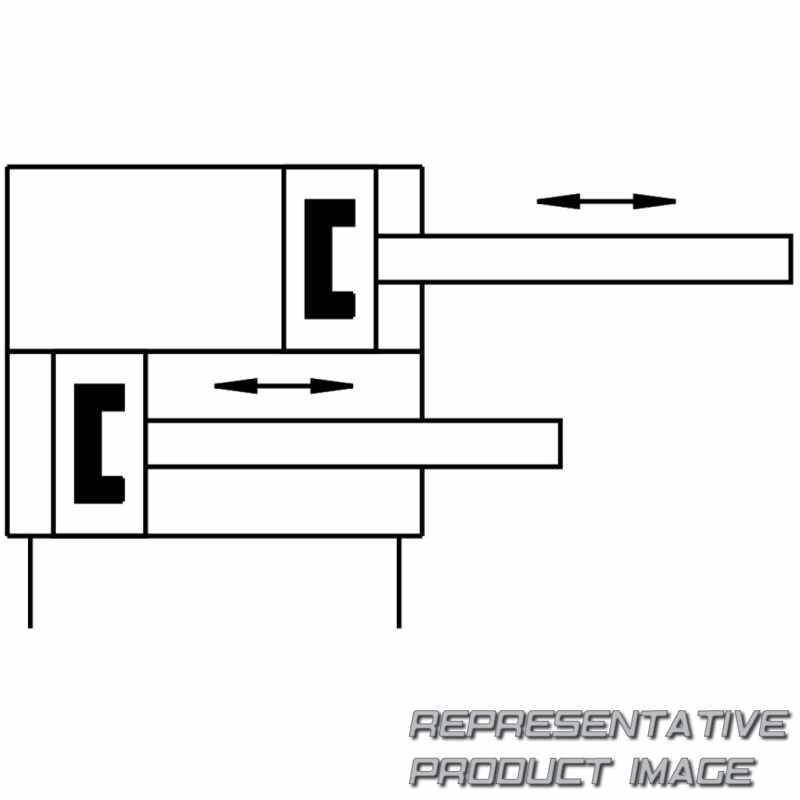

| Symbol | 00991914 | ||
| Positionserkennung | Via proximity switch | ||
| Funktionsweise | Double-acting | ||
| Dämpfung | No cushioning | ||
| Max. angular gripper jaw backlash az | 0,12 deg | ||
| Max. angular gripper jaw backlash ax | 0,04 deg | ||
| Max. stem backlash Sx | 0,05 mm | ||
| Kolben-Ø | 22 mm |
| Befestigungsart | Via female thread and centring sleeve Via through-hole and centring sleeve Either: | ||
| Max. Masse pro externem Greiffinger | 395 g | ||
| Theoretische Kraft bei 0,6 MPa (6 bar, 87 psi), Vorlauf | 225 N | ||
| Max. torque at finger My static | 9 Nm | ||
| Max. torque Mr at finger, static | 9 Nm | ||
| Umgebungstemperatur | 5 °C ... 60 °C | ||
| Hinweis zum Betriebs-/Steuermedium | Lubricated operation possible (in which case lubricated operation will always be required) | ||
| Betriebsdruck | 3 bar ... 8 bar | ||
| Verdrehsicherung/Führung | Square guide | ||
| Half pulse | 398,1 ms | ||
| Konstruktiver Aufbau | Twin piston Piston rod Locking mechanism Non-rotating | ||
| Einbaulage | optional | ||
| Mounting of external fingers | Through-hole | ||
| Max. angular gripper jaw backlash ay | 0,07 deg | ||
| Max. stem backlash Sz | 0,03 mm | ||
| Max. Austauschgenauigkeit | 0,3 mm | ||
| Hub | 60 mm |
