| Gewicht | 33.58041 lb | ||
| accessories | power cable, foot for fixing, splashproof cover | ||
| electrical system - alarm | refer to alarm function. | ||
| electrical system - overcurrent protector | 10 a | ||
| facility water system - required flow rate note 3) | stainless steel 304 | ||
| facility water system - temperature range | 0.8 to 1.9 gpm (3 to 7 l/min) | ||
| circulating fluid system - port size | ppe, pp glass 10%, alumina ceramics, carbon, epdm, stainless steel 303, stainless steel 304, pe, pp, nbr | ||
| circulating fluid system - pump capacity | refer to performance chart. | ||
| circulating fluid system - heating capacity | 770 w note 1) | ||
| circulating fluid system - operating temp. range | 50 to 140f (10 to 60c) (no condensation) | ||
| ambient temperature/humidity | 50 to 95f (10 to 35c), 35 to 80%rh (no condensation) | ||
| radiating method | water-cooled | ||

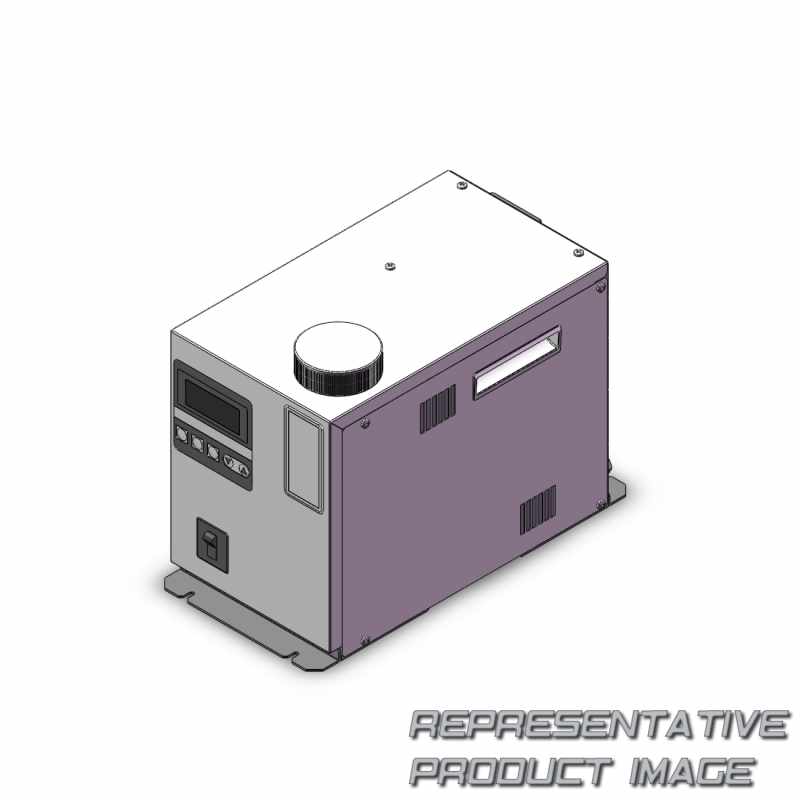

| Baureihe | hec003-w5a |
| safety standards | ce marking, ul (nrtl) standards, semi | ||
| electrical system - communications | rs-485 | ||
| electrical system - current consumption | 5.5 a (100 vac) to 2.5 a (240 vac) | ||
| electrical system - power supply | single-phase 100 to 240 vac ?10%, 50/60 hz | ||
| facility water system - pressure range | in/out: rc3/8 | ||
| facility water system - wetted parts material | within 145 psi (1 mpa) | ||
| circulating fluid system - tank capacity | approx. 0.32 gal (1.2 l) | ||
| circulating fluid system - temperature stability note 2) | ?0.018 to 0.054f (?0.01 to 0.03c) | ||
| circulating fluid system - cooling capacity | 320 w note 1) | ||
| circulating fluid system - circulating fluid | clear water, 20% ethylene glycol | ||
| control method | cooling/heating automatic shift pid control | ||
| cooling method | thermoelectric device (thermo-module) |
