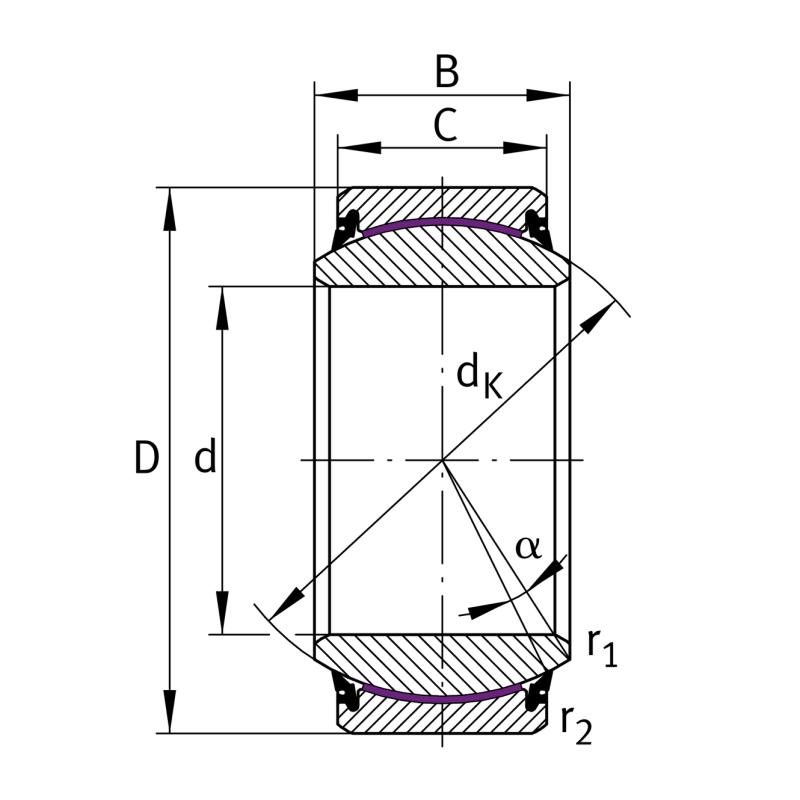

| Outside diameter bearing | D | 55 | mm |
| Width inner ring | B | 25 | mm |
| Basic dynamic load rating, radial | Cr | 212,000 |
| Bore diameter bearing | d | 35 | mm |
| Width Outer ring | C | 20 | mm |
| Basic static load rating, radial | C0r | 353,000 |
| Edge Spacing | r1smin | 1 | mm |
| Connection measure Inner ring | da max | 39,80 | mm |
| Ball diameter | dK | 47 | mm |
| Radialluft | Gr | 0 - 0,05 | |
| Outside diameter, lower tolerance | Do UT | -0,01 | mm |
| Tilt angle | α | 6 | ° |
| Bore diameter bearing, lower tolerance | dUT | -0,01 | mm |
| Width inner ring, lower tolerance | BUT | -0,12 | mm |
| Hersteller | Teilenummer |
|---|---|
| Askubal | GE35-D2RS |
| Deutsche Kugellagerfabriken | ZPW35 |
| SKF | GE35DC |
| Fiberglide GmbH (D) | GE35DW |
| SKF | GE35CS-2Z |
| SKF | GE35-TE-2RS (SKF) |
| RBC | MB35-FSS |
| Hung | GE35HW-A |
| IKO | GE35EC-2RS (IKO) |
