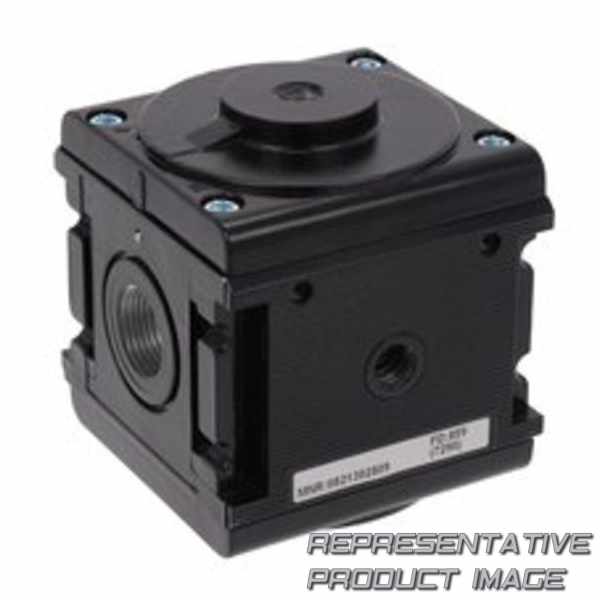

AVENTICS G653APBP5GA00HA

Name: G653APBP5GA00HA AVENTICS
Brand: AVENTICS
SKU: 815877-de-eur
Price: 313.71 EUR
Availability: InStock

313,71 €

verfügbar mit 3 bis 7 Tagen Lieferzeit nach United States

Technische Daten

max. Druck	12 bar
Dichtung	nitrile butadiene rubber

Gewicht	1,31Kg

material condensate drain		brass
material front plate		polyamide
Gehäusematerial		aluminum
medium temperature note		extended temperature range min./max. (optional) -40 °c ... 80 °c
Hysterese		0,4 bar
regulation range max.		10 bar
max. ambient temperature		50 °c
working pressure max		12 bar
Kondensatablass		fully automatic, open without pressure
nominal flow qn		8900 l/min
reservoir		reservoir polycarbonate

material filter insert		sintered bronze
seal material		nitrile butadiene rubber
Gewicht		1.31 kg
Medium		compressed air, neutral gases
Typ		can be assembled into blocks
regulation range min.		0.5 bar
min. ambient temperature		-20 °c
working pressure min.		0 bar
filter porosity		5 µm
port		g 3/4
parts		filter pressure regulator
