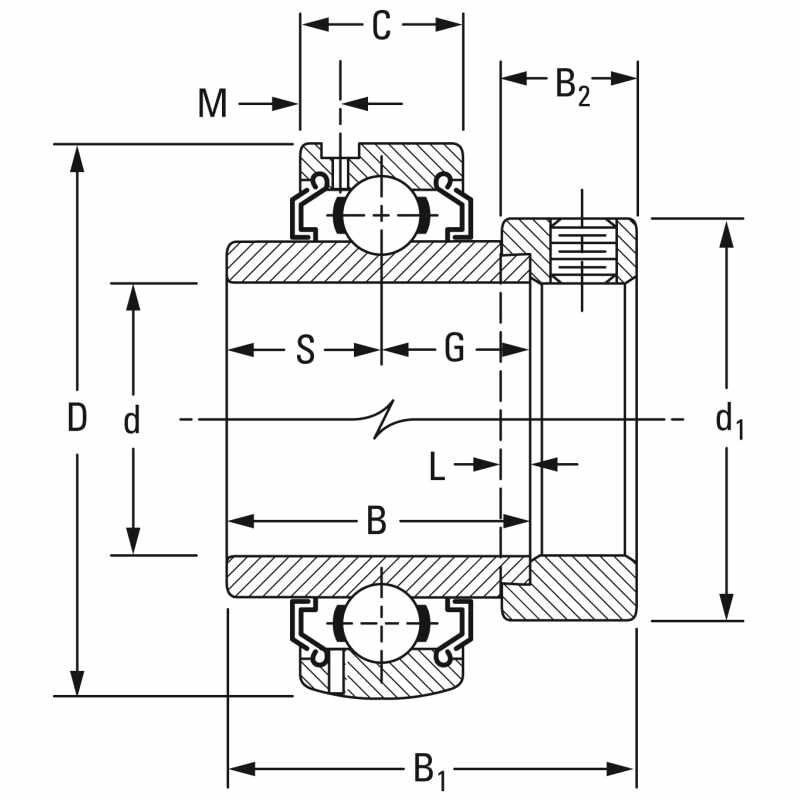

| Outside Diameter D | 62 | mm | |
| Outside Ring Width C | 18 | mm | |
| Center of Bearing from End S | 18,30 | mm | |
| Number of Set Screws | 2 | ||
| Abmessung d1 | 44,40 | mm | |
| Abmessung B1 | 48,40 | mm |
| Inner Ring Width B | 36,51 | mm | |
| Radius r | 0,60 | mm | |
| Set Screw Size | 5/16-18 | ||
| Angle between Set Screws | 90 º | ||
| Abmessung M | 3,96 | mm | |
| Dimension B2 | 15,90 | mm |
| Manufacturing Part Number | G1103KLL + COL | ||
| Bore Type | Cylindrical bore | ||
| Material | Bearing Steel | ||
| O.D. Type | Cylindrical OD | ||
| Sub Series | G1…KLL | ||
| Gewicht | 0,20 | Kg |
| Shaft Size d | 1 3/16 in | ||
| Bearing Type | Ball Bearing | ||
| Schmierausführung | Relubricatable | ||
| Baureihe | Industrial | ||
| Seal Type | Labyrinth Seal |
