| Befestigungsart | With through-hole | ||
| Actuating force | 31,5 N | ||
| Betriebsmedium | Compressed air to ISO 8573-1:2010 [7:4:4] | ||
| Strömungsrichtung | Non-reversible | ||
| Einbaulage | optional | ||
| Rückstellart | Mechanical spring | ||
| Betriebsdruck | -0,95 bar ... 10 bar | ||
| Standard nominal flow rate | 550 l/min | ||
| Ventilfunktion | 3/2 double solenoid | ||
| Werkstoff Dichtungen | NBR | ||
| Pneumatischer Anschluss 2 | G1/4 |
| Produktgewicht | 610 g | ||
| Umgebungstemperatur | -10 °C ... 60 °C | ||

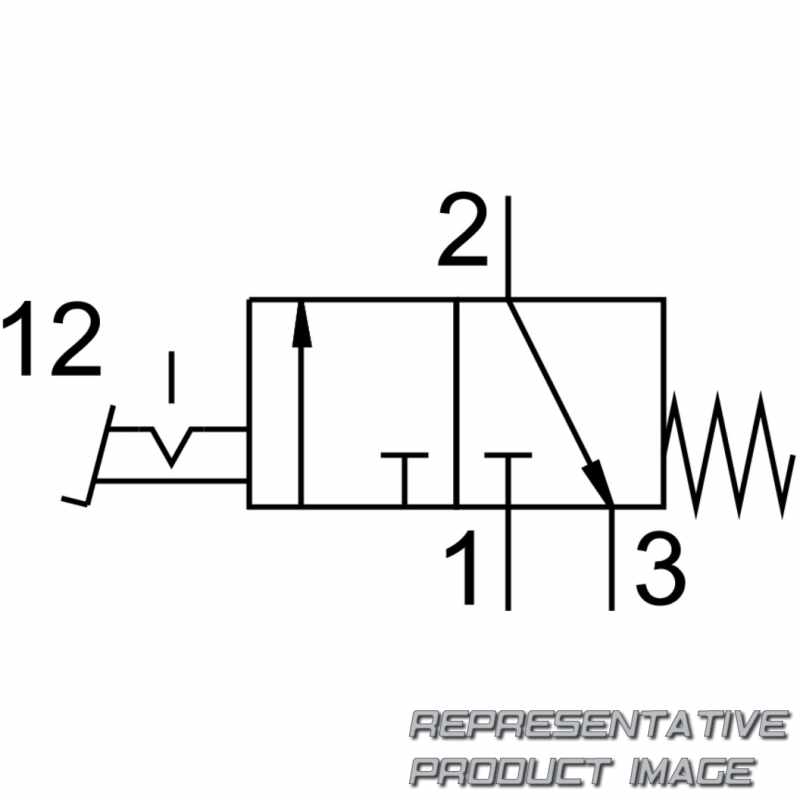

| Symbol | 00991275 | ||
| Steuerart | Direct | ||
| Nennweite | 7 mm | ||
| Konstruktiver Aufbau | Poppet seat | ||
| Pneumatischer Arbeitsanschluss | G1/4 | ||
| Betätigungsart | Manual | ||
| Werkstoff Gehäuse | Die-cast aluminium | ||
| Pneumatischer Anschluss 3 | G1/4 | ||
| Pneumatischer Anschluss 1 | G1/4 |
