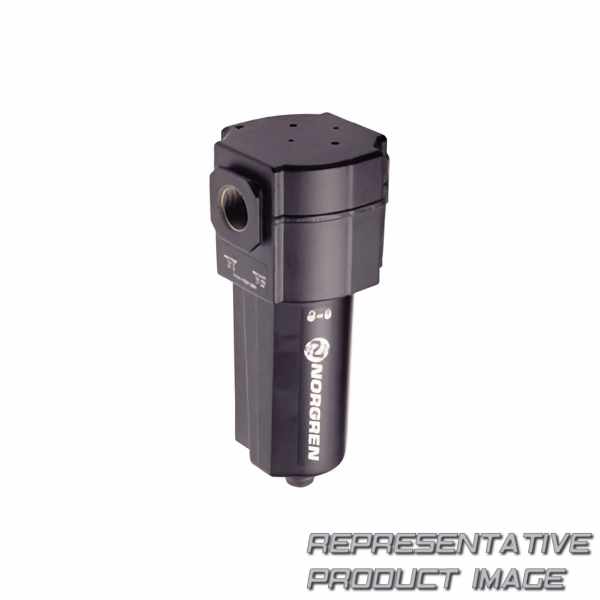

NORGREN F74V-4GN-EMA excelon oil vapour removal filter

Name: F74V-4GN-EMA NORGREN
Brand: NORGREN
SKU: 777886-de-eur
Price: 662.94 EUR
Availability: InStock

662,94 €

1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

max. Druck	17 bar
Breite	80mm

Gewicht	1,14Kg

body		aluminium
bowl type		metal
Ablauftyp		closed bowl
eu country of origin		mexico
flow flow dm3sec		13 dm3/sec
flow imperial flow scfm		27 scfm
maximum inlet pressure pressure bar		17 bar
mil spec		available on request
operating temperature temperature celsius min to max range		-34 ... 65 °c
length length millimetre		185 mm
width length millimetre		80 mm
Anschlussgröße		g1/2
range		f74v
retrieve price		true

bowl		diecast aluminium
data performance shelf life		10 years
elastomers		neoprene
filter element		activated carbon and polycarbonate
flow flow dm3secbar		13 dm3/(s.bar) dm3/sec
maximum inlet pressure imperial pressure psi		247 psig
Medium		compressed air
operating temperature f temperature fahrenheit min to max range		-29 ... 150 °f
height length millimetre		74 mm
weight weight kilogram		1.14 kg
partially replaced part		f84v-4gn-ema
product style		modular
replaced flag		yes
Baureihe		excelon
