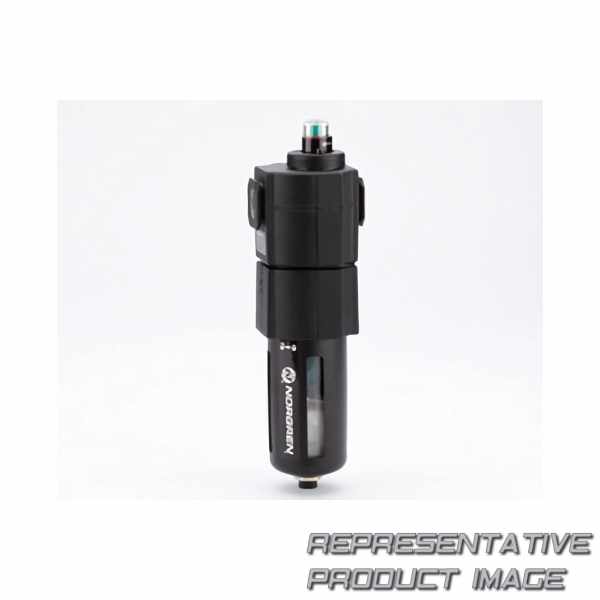

NORGREN F74H-4GD-AP0 excelon high flow oil removal filter

Name: F74H-4GD-AP0 NORGREN
Brand: NORGREN
SKU: 786404-de-eur
Price: 290 EUR
Availability: InStock

290 €

verfügbar mit 7 bis 15 Tagen Lieferzeit nach United States

Technische Daten

max. Druck	10 bar
Breite	80mm

Gewicht	1,11Kg

body		aluminium
bowl type		polymer with guard
Ablauftyp		automatic drain
eu country of origin		mexico
flow flow dm3sec		28 dm3/sec
flow imperial flow scfm		59.3 scfm
maximum inlet pressure pressure bar		10 bar
mil spec		available on request
operating temperature temperature celsius min to max range		-34 ... 50 °c
length length millimetre		274 mm
width length millimetre		80 mm
particle removal particlesize micron		0.01 μm
product style		modular
replaced flag		yes
Baureihe		excelon

bowl		polycarbonate
data performance shelf life		10 years
elastomers		neoprene
filter element m particlesize micron		0.01 μm
flow flow dm3secbar		28 dm3/(s.bar) dm3/sec
maximum inlet pressure imperial pressure psi		145 psig
Medium		compressed air
operating temperature f temperature fahrenheit min to max range		-29 ... 122 °f
height length millimetre		74 mm
weight weight kilogram		1.11 kg
partially replaced part		f84c-4gd-ap0
Anschlussgröße		g1/2
range		f74h
retrieve price		true
service life indicator		with
