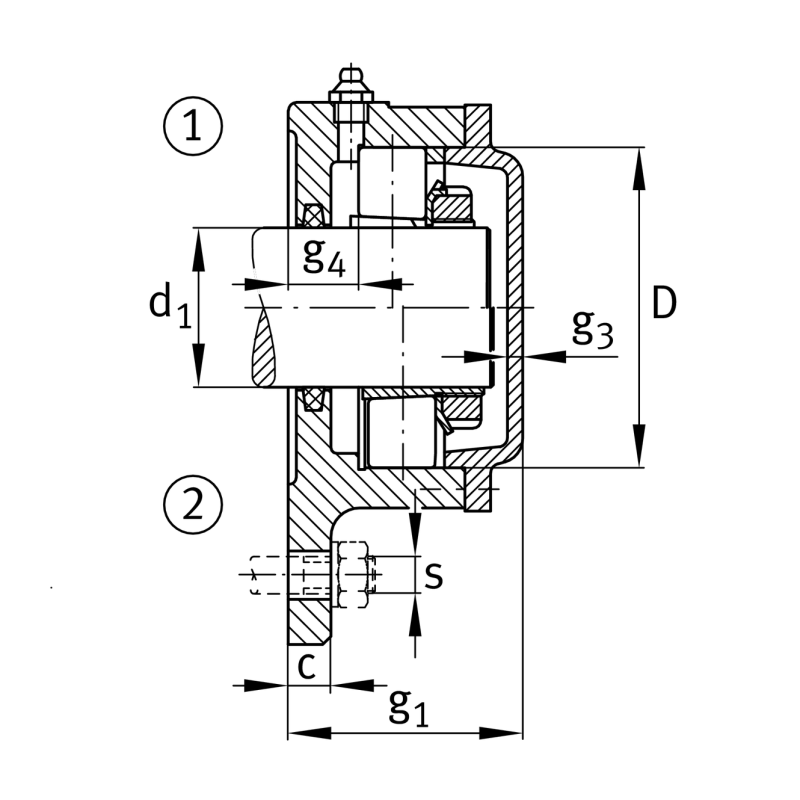

| Shaft diameter | d | 100 | mm |
| Height flange | h1 | 270 | mm |
| number of fastening holes | 4 |

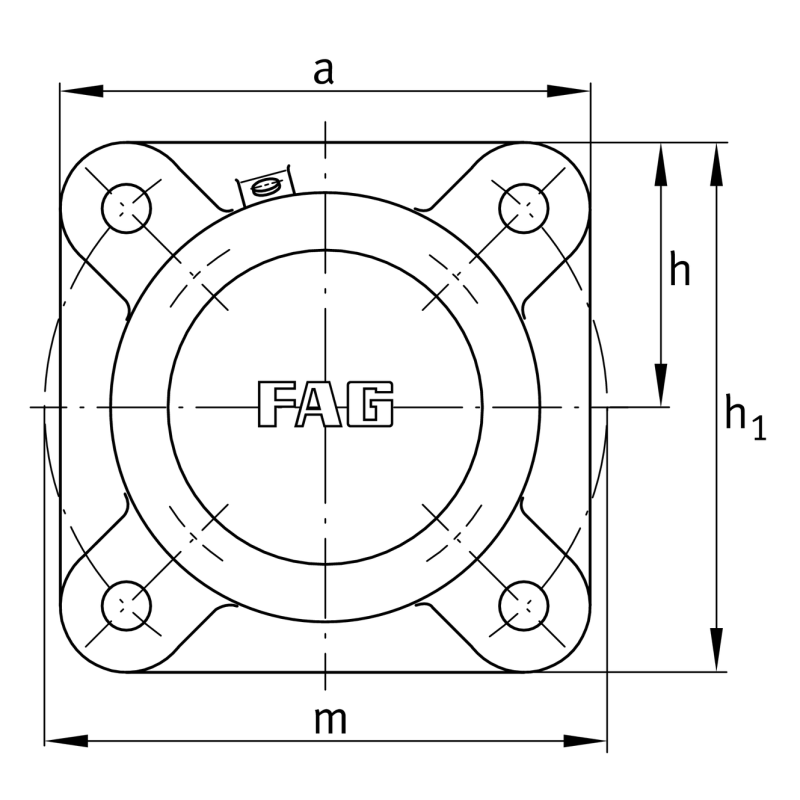

| Flange width | a | 270 | mm |
| Total width with cover | g2 | 128 | mm |
| connection thread lubrication | M10x1 | ||
| Outside diameter bearing | D | 200 | mm |
| Distance shaft axis | h | 135 | mm |
| Size of fixing screws | s | M20 |
| Thickness of flange | c | 30 | mm |
| distance flange to bearing seat | g4 | 30 | mm |
| pich circle diameter fixing holes | m | 310 | mm |
| Hersteller | Teilenummer |
|---|---|
| SKF | FNL522 A (SKF) |
