| connection thread lubrication | M10x1 | ||

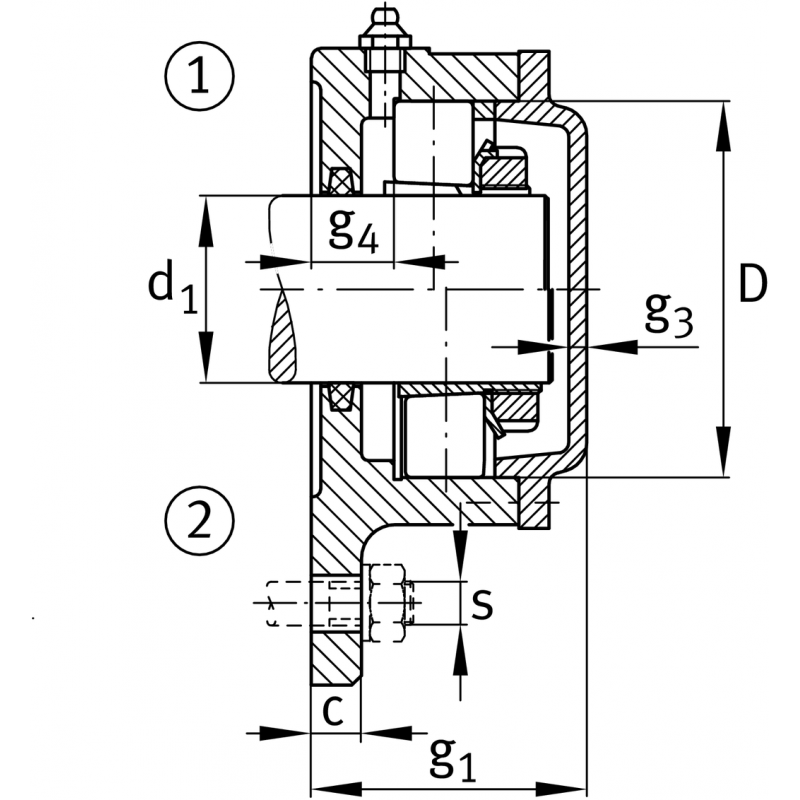

| Outside diameter bearing | D | 130 | mm |
| Distance shaft axis | h | 95 | mm |
| Size of fixing screws | s | M16 |
| Thickness of flange | c | 25 | mm |
| distance flange to bearing seat | g4 | 30 | mm |
| pich circle diameter fixing holes | m | 215 | mm |
| Shaft diameter | d | 65 | mm |
| Height flange | h1 | 190 | mm |
| number of fastening holes | 4 |
| Flange width | a | 190 | mm |
| Total width with cover | g2 | 97 | mm |
| Hersteller | Teilenummer |
|---|---|
| SKF | FNL515 A (SKF) |
