| Recommended tightening torque for set screw | 3,7 N-m | ||
| Operating temperature min. | -20 °C | ||
| C - Dynamic load rating | 12,8 kN | ||

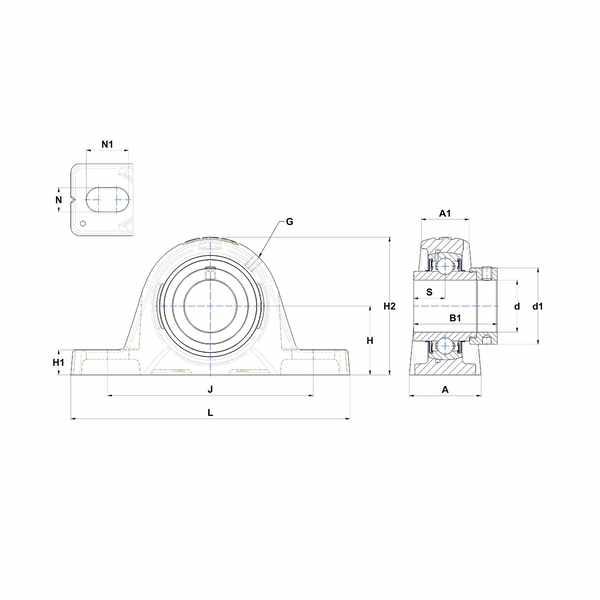

| N1 - Mounting hole length | 17 mm | ||
| L - Housing length | 126,5 mm | ||
| H2 - Housing height | 63,7 mm | ||
| H - Distance mounting base to centerline spheric. seating diam. | 31,8 mm | ||
| d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve | 32,4 mm | ||
| A - Housing width | 32 mm |
| Operating temperature max. | 100 °C | ||
| C0 - Static load rating | 6,65 kN | ||
| S - Dist. cent. of raceway to face IR on side opp. lock. device | 17 mm | ||
| N - Mounting hole dimension | 11 mm | ||
| J - Mounting holes distance | 94,5 mm | ||
| H1 - Housing foot height | 12,5 mm | ||
| G - Grease fitting | M6x1 | ||
| A1 - Housing top width | 22,5 mm | ||
| Brand | SNR |
