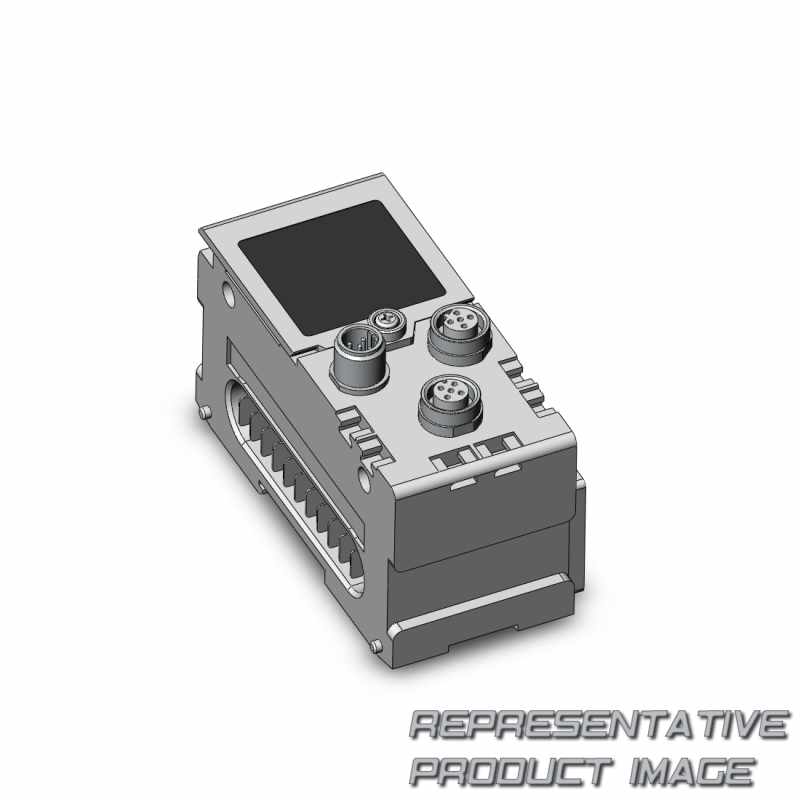

| Baureihe | ex600-sdn1a | ||
| communication - device type | group 2 only server | ||
| communication - configuration file | eds file | ||
| communication - applicable messages | duplicate mac id check message group 2 only unconnected explicit messageexplicit message (group 2)poll i/o message (predefined m/s connection set) | ||
| internal current consumption (power supply for control/input) | 55 ma or less | ||
| output - number of outputs | 32 outputs (8/16/24/32 outputs selectable) | ||
| output - power supply | 24 vdc, 2 a | ||
| output - protection | short-circuit protection | ||
| Standards | ce marking, ul (csa), rohs recognition |
| communication - protocol | devicenet: volume 1 (edition 2.1), volume 3 (edition 1.1) | ||
| communication - communication speed | 125/250/500 kbps | ||
| communication - i/o occupation area (inputs/outputs) | max. (512 inputs/512 outputs) | ||
| devicenet power supply | 11 to 25 vdc | ||
| output - output type | pnp (negative common) | ||
| output - load | solenoid valve with surge voltage suppressor 24 vdc, 1.5 w or less (smc) | ||
| output - fail safe | hold/clear/forced power on | ||
| enclosure | ip67 (manifold assembly) | ||
| Gewicht | .92076 lb |
