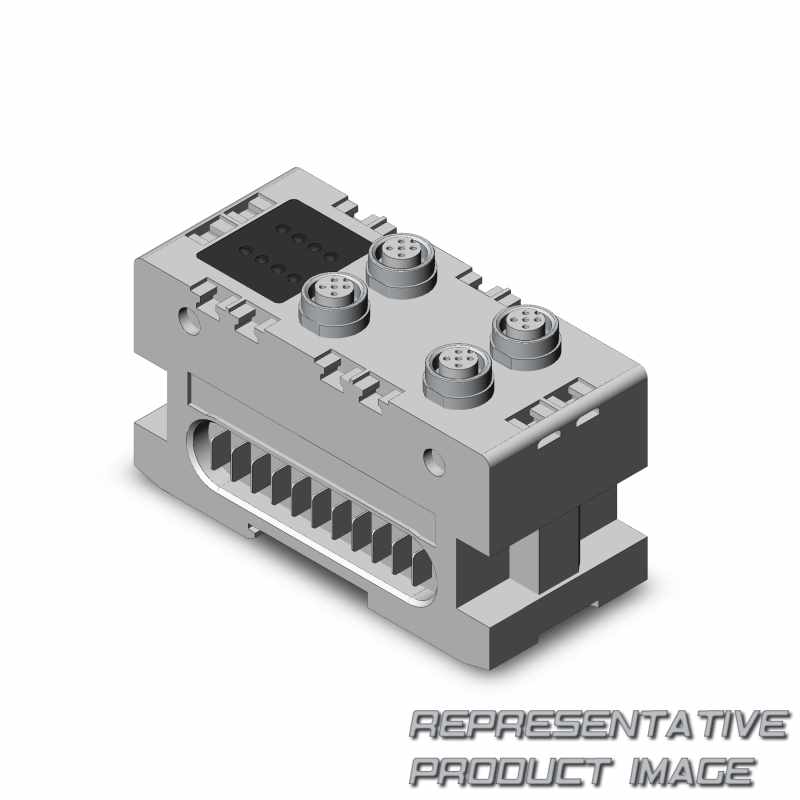

| Baureihe | ex600-dxpb | ||
| input - input connector | m12 (5-pin) socket note 1) | ||
| input - supplied voltage | 24 vdc | ||
| input - protection | short-circuit protection | ||
| input - on voltage | 17 v or more (at npn input, between the pin for input terminal and supplied voltage of +24 v) (at pnp input, between the pin for input terminal and supplied voltage of 0 v) | ||
| input - open circuit detection current | 3 wires | ||
| enclosure | ip67 (manifold assembly) | ||
| Gewicht | .69313 lb |
| input - input type | pnp | ||
| input - number of inputs | 8 inputs (2 inputs/connector) | ||
| input - max. supplied current | 0.5 a/connector2 a/unit | ||
| input - input current (at 24 vdc) | 9 ma or less | ||
| input - off voltage | 5 v or less (at npn input, between the pin for input terminal and supplied voltage of +24 v) (at pnp input, between the pin for input terminal and supplied voltage of 0 v) | ||
| Stromaufnahme | 50 ma or less | ||
| Standards | ce marking, ul (csa), rohs recognition |
