ESNU Festo

FESTO ESNU

77 Produkte

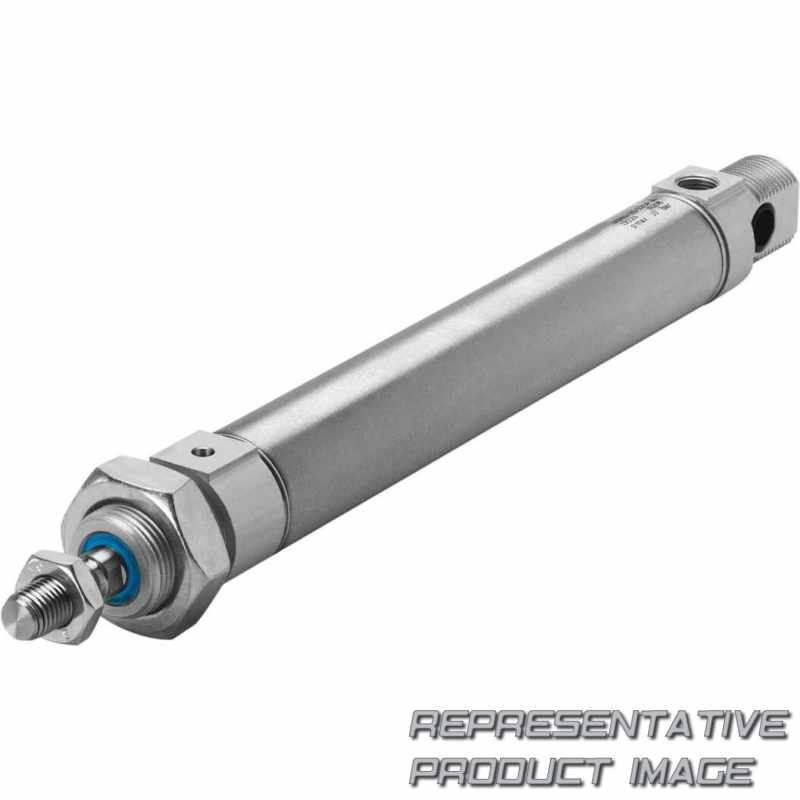

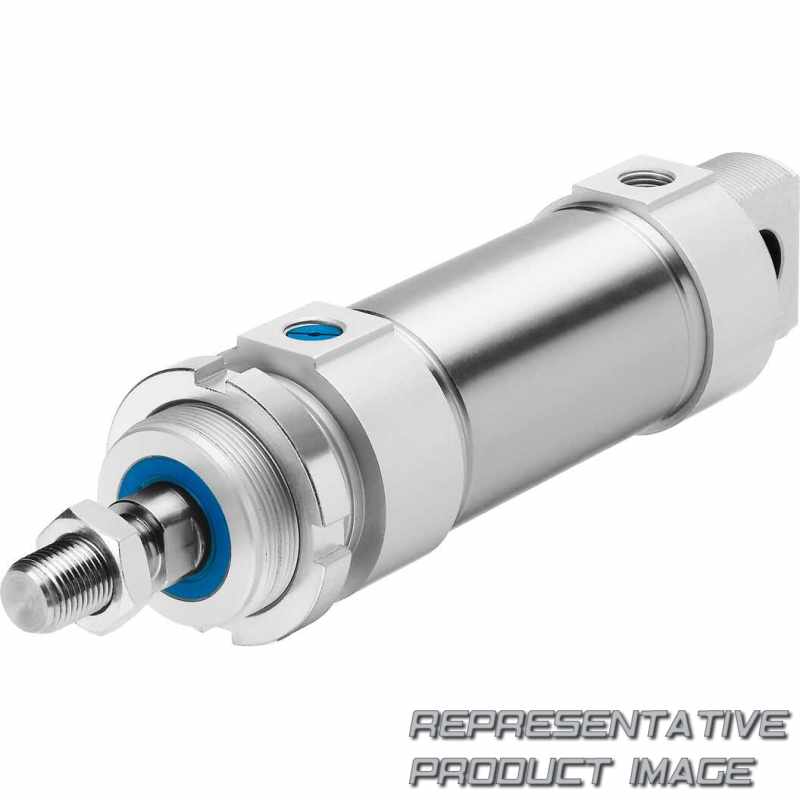

Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO ESNU – Round cylinder, single-acting, pressing, based on ISO 6432. Finden Sie das passende Produkt durch Filtern mit Piston diameter [mm], Stroke [mm], End cap und Piston rod thread type.

ESNU Typcodes

Serie	Katalognummernformat	Beschreibung
ESNU	ESNU- - -P	Round cylinder, single-acting, pressing, based on ISO 6432

Typcode zur Katalognummer ESNU, ESNU- - -P

001	Series
ESNU	Round cylinder, single-acting, pressing, based on ISO 6432
002	Piston diameter [mm]
8	8
10	10
12	12
16	16
20	20
25	25
32	32
40	40
50	50
63	63
003	Stroke [mm]
...	1 ... 50
004	Cushioning
P	Elastic cushioning rings/plates on both sides
005	Position sensing
	For proximity sensor
A	For proximity sensor
006	End cap

007	Piston rod thread extension
	Standard
MA	Axial supply port
	None
K2	1 ... 35 mm
008	K6 - Shortened male piston rod thread
	None
K6	1 ... 10 mm
009	Piston rod thread type
	Male thread
K3	Female thread
010	Custom thread
	None
“M10”K5	M10
“M12”K5	M12
“M16”K5	M16
011	Piston rod extension
	None
...K8	1 ... 50 mm

Produkte

Zeige 1 Produkt bis 12 von insgesamt 77

Katalognummer	Teilenummer	Piston diameter [mm]	Stroke [mm]	End cap
ESNU-8-10-P-A	19254	8	10	Standard
ESNU-8-15-P-A-MA	193996	8	15	Axial supply port
ESNU-8-20-P-A-MA	193996	8	20	Axial supply port
ESNU-8-25-P-A	19255	8	25	Standard
ESNU-8-25-P-A-MA	193996	8	25	Axial supply port
ESNU-8-50-P-A	19256	8	50	Standard
ESNU-10-10-P-A	19257	10	10	Standard
ESNU-10-12-P-A-MQ-SA	559832	10	12	Standard
ESNU-10-15-P-A	14118	10	15	Standard
ESNU-10-25-P-A	19258	10	25	Standard
ESNU-10-35-P-A	14118	10	35	Standard
ESNU-10-40-P-A	14118	10	40	Standard
