FESTO EPCC
78 Produkte

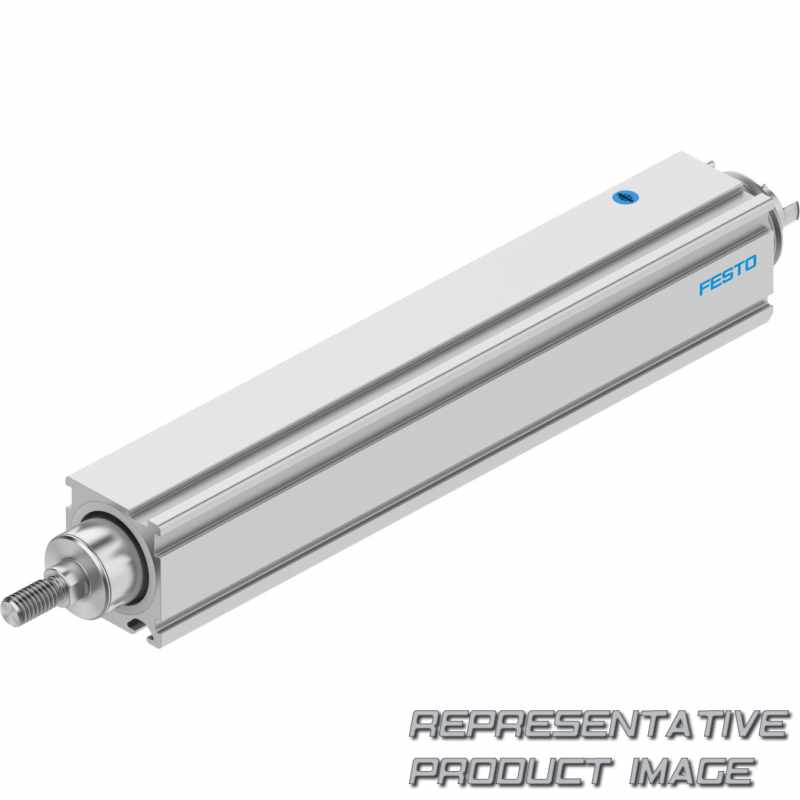

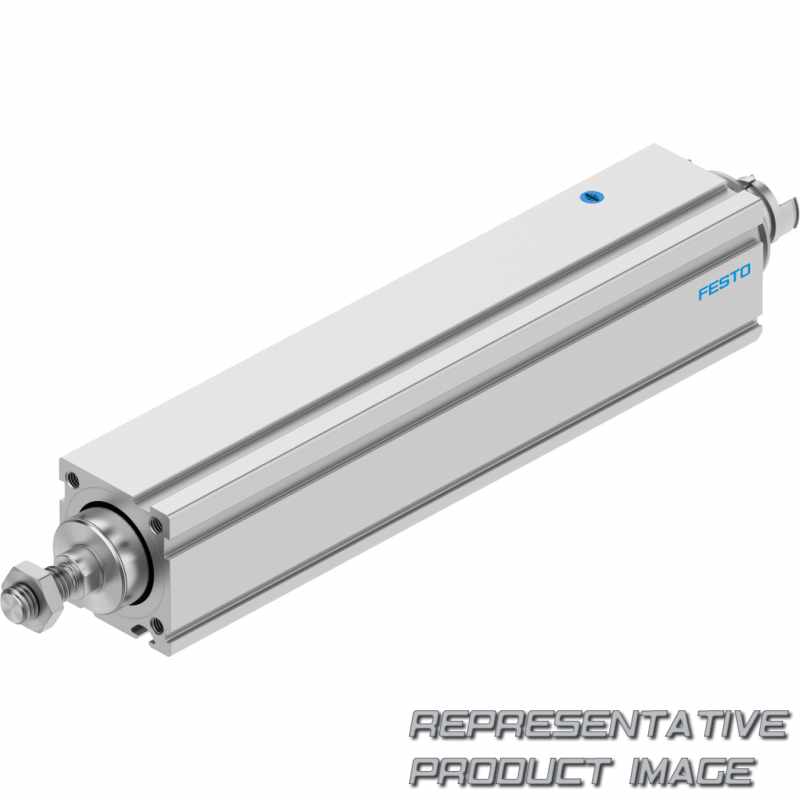

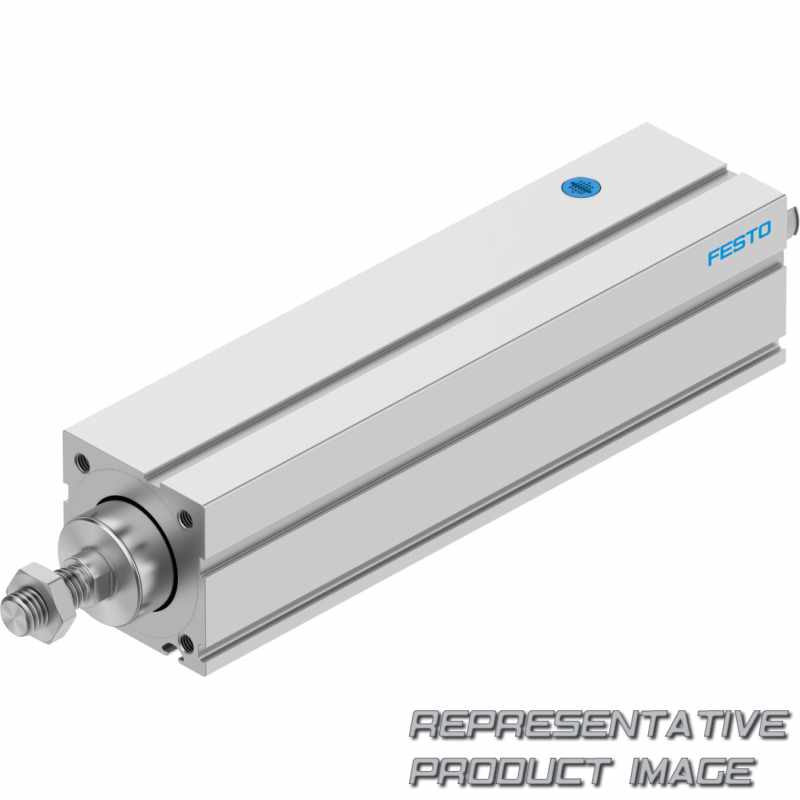

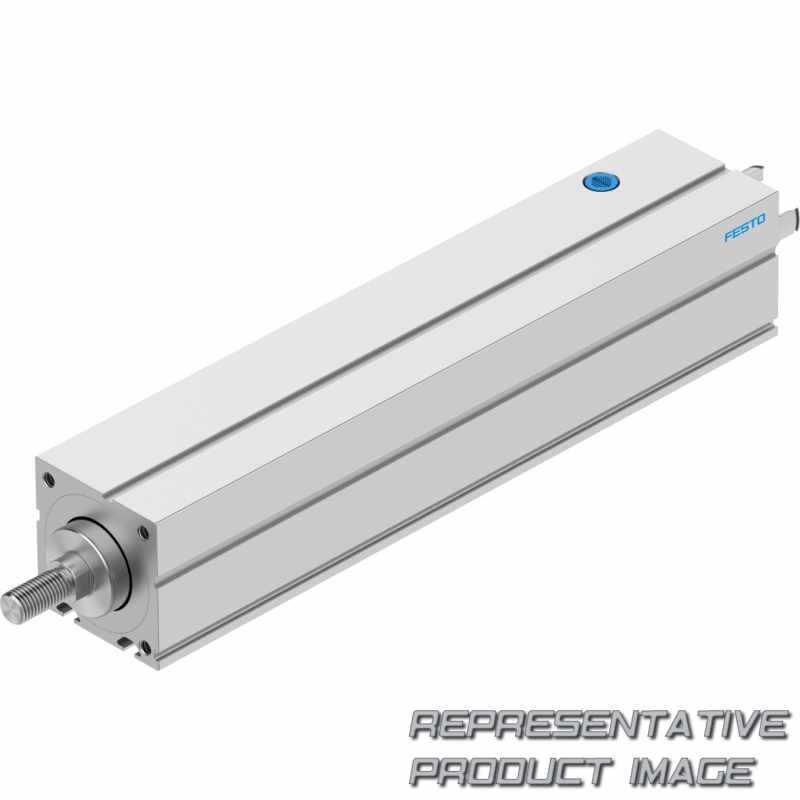

Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO EPCC – Electric cylinder. Finden Sie das passende Produkt durch Filtern mit Baugröße, Stroke [mm] und Spindle pitch.
EPCC Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| EPCC | EPCC-BS- - - -A | Electric cylinder |
Typcode zur Katalognummer EPCC,
EPCC-BS- - - -A
| 001 | Series |
|---|---|
| EPCC | Electric cylinder |
| 002 | Drive system |
| BS | Ball screw drive |
| 003 | Size |
| 25 | 25 |
| 32 | 32 |
| 45 | 45 |
| 60 | 60 |
| 004 | Stroke [mm] |
| 25 | 25 |
| 50 | 50 |
| 75 | 75 |
| 100 | 100 |
| 125 | 125 |
| 150 | 150 |
| 175 | 175 |
| 200 | 200 |
| 250 | 250 |
| 300 | 300 |
| 350 | 350 |
| 400 | 400 |
| 500 | 500 |
| 005 | Spindle pitch |
|---|---|
| 2P | 2 mm |
| 3P | 3 mm |
| 5P | 5 mm |
| 6P | 6 mm |
| 8P | 8 mm |
| 10P | 10 mm |
| 12P | 12 mm |
| 006 | Piston rod thread type |
| Male thread | |
| F | Female thread |
| 007 | Scraper variant |
| None | |
| A7 | Wiper |
| 008 | Piston rod extension |
| None | |
| ...E | 1 ... 100 mm |
| 009 | Position sensing |
| A | For proximity sensor |
| 010 | Guide unit |
| None | |
| KF | Recirculating ball bearing with two guide rods |
