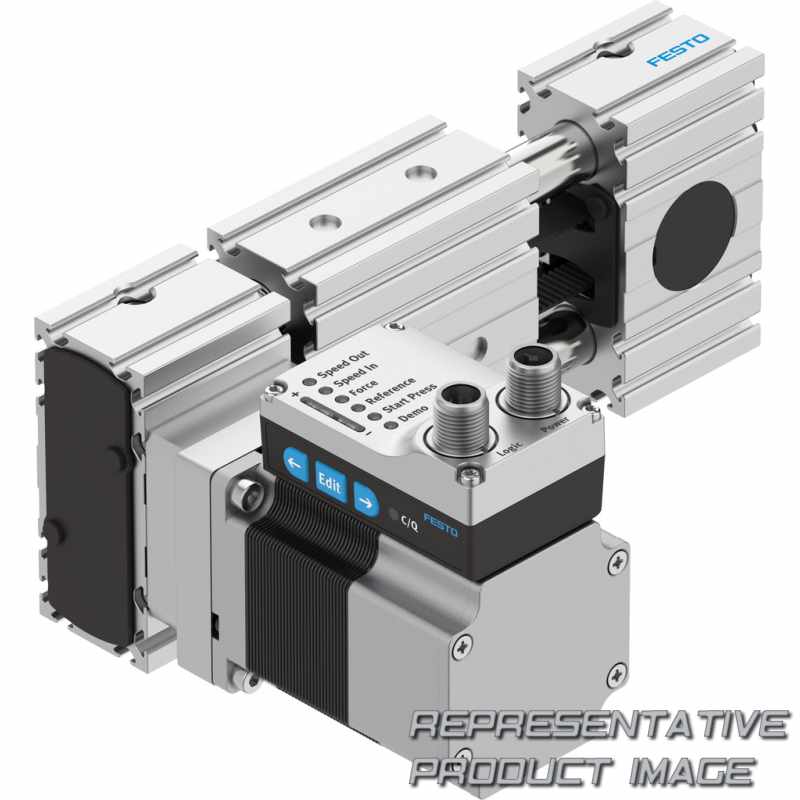

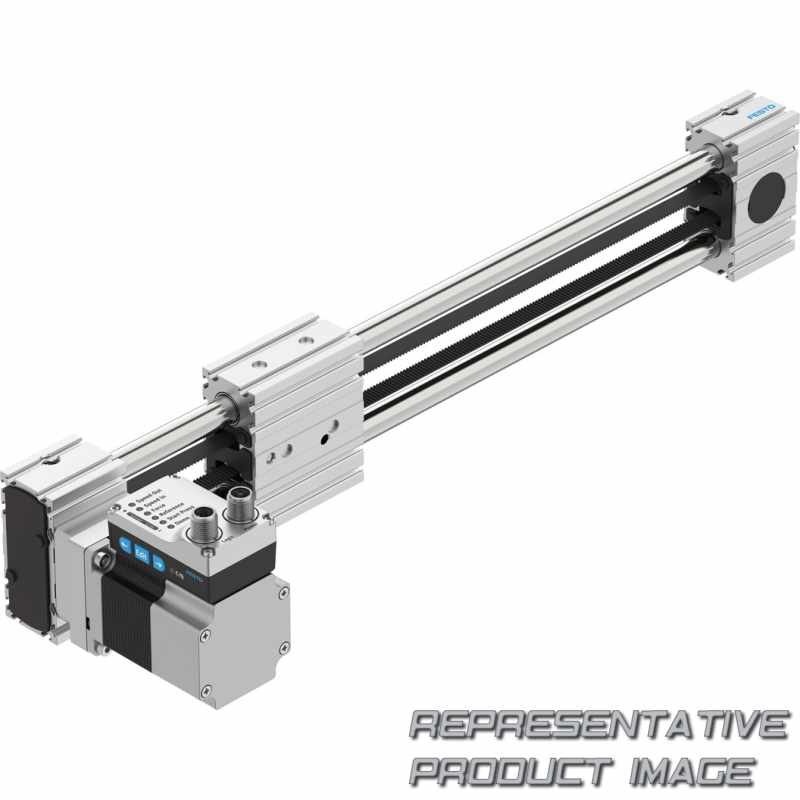

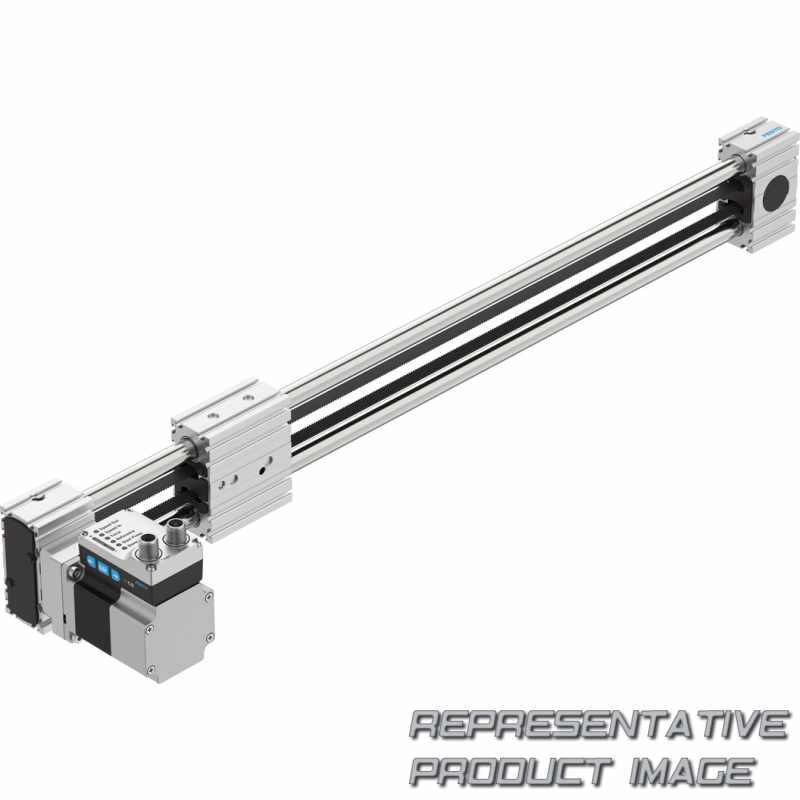

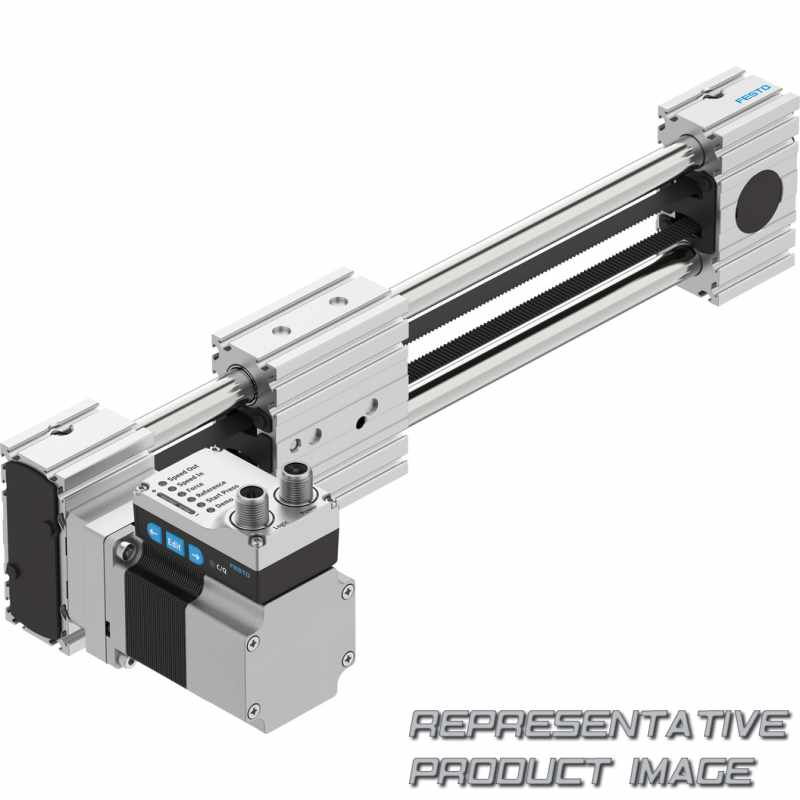

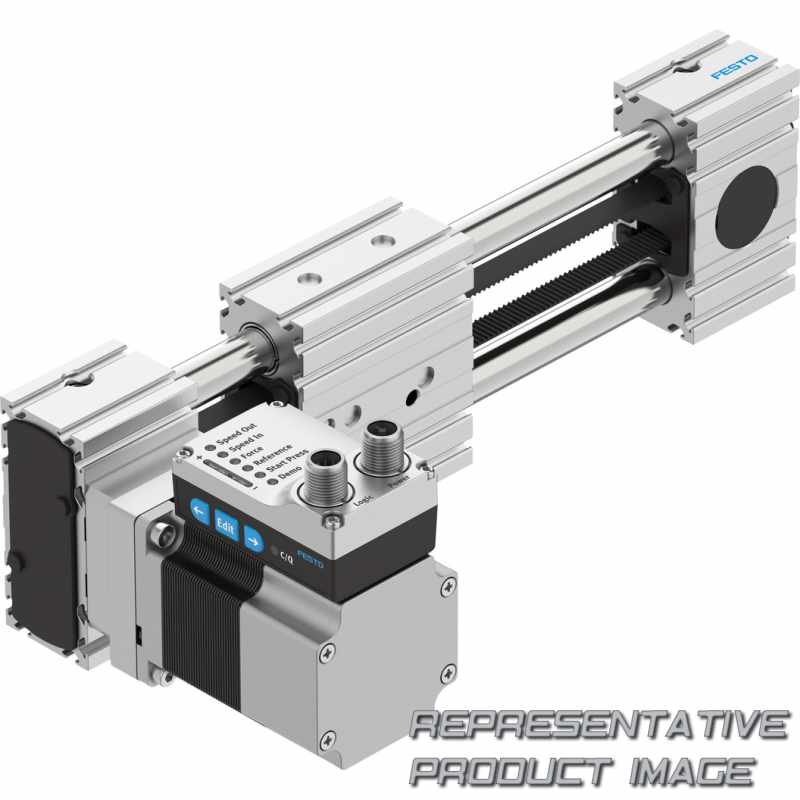

FESTO ELGE
6 Produkte
Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO ELGE – Gantry axis. Finden Sie das passende Produkt durch Filtern mit und Stroke [mm].
ELGE Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| ELGE | ELGE-TB--35- -0H-ST-M-H1- -AA- - | Gantry axis |
Typcode zur Katalognummer ELGE,
ELGE-TB--35- -0H-ST-M-H1- -AA- -
| 001 | Series |
|---|---|
| ELGE | Gantry axis |
| 002 | Drive system |
| TB | Toothed belt |
| 003 | Guide |
| Recirculating ball bearing guide | |
| 004 | Size |
| 35 | 35 |
| 005 | Stroke [mm] |
| 50 | 50 |
| 100 | 100 |
| 150 | 150 |
| 200 | 200 |
| 250 | 250 |
| 300 | 300 |
| 350 | 350 |
| 400 | 400 |
| 450 | 450 |
| 500 | 500 |
| 550 | 550 |
| 600 | 600 |
| 650 | 650 |
| 700 | 700 |
| 750 | 750 |
| 800 | 800 |
| 006 | Stroke reserve |
| 0H | None |
| 007 | Motor type |
| ST | Stepper motor ST |
| 008 | Controller |
| M | Integrated |
| 009 | Control panel |
| H1 | Integrated |
| 010 | Bus protocol/activation |
|---|---|
| PLK | PNP and IO-Link® |
| NLK | NPN and IO-Link® |
| 011 | End-position sensing |
| AA | With integrated end-position sensing |
| 012 | Cable outlet direction |
| AT | Top |
| AD | Underneath |
| AL | Left |
| AR | Right |
| 013 | Motor position |
| FR | Front right |
| FL | Front left |
| RR | Rear right |
| RL | Rear left |
| 014 | Profile mounting |
| None | |
| ...MA | 1 ... 2 units |
| 015 | Proximity sensor, inductive, slot 8, N/O contact, cable 7.5 m |
| Without | |
| ...SA | 1 ... 6 units |
| 016 | Proximity sensor, inductive, slot 8, N/C contact, cable 7.5 m |
| Without | |
| ...SB | 1 ... 6 units |
| 017 | Slot nut for mounting slot |
| Without | |
| ...NM | 1 ... 99 units |
| 018 | Electrical accessories |
| None | |
| L1 | Adapter for operation as IO-Link® device |
