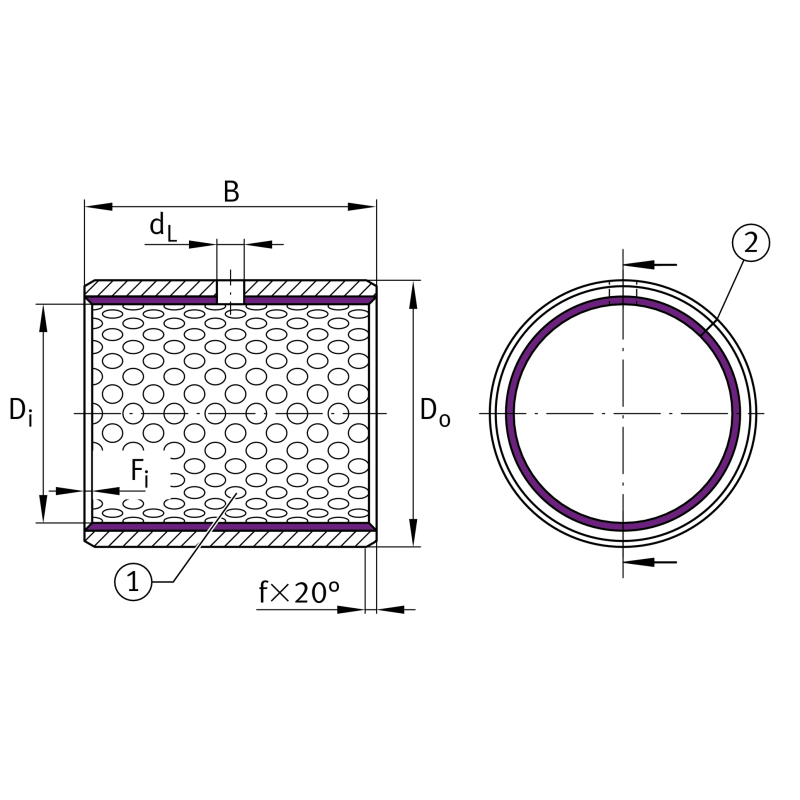

| Outer diameter | Do | 12 | mm |
| Basic dynamic load rating, radial | Cr | 10,500 |
| Breite | B | 15 | mm |
| Basic static load rating, radial | C0r | 21,000 |
| Inner diameter | Di | 10 | mm |
| Inner edge break, min. | Fi min | 0,10 | mm |
| Width, lower tolerance | BUT | -0,25 | mm |
| Outer chamfer, upper tolerance | fOT | 0,40 | mm |
| Inner edge break | Fi | 0,10 | mm |
| Outer chamfer | f | 0,60 | mm |
| Inner edge break, max. | Fi max | 0,60 | mm |
| Width, upper tolerance | BOT | 0,25 | mm |
| Outer chamfer, lower tolerance | fUT | -0,40 | mm |
