DSL Festo

FESTO DSL

363 Produkte

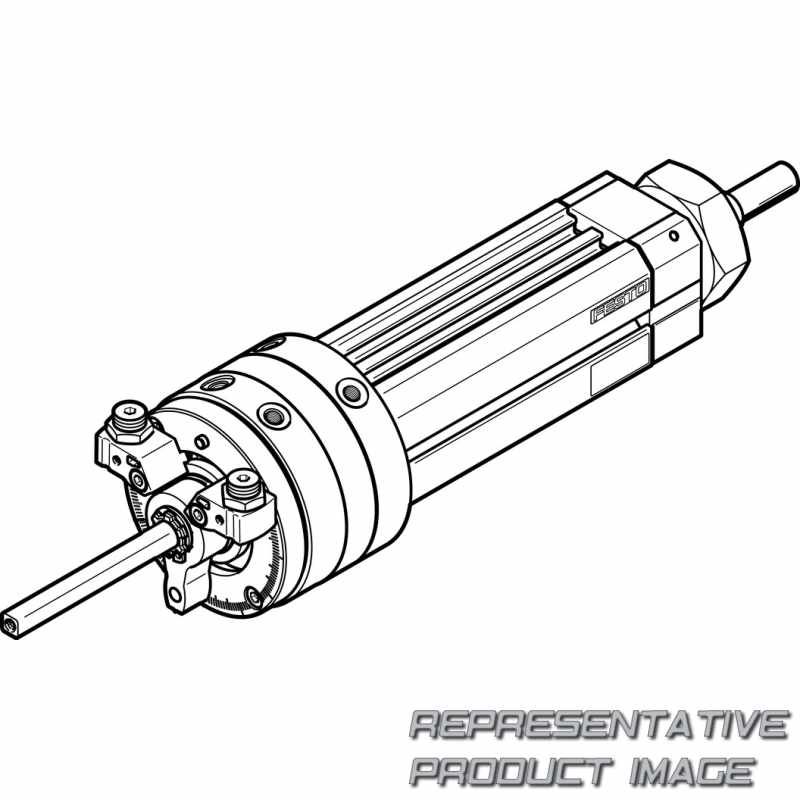

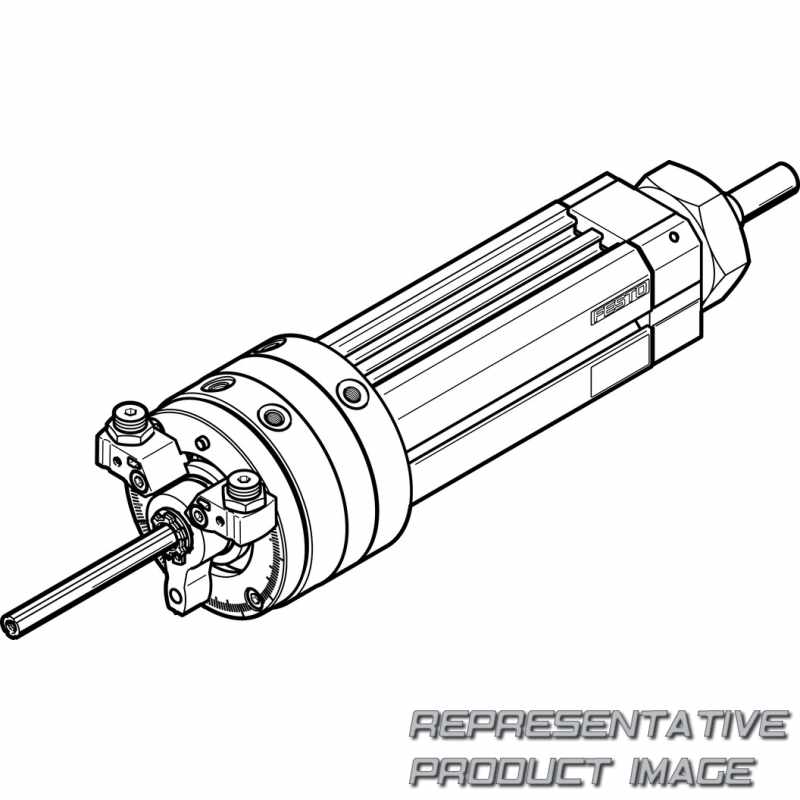

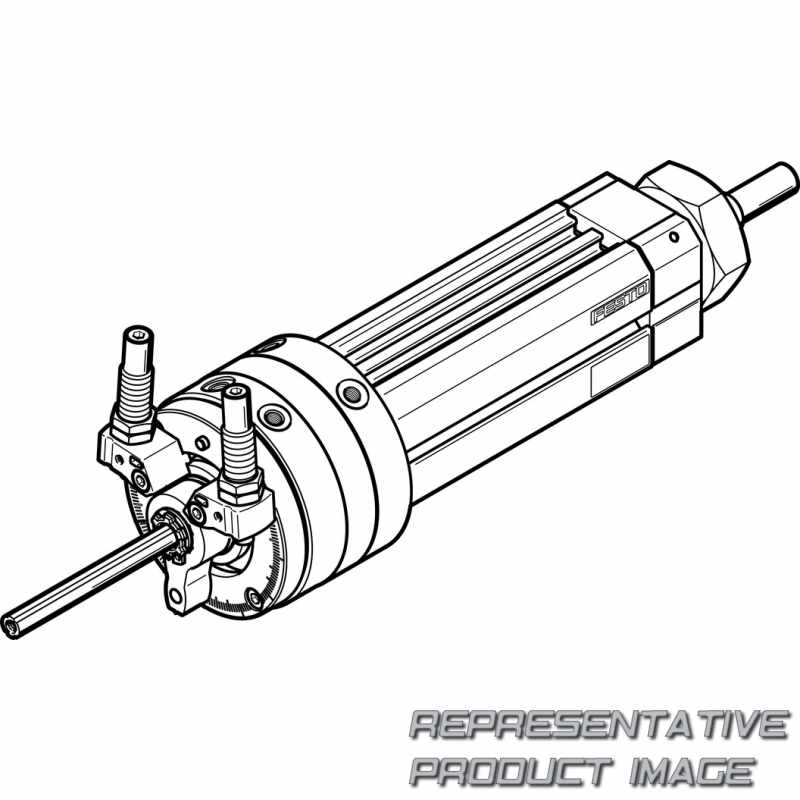

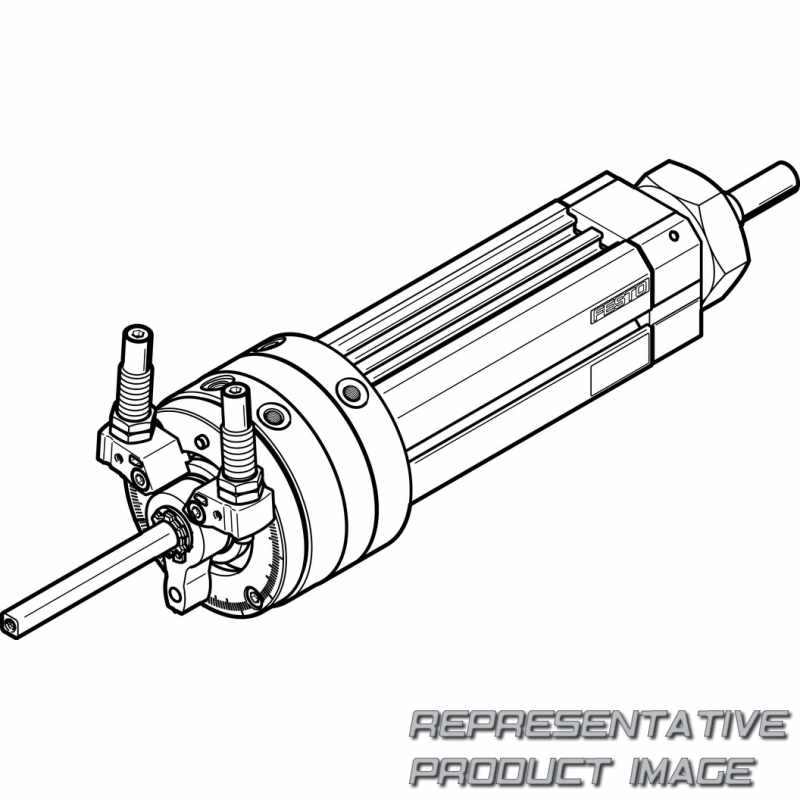

Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO DSL – Swivel linear unit, double-acting. Finden Sie das passende Produkt durch Filtern mit Baugröße, Stroke [mm], End-position cushioning, Position sensing, Piston rod type, Führung und Generation.

DSL Typcodes

Serie	Katalognummernformat	Beschreibung
DSL	DSL- -270-	Swivel linear unit, double-acting

Typcode zur Katalognummer DSL, DSL- -270-

001	Series
DSL	Swivel linear unit, double-acting
002	Size
16	16
20	20
25	25
32	32
40	40
003	Stroke [mm]
	Undefined
...	10 ... 200
004	Swivel angle
270	270°
005	End-position cushioning
P	Elastic cushioning components at both ends

006	Position sensing
CC	Shock absorber at both ends
	None
A	For proximity sensor
007	Piston rod type
	Single-endend piston rod
S2	Through piston rod
S20	Through, hollow piston rod
008	Guide
	Plain-bearing guide
KF	Recirculating ball bearing guide
009	Generation
B	Series B
	None

Produkte

Zeige 1 Produkt bis 12 von insgesamt 363

Katalognummer	Teilenummer	Baugröße	End-position cushioning	Führung	Generation
DSL-16-25-270-CC-A-S2-B	556391	16	Shock absorber at both ends	Plain-bearing guide	Series B
DSL-16-25-270-CC-A-S2-KF-B	556583	16	Shock absorber at both ends	Recirculating ball bearing guide	Series B
DSL-16-25-270-CC-A-S20-B	556394	16	Shock absorber at both ends	Plain-bearing guide	Series B
DSL-16-25-270-CC-A-S20-KF-B	556586	16	Shock absorber at both ends	Recirculating ball bearing guide	Series B
DSL-16-25-270-P-A-S2-B	556390	16	Elastic cushioning components at both ends	Plain-bearing guide	Series B
DSL-16-25-270-P-A-S2-KF-B	556582	16	Elastic cushioning components at both ends	Recirculating ball bearing guide	Series B
DSL-16-25-270-P-A-S20-B	556393	16	Elastic cushioning components at both ends	Plain-bearing guide	Series B
DSL-16-25-270-P-A-S20-KF-B	556585	16	Elastic cushioning components at both ends	Recirculating ball bearing guide	Series B
DSL-16-25-270-P-S2-CC-KF	177160	16	Elastic cushioning components at both ends	Plain-bearing guide	None
DSL-16-25-270-P-S2-FF	159542	16	Elastic cushioning components at both ends	Plain-bearing guide	None
DSL-16- 25-270P-KF	374948	16	Elastic cushioning components at both ends	Recirculating ball bearing guide	None
DSL-16- 25-270P-S2	121656	16	Elastic cushioning components at both ends	Plain-bearing guide	None
