DPZ Festo

FESTO DPZ

161 Produkte

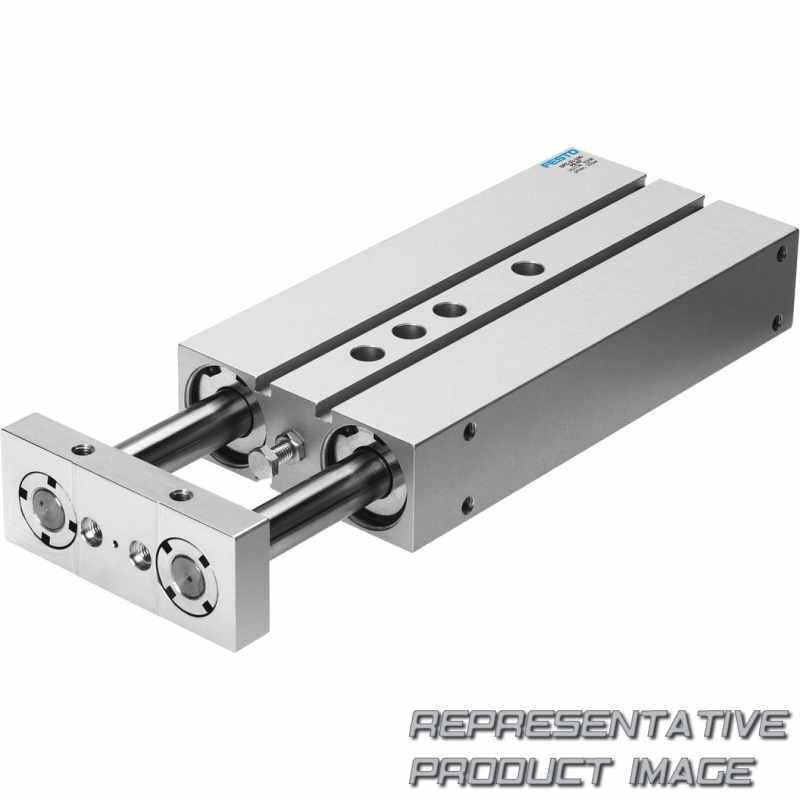

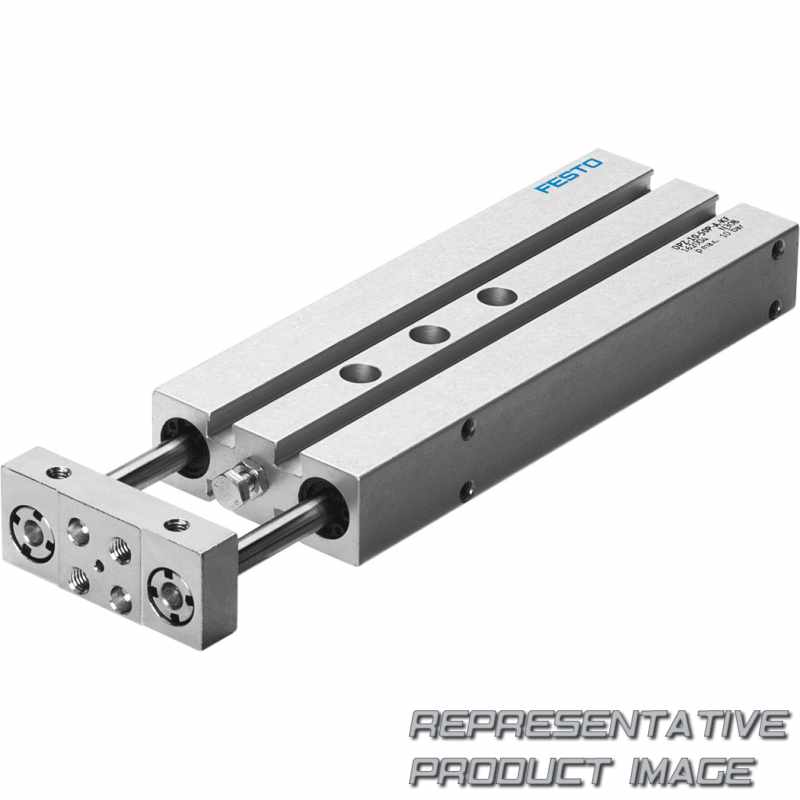

Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO DPZ – Double piston cylinder with one end plate, double-acting. Finden Sie das passende Produkt durch Filtern mit Baugröße, Stroke [mm], Führung und Piston rod type.

DPZ Typcodes

Serie	Katalognummernformat	Beschreibung
DPZ	DPZ- - -P-A	Double piston cylinder with one end plate, double-acting

Typcode zur Katalognummer DPZ, DPZ- - -P-A

001	Series
DPZ	Double piston cylinder with one end plate, double-acting
002	Size
10	10
16	16
20	20
25	25
32	32
003	Stroke [mm]
...	10 ... 100
004	Cushioning

005	Position sensing
P	Elastic cushioning rings/plates on both sides
A	For proximity sensor
006	Guide
	Basic type
GF	Plain bearing
KF	Recirculating ball bearing guide
007	Piston rod type
	At one end
S2	Through piston rod

Produkte

Zeige 1 Produkt bis 12 von insgesamt 161

Katalognummer	Teilenummer	Baureihe	Baugröße	Stroke [mm]	Führung
DPZ- 10- 10P-A-S2:6	347282	Double piston cylinder with one end plate, double-acting	10	10	Basic type
DPZ- 10- 10P-A:6	343492	Double piston cylinder with one end plate, double-acting	10	10	Basic type
DPZ- 10- 25P-A-S2:6	347283	Double piston cylinder with one end plate, double-acting	10	25	Basic type
DPZ- 10- 40P-A-S2:6	347284	Double piston cylinder with one end plate, double-acting	10	40	Basic type
DPZ- 10- 40P-A:6	343494	Double piston cylinder with one end plate, double-acting	10	40	Basic type
DPZ- 10- 50P-A-S2:6	347285	Double piston cylinder with one end plate, double-acting	10	50	Basic type
DPZ- 10- 50P-A:6	343495	Double piston cylinder with one end plate, double-acting	10	50	Basic type
DPZ-10-10-P-A	32681	Double piston cylinder with one end plate, double-acting	10	10	Basic type
DPZ-10-10-P-A-KF	162001	Double piston cylinder with one end plate, double-acting	10	10	Recirculating ball bearing guide
DPZ-10-10-P-A-KF-S2	162006	Double piston cylinder with one end plate, double-acting	10	10	Recirculating ball bearing guide
DPZ-10-10-P-A-S2	159862	Double piston cylinder with one end plate, double-acting	10	10	Basic type
DPZ-10-25-P-A	32682	Double piston cylinder with one end plate, double-acting	10	25	Basic type
