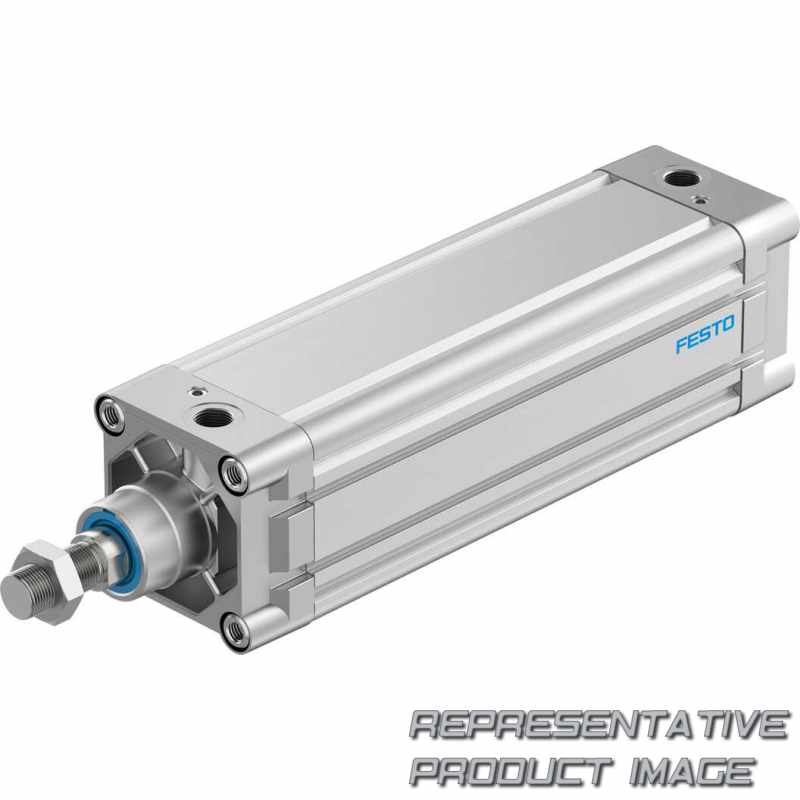

FESTO DNC
1234 Produkte
Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO DNC – Standards-based cylinder, double-acting, based on ISO 15552. Finden Sie das passende Produkt durch Filtern mit Piston diameter [mm], Stroke [mm], Dämpfung, Position sensing, Protection against rotation, Piston rod type, Piston rod thread type, Piston rod extension, Temperature resistance, Constant motion, Running characteristic, Corrosion protection und Scraper.
DNC Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| DNC | DNC- - | Standards-based cylinder, double-acting, based on ISO 15552 |
Typcode zur Katalognummer DNC,
DNC- -
| 001 | Series |
|---|---|
| DNC | Standards-based cylinder, double-acting, based on ISO 15552 |
| 002 | Piston diameter [mm] |
| 32 | 32 |
| 40 | 40 |
| 50 | 50 |
| 63 | 63 |
| 80 | 80 |
| 100 | 100 |
| 125 | 125 |
| 003 | Stroke [mm] |
| Undefined | |
| ... | 2 ... 2000 |
| 004 | Cushioning |
| P | Elastic cushioning rings/plates on both sides |
| PPV | Pneumatic cushioning, adjustable at both ends |
| 005 | Position sensing |
| None | |
| A | For proximity sensor |
| 006 | Protection against rotation |
| None | |
| Q | With protection against rotation |
| 007 | Piston rod type |
| Single-endend piston rod | |
| S2 | Through piston rod |
| S20 | Through, hollow piston rod |
| 008 | Piston rod thread type |
| Male thread | |
| K3 | Female thread |
| 009 | Custom thread |
| None |
| Standard piston rod thread | |
| “M10”K5 | M10 |
| “M12”K5 | M12 |
| “M16”K5 | M16 |
| “M20”K5 | M20 |
| “M27”K5 | M27 |
| 010 | Special spanner flats |
|---|---|
| Standard | |
| K7 | Piston rod with external hexagon |
| 011 | Piston rod extension |
| None | |
| ...K8 | 1 ... 500 mm |
| 012 | Improved running performance |
| None | |
| K10 | Smooth aluminium anodised coated piston rod |
| 013 | Temperature resistance |
| Standard | |
| S6 | Heat-resistant seals max. 120 °C |
| 014 | Constant motion |
| None | |
| S10 | Slow speed (constant motion at low piston speeds) |
| 015 | Running characteristic |
| S11 | Low friction |
| None | |
| 016 | Corrosion protection |
| Standard | |
| R3 | High corrosion protection |
| 017 | Scraper |
| R8 | Dust protection |
| Standard |
