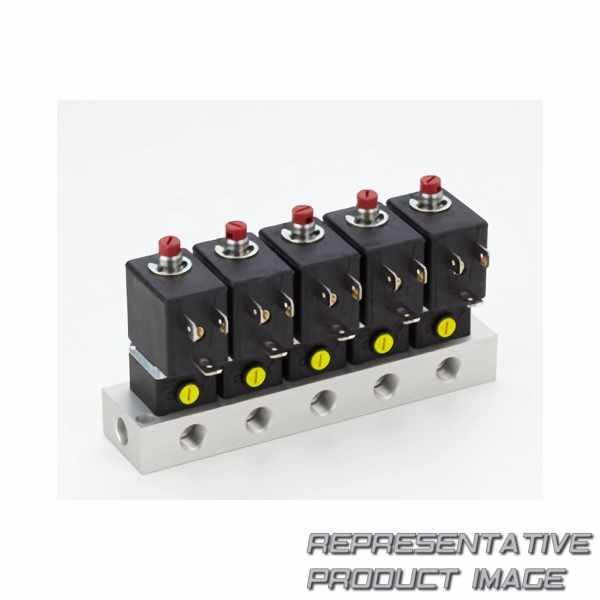

NORGREN DM/49/MAZ12J/T2 solenoid actuated

Name: DM/49/MAZ12J/T2 NORGREN
Brand: NORGREN
SKU: 781625-de-eur
Price: 321.47 EUR
Availability: SoldOut

321,47 € (zzgl. MwSt.) ~~485,25 €~~ -33%

Begrenzter Lagerbestand nur auf Anfrage erhältlich

Technische Daten

Actuation Type	direct solenoid / spring return
Einbaulage	manifold
max. Druck	0 ... 10 bar

actuation		direct solenoid / spring return
data performance shelf life		3 years
eu country of origin		germany
flow flow dm3sec		0.5 dm3/sec
fluid temperature temperature celsius min to max range		-20 ... 50 °c
housing		plastic
Medium		compressed air
mounting		manifold
operating pressure psi pressure psi min to max range		0 ... 145 psi
operating temperature temperature celsius min to max range		-20 ... 50 °c
Anschlussgröße		g1/8
product style		sub-base
range		m/49
solenoid connector		22mm industrial standard
springs		stainless steel
switching time off time millisecond		15 ms
valve size length millimetre		22 mm

cylinder diameter metric length millimetre		1 mm
Elektrischer Anschluss		22mm industrial standard
Features		manual override as standard
flow flow litresperminute		30 l/m
gland size		pg9
Handhilfsbetätigung		turn to lock
mil spec		available on request
operating pressure pressure bar min to max range		0 ... 10 bar
operating temperature f temperature fahrenheit min to max range		-4 ... 122 °f
port orientation		side ported
power inrushhold power watt		2 w
Schutzklasse		ip65
Dichtungen		nitrile rubber
solenoid power power watt		2 w
subbase modules		aluminium
switching time on time millisecond		12 ms
voltage		12vdc
