| terminals | screw terminals | ||
| power consumption | 5.5 kw | ||

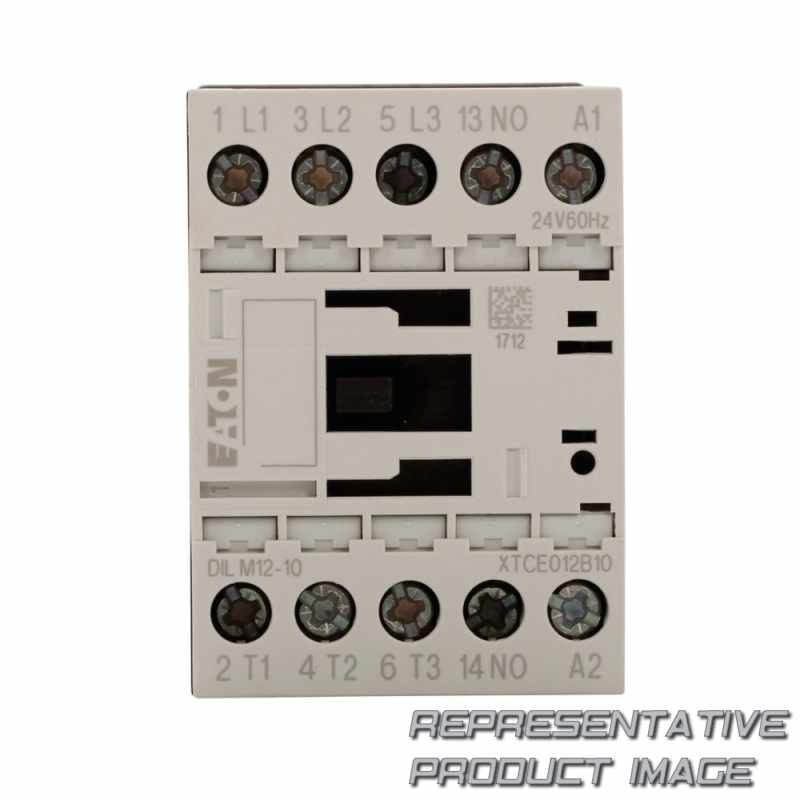

| Typ | full voltage non-reversing miniature contactor | ||
| coil voltage | 24 vac, 60 hz | ||
| Spule | 24 vac 60 hz | ||
| amperage rating | 12a | ||
| hp rating - max | 1, 2/ 3, 3, 10, 10 (1/3ph @120,240/208,240,480,600 v) | ||
| catalog notes | screw terminals (6-65a); 5 mm (80-150a), no lugs (185-2000a) | ||
| compliances | ce marked rohs compliant |
||
| Produktgewicht | .69 lb | ||
| product height | 2 in | ||
| ean | 4015082768218 |
| frequency rating | 60 hz | ||
| continuous ampere rating | 12 a | ||
| Baureihe | xt iec | ||
| frame size | 45 mm | ||
| number of poles | three-pole | ||
| operation | non-reversing | ||
| contact configuration | 1 no | ||
| certifications | en 60947 csa certified iec 60947 ul listed |
||
| warranty | 1 year | ||
| product width | 2.75 in | ||
| product length/depth | 3 in |
