FESTO DHPC
162 Produkte
Technische Daten

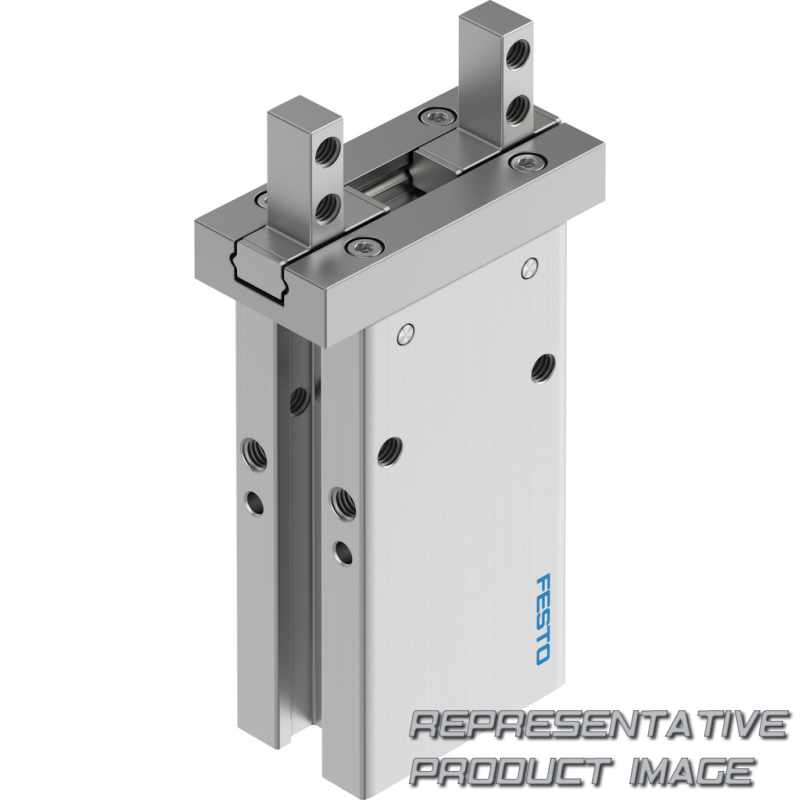

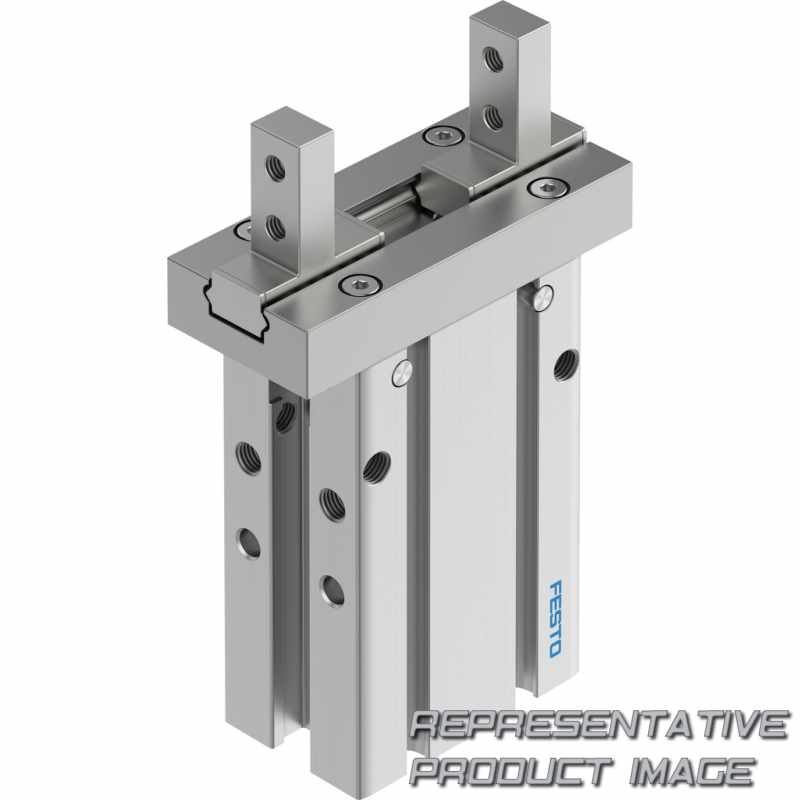

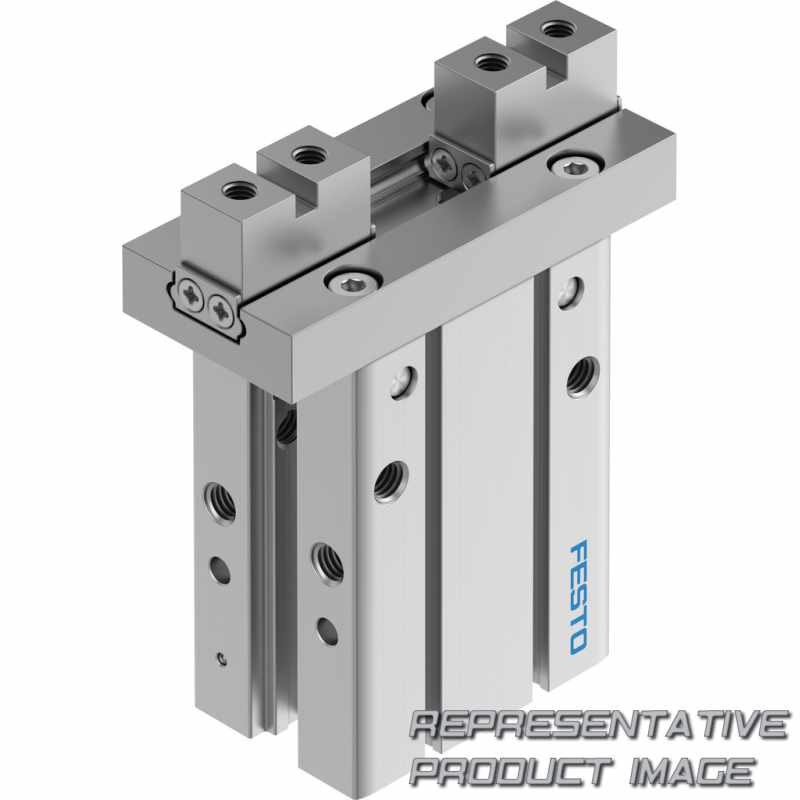

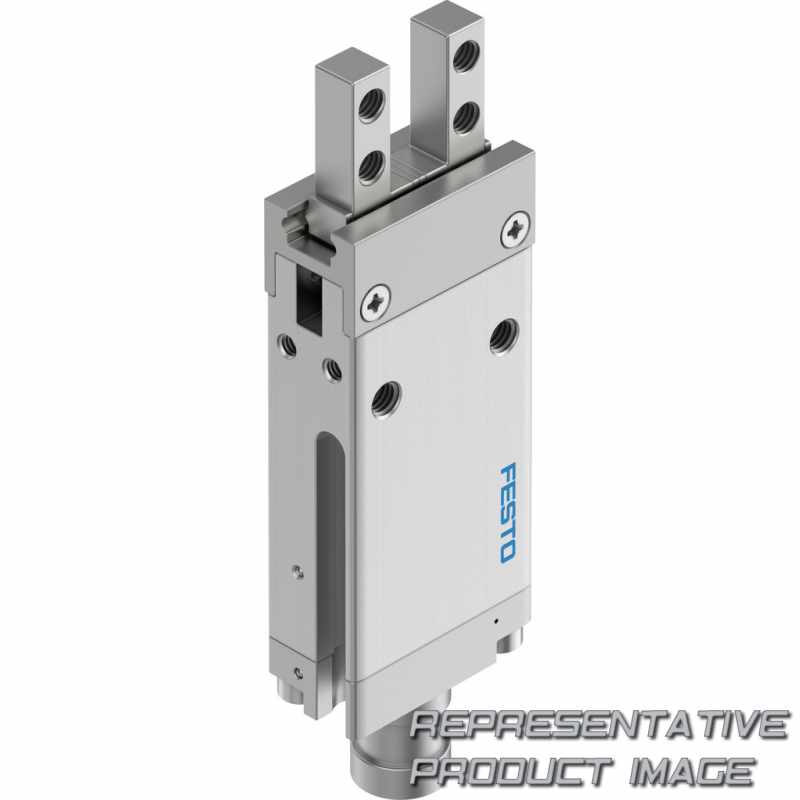

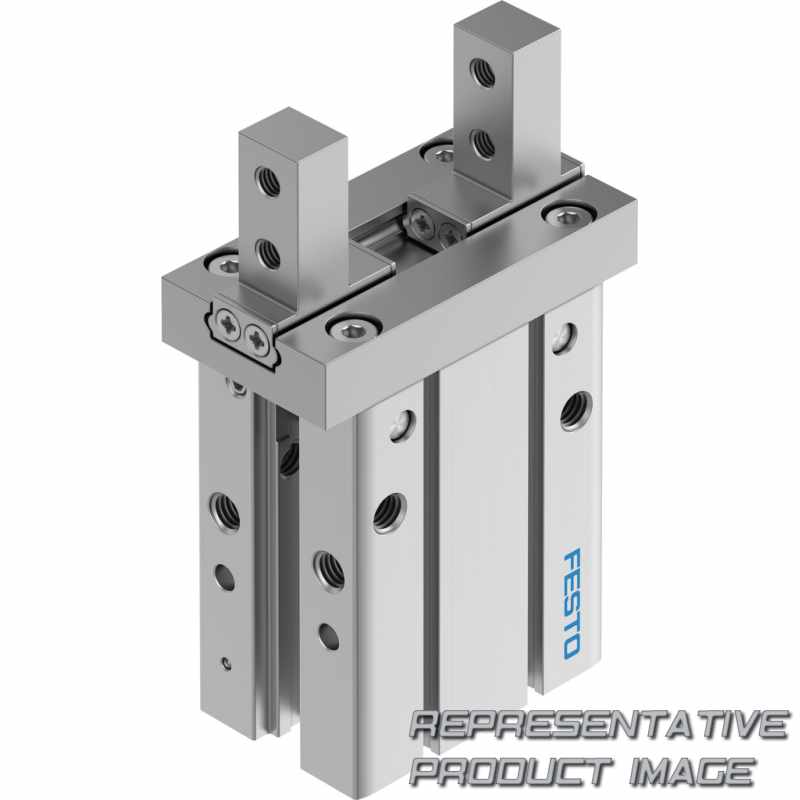

Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO DHPC – Parallel gripper. Finden Sie das passende Produkt durch Filtern mit Gripper characteristic, Baugröße, Gripping force backup, Pneumatischer Anschluss und Type of mounting gripper fi nger.
DHPC Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| DHPC | DHPC- -A- | Parallel gripper |
Typcode zur Katalognummer DHPC,
DHPC- -A-
| 001 | Series |
|---|---|
| DHPC | Parallel gripper |
| 002 | Gripper characteristic |
| Standard | |
| L | Long stroke |
| 003 | Size |
| 6 | 6 |
| 10 | 10 |
| 16 | 16 |
| 20 | 20 |
| 25 | 25 |
| 32 | 32 |
| 40 | 40 |
| 004 | Position sensing |
| A | For proximity sensor |
| 005 | Gripping force backup |
| None | |
| NC | N/O contact |
| NO | Opening |
| 006 | Pneumatic connection |
|---|---|
| B | Bottom |
| S | On the side |
| Z | Via mounting spigot |
| 007 | Dust protection |
| None | |
| C | Protective dust cap |
| 008 | Type of mounting gripper fi nger |
| None | |
| 1 | Mounting holes at the side |
| 2 | Flat gripper fi ngers |
