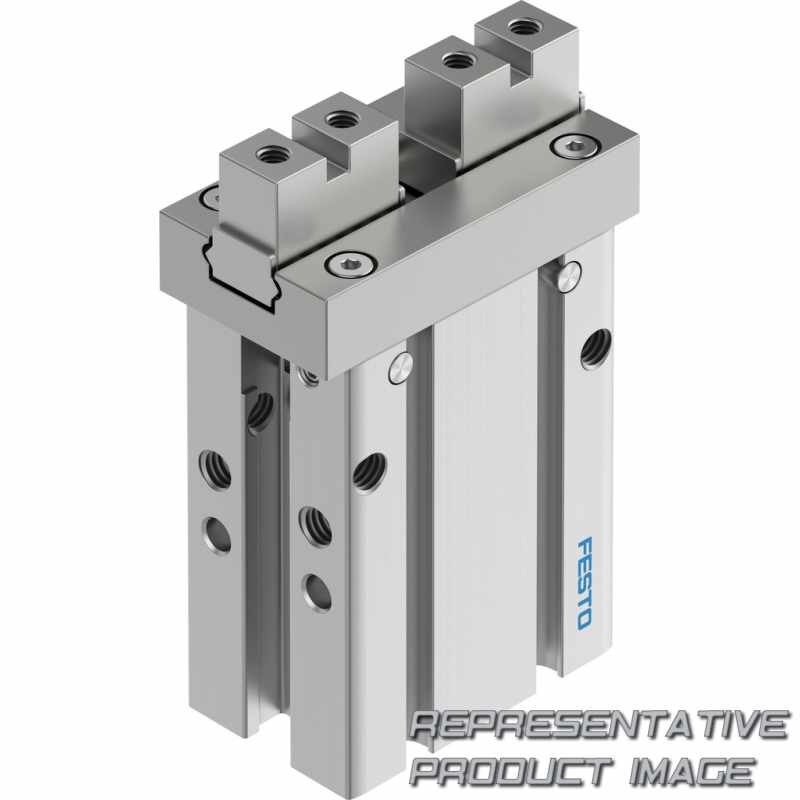

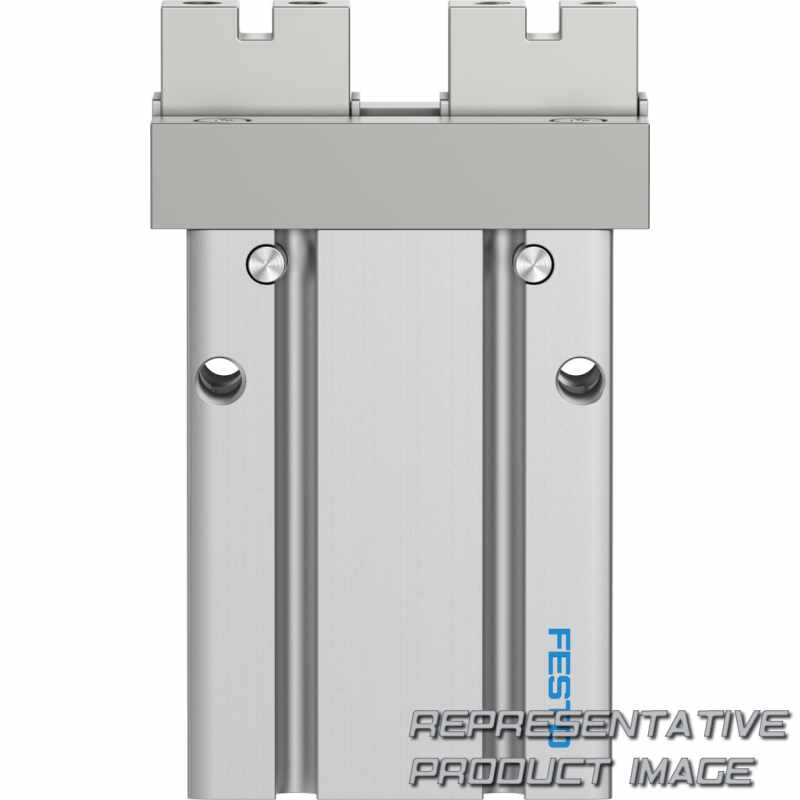

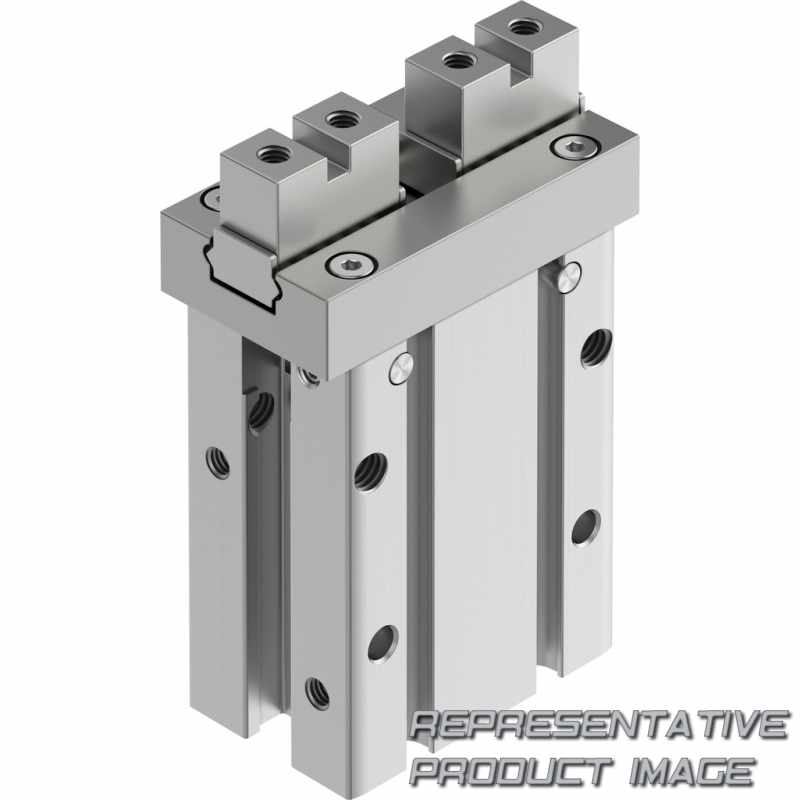

| Baugröße | 16 | ||
| Max. Austauschgenauigkeit | 0,2 mm | ||
| Max. Greifbackenspiel Sz | 0 mm | ||
| Wiederholgenauigkeit Greifer | ≤ 0,02 mm | ||
| Einbaulage | optional | ||
| Greiferfunktion | Parallel | ||
| Führung | Ball guide | ||
| Symbol | 00991894 | ||
| Total gripper force, opening, 0.6 MPa (6 bar, 87 psi) | 125,4 N | ||
| Betriebsdruck | 14,5 psi ... 116 psi | ||
| Min. Öffnungszeit bei 0,6 MPa (6 bar, 87 psi) | 29 ms | ||
| Max. Masse pro externem Greiffinger | 360 g | ||
| Hinweis zum Betriebs-/Steuermedium | Lubricated operation possible (in which case lubricated operation will always be required) | ||
| LABS-Konformität | VDMA24364-B2-L | ||
| Umgebungstemperatur | -10 °C ... 60 °C | ||
| Greifkraft pro Greifbacken bei 0,6 MPa (6 bar, 87 psi) schließen | 53,9 N | ||
| Max. Kraft am Greifbacken Fz statisch | 49 N | ||
| Max. Moment am Greifbacken My statisch | 0,68 Nm | ||
| Produktgewicht | 113 g | ||
| Pneumatischer Anschluss | M3 | ||
| Werkstoff Gehäuse | Anodised aluminium |
| Hub pro Greifbacken | 3 mm | ||
| Max. Greifbacken-Winkelspiel ax, ay | 0 deg | ||
| Rotationssymmetrie | ≤ 0,2 mm | ||
| Anzahl Greifbacken | 2 | ||
| Funktionsweise | Double-acting | ||
| Konstruktiver Aufbau | Connection direction at side Flat mounting method for gripper fingers Lever Force pilot operated motion sequence | ||
| Positionserkennung | Via proximity switch | ||
| Varianten | Metals with copper, zinc or nickel as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils. | ||
| Total gripper force, closing, 0.6 MPa (6 bar, 87 psi) | 107,8 N | ||
| Max. Arbeitsfrequenz Greifer | 3 Hz | ||
| Min. Schließzeit bei 0,6 MPa (6 bar, 87 psi) | 31 ms | ||
| Betriebsmedium | Compressed air to ISO 8573-1:2010 [7:4:4] | ||
| Korrosionsbeständigkeitsklasse KBK | 0 - No corrosion stress | ||
| Eignung zur Produktion von Li-Ionen Batterien | Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils | ||
| Greifkraft pro Greifbacken bei 0,6 MPa (6 bar, 87 psi) öffnen | 62,7 N | ||
| Massenträgheitsmoment | 0,147 kgcm² | ||
| Max. Moment am Greifbacken Mx statisch | 0,34 Nm | ||
| Max. Moment am Greifbacken Mz statisch | 0,34 Nm | ||
| Befestigungsart | Direct mounting via through-hole Direct mounting via thread Via through-hole and dowel pin Via female thread and dowel pin Either: | ||
| Werkstoff-Hinweis | RoHS-compliant | ||
| Werkstoff Greifbacken | High-alloy stainless steel |
