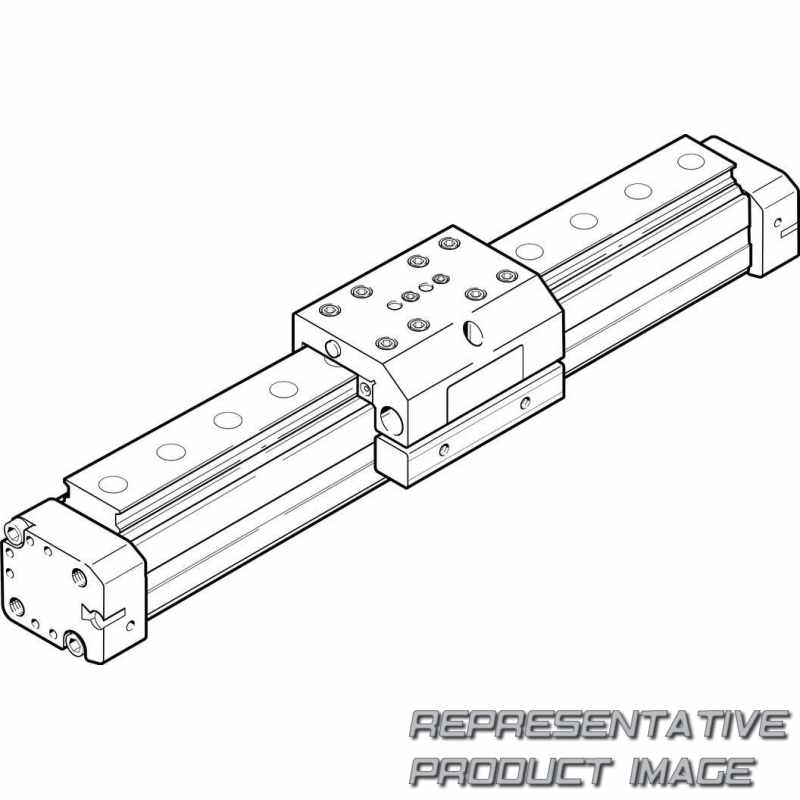

FESTO DGPL
72 Produkte
Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO DGPL – Linear drive with slide. Finden Sie das passende Produkt durch Filtern mit Piston diameter [mm], Stroke [mm], Generation, Basic version, Slide attachment position und Compressed air connection.
DGPL Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| DGPL | DGPL- - -PPV-A-KF | Linear drive with slide |
Typcode zur Katalognummer DGPL,
DGPL- - -PPV-A-KF
| 001 | Series |
|---|---|
| DGPL | Linear drive with slide |
| 002 | Piston diameter [mm] |
| 18 | 18 |
| 25 | 25 |
| 32 | 32 |
| 40 | 40 |
| 50 | 50 |
| 63 | 63 |
| 80 | 80 |
| 003 | Stroke [mm] |
| ... | 10 ... 3000 |
| 004 | Cushioning |
| PPV | Pneumatic cushioning, adjustable at both ends |
| 005 | Position sensing |
| A | For proximity sensor |
| 006 | Generation |
| None | |
| B | Function-optimised |
| 007 | Guide |
| KF | Recirculating ball bearing guide |
| 008 | Generation |
| None | |
| B | Function-optimised |
| 009 | Basic version |
| Undefined | |
| GK | Piston/slide standard |
| GV | Extended piston/slide |
| 010 | Slide attachment position |
| Without slide | |
| SH | Slide at rear |
| SV | Slide at front |
| 011 | Compressed air connection |
| Without | |
| D2 | Both sides |
| 012 | Protection |
| Without | |
| GA | Protected version |
| 013 | Linear potentiometer |
| None | |
| MP1 | Potentiometer, position 1, mounted |
| MP2 | Potentiometer, position 2, mounted |
| MP3 | Potentiometer, position 3, mounted |
| MP4 | Potentiometer, position 4, mounted |
| MA1 | Temposonic with CAN axis interface, position 1, mounted |
| MA2 | Temposonic with CAN axis interface, position 2, mounted |
| MA3 | Temposonic with CAN axis interface, position 3, mounted |
| MA4 | Temposonic with CAN axis interface, position 4, mounted |
| MP0 | Potentiometer, enclosed separately |
| MA0 | Temposonic with CAN axis interface, enclosed separately |
| 014 | Accessories |
| None | |
| ZUB- | Accessories supplied loose |
| 015 | Slot cover, sensor slot |
|---|---|
| None | |
| ...S | 1 ... 10 pieces |
| 016 | Slot cover for mounting slot |
| None | |
| ...B | 1...10 pieces |
| 017 | Slot nut for slides |
| None | |
| ... X | 1 ... 10 units |
| 018 | Slot nut, mounting slot |
| None | |
| ...Y | 1 ... 10 pieces |
| 019 | Centring sleeves |
| None | |
| ... Z | 10 ... 90 units |
| 020 | Central support |
| None | |
| ...M | 1 ... 10 pieces |
| 021 | Central mounting |
| None | |
| ... Q | 1 ... 10 units |
| 022 | Foot mounting [unit] |
| None | |
| ... F | 1 - 10 units |
| 023 | Proximity sensor, cable 2.5 m |
| None | |
| ...G | 1 ... 10 pieces |
| 024 | Proximity sensor, plug M8 |
| None | |
| ...H | 1 ... 10 pieces |
| 025 | Proximity sensor, contactless, cable 2.5 m |
| None | |
| ...I | 1 ... 10 pieces |
| 026 | Proximity sensor, contactless, plug M8 |
| None | |
| ...J | 1 ... 10 pieces |
| 027 | Proximity sensor, N/C contact, cable 2.5 m |
| None | |
| ...N | 1 ... 10 pieces |
| 028 | Connecting cable 2.5 m, plug M8 |
| None | |
| ...V | 1 ... 10 pieces |
| 029 | Shock absorber, self-adjusting, with retaining bracket |
| None | |
| ... C | 1 ... 10 units |
| 030 | Shock absorber [unit] |
| None | |
| ... E | 1 - 10 units |
