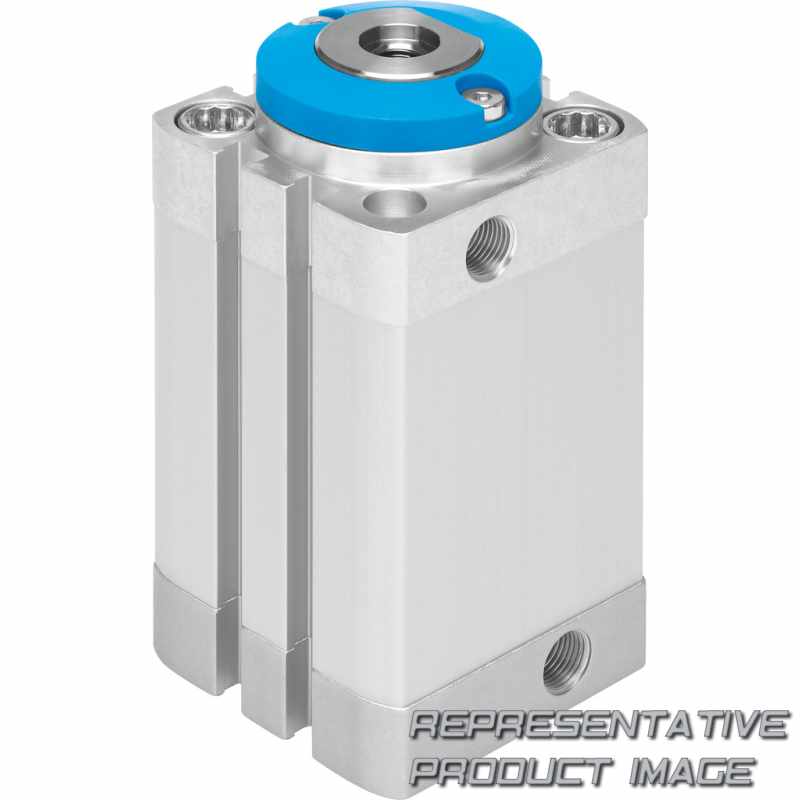

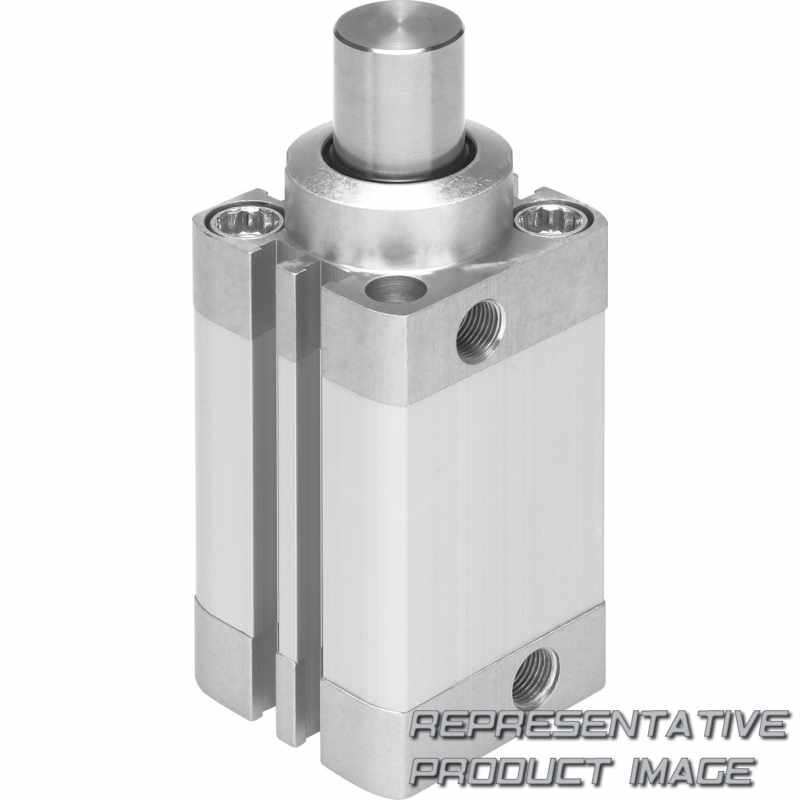

FESTO DFSP
134 Produkte
Technische Daten
Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO DFSP – Stopper cylinder, single- or double-acting. Finden Sie das passende Produkt durch Filtern mit Protection against rotation, Piston diameter [mm], Stroke [mm], Funktion und Piston rod design.
DFSP Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| DFSP | DFSP- - - -P-A | Stopper cylinder, single- or double-acting |
Typcode zur Katalognummer DFSP,
DFSP- - - -P-A
| 001 | Series |
|---|---|
| DFSP | Stopper cylinder, single- or double-acting |
| 002 | Protection against rotation |
| None | |
| Q | With protection against rotation |
| 003 | Piston diameter [mm] |
| 16 | 16 |
| 20 | 20 |
| 32 | 32 |
| 40 | 40 |
| 50 | 50 |
| 004 | Stroke [mm] |
| 10 | 10 |
| 15 | 15 |
| 20 | 20 |
| 25 | 25 |
| 30 | 30 |
| ... | 10 ... 30 |
| 005 | Function |
|---|---|
| Double-acting with spring | |
| D | Double-acting |
| P | Single-acting with spring |
| 006 | Piston rod design |
| S | Standard |
| F | With female thread |
| R | With roller |
| 007 | Cushioning |
| P | Elastic cushioning rings/plates on both sides |
| 008 | Position sensing |
| A | For proximity sensor |
