D41FPE52FA5NB70 Parker Hannifin

PARKER D41FPE52FA5NB70

Name: D41FPE52FA5NB70 PARKER
Brand: PARKER
SKU: 550561-de-eur
Price: 7502.99 EUR
Availability: InStock

7.502,99 € ~~8.978,86 €~~ -16%

1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

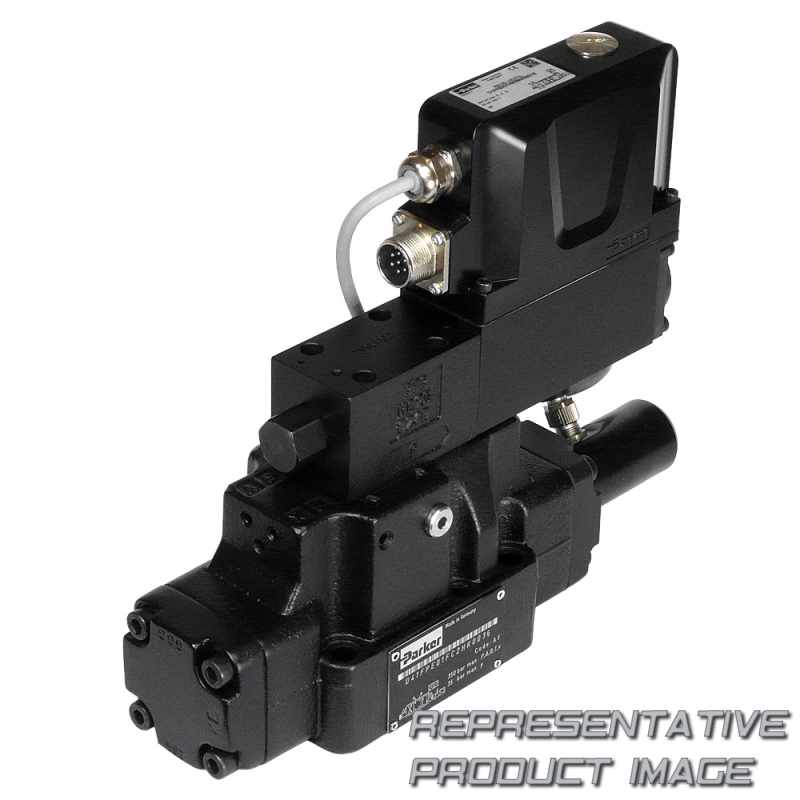

Parker's pilot operated servo proportional directional control valve series D*1FP is the ultimate choice for demanding hydraulic applications. The valves are optionally available with energy-saving regenerative/hybrid function and EtherCAT® interface.

max. Druck	350 bar
Max. Volumenstrom	600 l/min

Dichtung	nbr
Gewicht	14,20Kg

Technical data

Leitungsanschlüsse		ng16 / cetop 07
flow rate		200 l/min
pressure differential (bar)		5
defined spool position at power down		p-a/b-t
seal material		nbr
Strömungsrichtung		0-10 v = p-b
valve option		standard and regenerative valve function
electronics type		onboard electronics
maximum operating pressure		350 bar
Maximale Betriebstemperatur		50 °c
for fluid type		hydraulic oil according to din 51524 ... 535
Mounting type		subplate mounting
body material		cast iron

maximum flow rate		600 l/min
spool code		e52
spool type		zerolap
pilot inlet / drain locations		external/internal
signal input		0-±10 v
Anschlussart		6+pe + enable
operation type		pilot
actuation type		vcd®-actuator
Gewicht		14.2 kg
Minimale Betriebstemperatur		-20 °c
product series		proportional dc valve
Funktion		0-10 v = p-b
