CRDSNU Festo

FESTO CRDSNU

310 Produkte

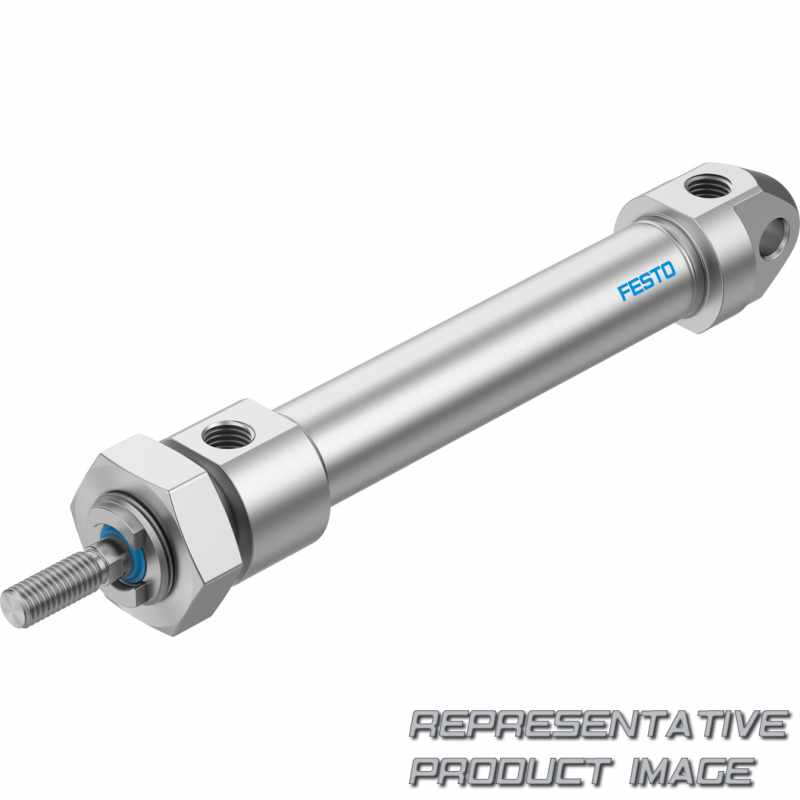

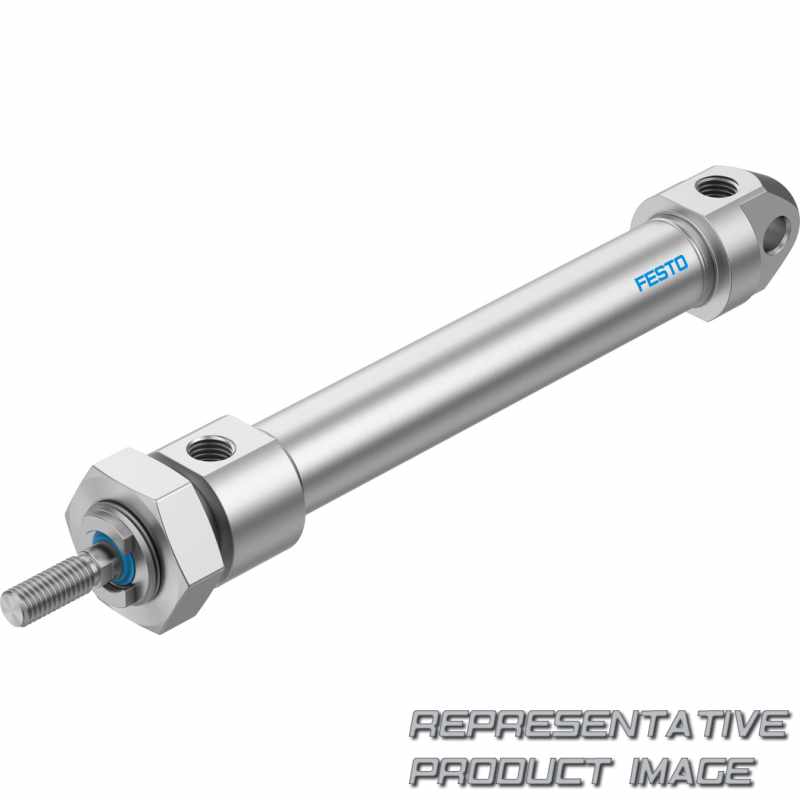

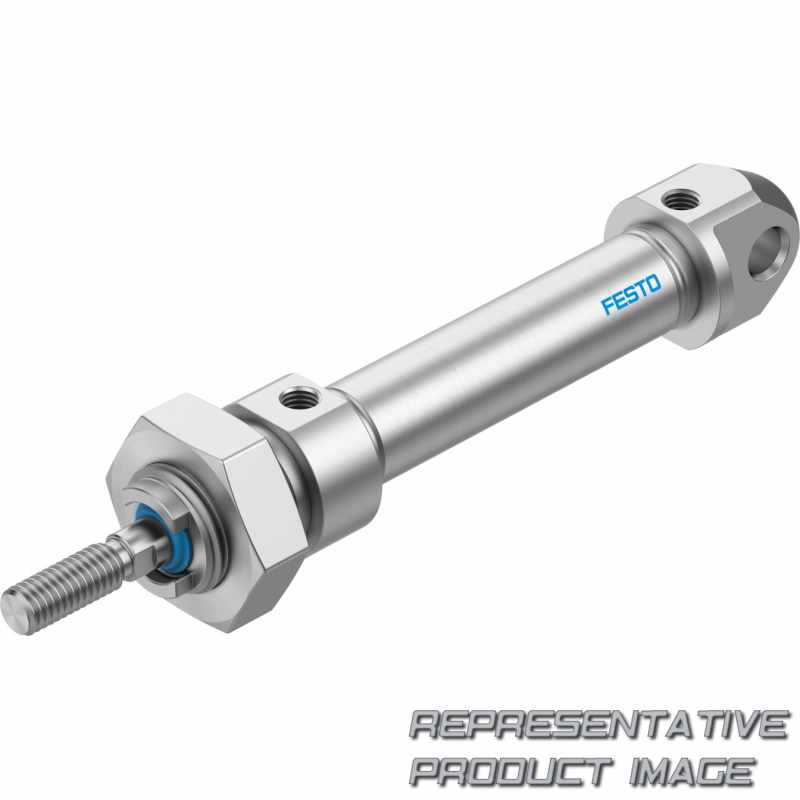

Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO CRDSNU – Round cylinder, double-acting, stainless steel. Finden Sie das passende Produkt durch Filtern mit Ausführung, Piston diameter [mm], Stroke [mm], Dämpfung, Cylinder end cap, Scraper variant, Piston rod type, Piston rod thread extension, Piston rod thread type, Piston rod extension, Temperature resistance, Temperature range und EU certification.

CRDSNU Typcodes

Serie	Katalognummernformat	Beschreibung
CRDSNU	CRDSNU- - - -A	Round cylinder, double-acting, stainless steel

Typcode zur Katalognummer CRDSNU, CRDSNU- - - -A

001	Series
CRDSNU	Round cylinder, double-acting, stainless steel
002	Version
	Standard
B	B version
003	Piston diameter [mm]
12	12
16	16
20	20
25	25
32	32
40	40
50	50
63	63
80	80
100	100
004	Stroke [mm]
...	1 ... 500
005	Cushioning
P	Elastic cushioning rings/plates on both sides
PPS	Pneumatic cushioning, self-adjusting at both ends
PPV	Pneumatic cushioning, adjustable at both ends
006	Position sensing
A	For proximity sensor
007	Cylinder end cap
	Standard
MQ	Short end cap without swivel mounting
MG	Bearing cap without mounting thread
008	Scraper variant
	None
A1	Increased chemical resistance

009	Piston rod type
A2	Hard scraper
A3	For unlubricated operation
	At one end
S2	Through piston rod
010	Piston rod thread extension
	None
...K2	1 ... 70 mm
011	Piston rod thread type
	Male thread
K3	Female thread
012	Custom thread
	None
“M10”K5	M10
“M12”K5	M12
“M16”K5	M16
“M20”K5	M20
013	Piston rod extension
	None
...K8	1 ... 500 mm
014	Temperature resistance
	Standard
S6	Heat-resistant seals max. 120 °C
015	Temperature range
	Standard
TT	-40 ... +80°C
016	EU certification
	None
EX4	II 2GD

Produkte

Zeige 1 Produkt bis 12 von insgesamt 310

Katalognummer	Teilenummer	Stroke [mm]	Cylinder end cap	Piston rod thread type	Piston rod extension
CRDSNU-12-5-P-A	552787	5	Standard	Male thread	None
CRDSNU-12-8-P-A	552787	8	Standard	Male thread	None
CRDSNU-12-10-P-A	609170	10	Standard	Male thread	None
CRDSNU-12-10-P-A	8152524	10	Standard	Male thread	None
CRDSNU-12-10-P-A-A3	609611	10	Standard	Male thread	None
CRDSNU-12-10-P-A-MG	610424	10	Bearing cap without mounting thread	Male thread	None
CRDSNU-12-10-P-A-MQ	610425	10	Short end cap without swivel mounting	Male thread	None
CRDSNU-12-20-P-A	609246	20	Standard	Male thread	None
CRDSNU-12-25-P-A	8152525	25	Standard	Male thread	None
CRDSNU-12-25-P-A-MQ	610426	25	Short end cap without swivel mounting	Male thread	None
CRDSNU-12-40-P-A	8152526	40	Standard	Male thread	None
CRDSNU-12-40-P-A-A3	552787	40	Standard	Male thread	None
