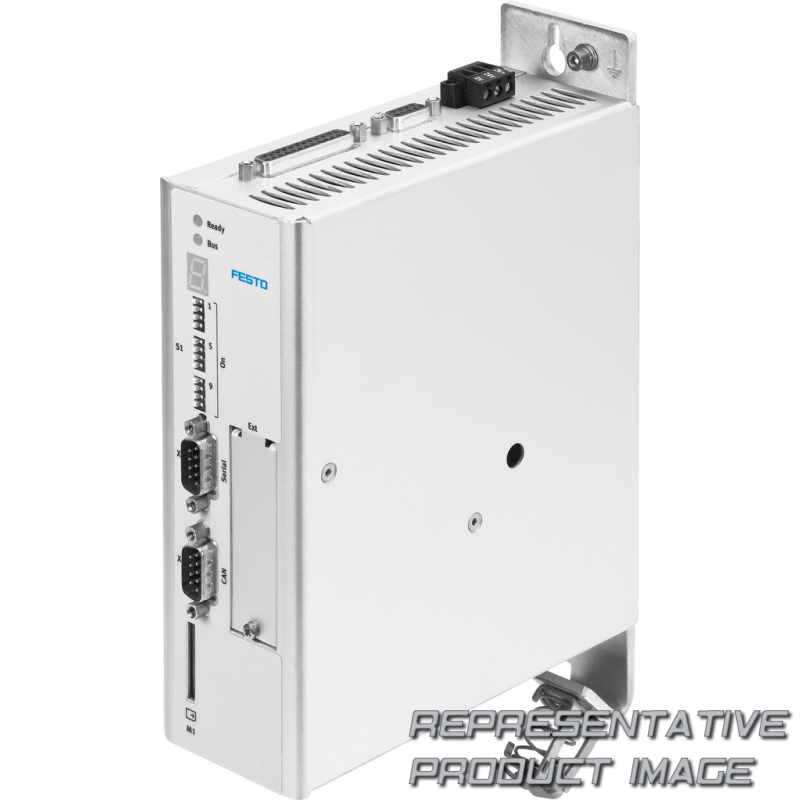

FESTO 572211 Motorcontroller

Name: 572211 FESTO
Brand: FESTO
SKU: 682148-de-eur
Price: 1343.62 EUR
Availability: InStock

CMMS-ST-C8-7-G2

1.343,62 € (zzgl. MwSt.)

2 Stk. mit 1 bis 3 Tagen Lieferzeit nach Germany

Technische Daten

Nominal input voltage (7)	48 V DC
Generation (G2)	2nd generation

Performance Level (PL)		Safe Torque Off (STO)/category 3, performance level d
Working range of monitor outputs		± 10 V
Impedance of setpoint input		20 kOhm
Number of analogue setpoint inputs		1
Features of digital logic outputs		Freely configurable in some cases Not galvanically isolated
Encoder interface input, features		RS422
Position sensor		Encoder
Bus terminator resistor		Integrated
Fieldbus link		CANopen Profibus DP
Max. step frequency		4 kHz
Protective function		I²t monitoring Temperature monitoring Current monitoring Voltage failure detection Following error monitoring
Adjustable current reduction		Via software
Controller operating mode		PWM MOSFET power output stage
Output frequency		0 Hz ... 2.000 Hz
Output voltage class AC		0 V up to input voltage
Permissible range for logic voltage		± 20 %
Pulse power, brake resistance		0,5 kVA
Max. intermediate circuit voltage DC		58 V
Mains filter		Integrated
Nominal current, load supply		8 A
Werkstoff-Hinweis		RoHS-compliant
Schutzart		IP20
Umgebungstemperatur		0 °C ... 50 °C
Zertifikat ausstellende Stelle		BG MFS 09031
CE-Zeichen (siehe Konformitätserklärung)		To EU EMC Directive To EC Machinery Directive In accordance with EU RoHS Directive
Operator controls		DIP switch
Produktgewicht		2.000 g

Sicherheitsfunktion		Safe torque off (STO)
Number of analogue monitor outputs		1
Working range setpoint input		± 10 V
Max. current digital logic outputs		100 mA
Encoder interface input, function		Specifies the speed of the slave drive in synchronous mode.
Encoder interface output, function		Setpoint specification for downstream slave drive.
Rotor position sensor		Encoder
Bus connection		Plugs 9-pin Sub-D
Parameterisation interface		RS232 (9600...115000 bits/s)
Nominal current setting		Via software
Step adjustment		Via software
Operating mode of drive unit		Micro step, >4000 steps/revolution
Max. length of motor cable without external mains filter		25 m
Max. peak current duration		2 s
Nominal current logic power supply		0,2 A
Nominal voltage for logic power supply DC		24 V
Brake resistance		17 Ohm
Nominal voltage load voltage DC		48 V
Peak current load power supply		12 A
LABS-Konformität		VDMA24364-B2-L
Verschmutzungsgrad		2
Relative Luftfeuchtigkeit		0 - 90% Non-condensing
Lagertemperatur		-25 °C ... 70 °C
CE marking (see declaration of conformity)		To UK instructions for EMC To UK regulations for machines To UK RoHS instructions
Zulassung		BIA C-Tick c UL us listed (OL)
Anzeige		7-segment display
Befestigungsart		On sub-base Screw-clamped
