| Parameterisation | Via SafetyTool | ||
| Fuse capacity of outputs | Short-circuit and cross-circuit monitoring | ||
| Current rating per output | 50 mA | ||
| Max. nominal input current | 0,015 A | ||
| Features of logic input | 4 safe, 2-channel inputs Equivalent/antivalent switching Test pulses configurable Function configurable 6 safe, 1-channel inputs Test pulses configurable | ||
| Operator controls | DIP switch | ||
| Elektrischer Anschluss | Screw terminal Straight plug | ||
| Aderenden | Wire end sleeve | ||
| Werkstoff-Hinweis | RoHS-compliant | ||
| Produktgewicht | 220 g | ||
| Schutzart | IP20 In assembled state | ||
| Lagertemperatur | -25 °C ... 55 °C | ||
| Zertifikat ausstellende Stelle | 01/205/5165.02/19 TÜV Rheinland | ||
| Zulassung | German Technical Control Board (TÜV) | ||
| Diagnostic coverage | 97,5 % | ||
| Certified for safety function to ISO 13849 and IEC 61508 (SIL) | Product can be used in SRP/CS up to SIL 3 (high demand) | ||
| Hardware fault tolerance | 1 | ||
| Sicherheitsfunktion | Safe brake control (SBC) Safe Speed Range (SSR) Safe Speed Monitor (SSM) Safe torque off (STO) Safely limited speed (SLS) Safe Operating Stop (SOS) Safe Stop 1 (SS1) Safe Stop 2 (SS2) | ||
| Abmessungen B x L x H | 112.2 x 99.1 x 28.7 mm | ||
| Number of digital logic inputs | 10 | ||
| Fuse protection (short circuit) | no | ||
| Kurzschlussfestigkeit | Yes, exception: contact C1/C2 | ||
| Permissible range for logic voltage | ± 20 % | ||
| Nennbetriebsspannung DC | 24 V | ||
| Performance Level (PL) | Safe brake control (SBC)/category 4, Performance Level e Safely limited speed (SLS)/category 3, performance level e Safe operating stop (SOS)/category 3, performance level e Safe stop 1 (SS1)/category 3, Performance Level e Safe stop 2 (SS2)/category 3, Performance Level e Safe speed monitor (SSM)/category 3, Performance Level e Safe speed range (SSR)/category 3, Performance Level e Safe Torque Off (STO)/category 4, performance level e |
| Min. cycle time | 2 ms | ||
| Max. current digital logic outputs | 50 mA | ||
| Debounce time for inputs | 0,3 ms | ||
| Working range of logic input | 13 V ... 28,8 V | ||
| Specification logic input | IEC 61131-2, type 3 | ||

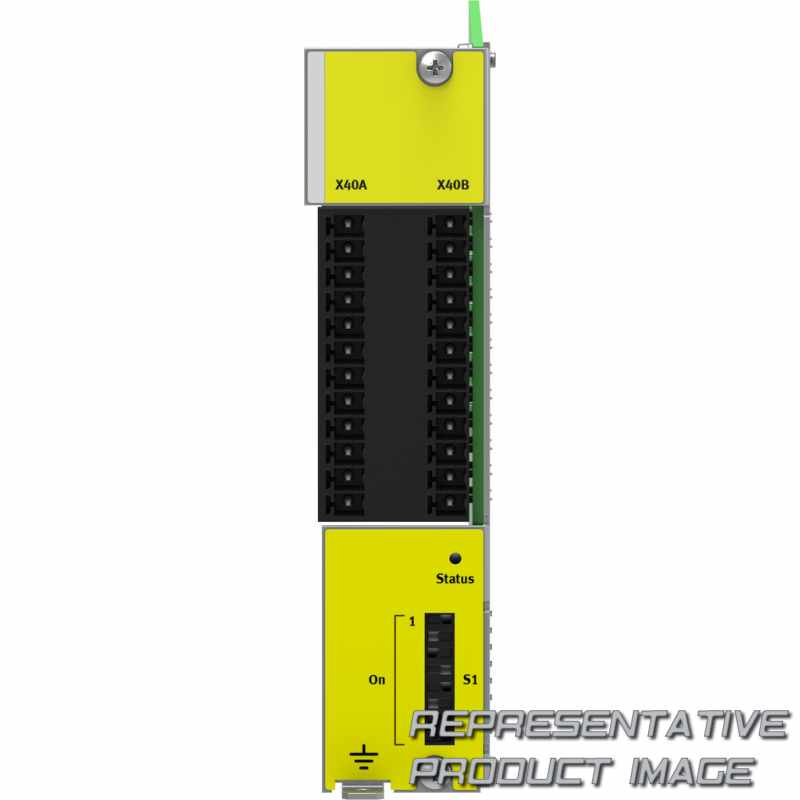

| Anzeige | Green/yellow/red LED | ||
| Anschlussquerschnitt | 0,25 mm² ... 0,5 mm² | ||
| Einbaulage | optional | ||

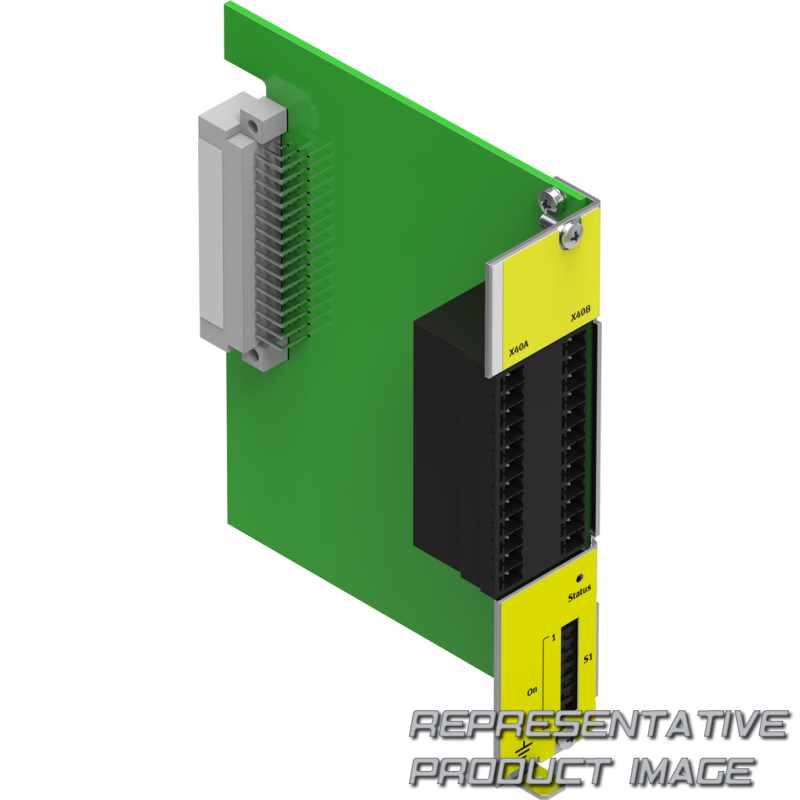

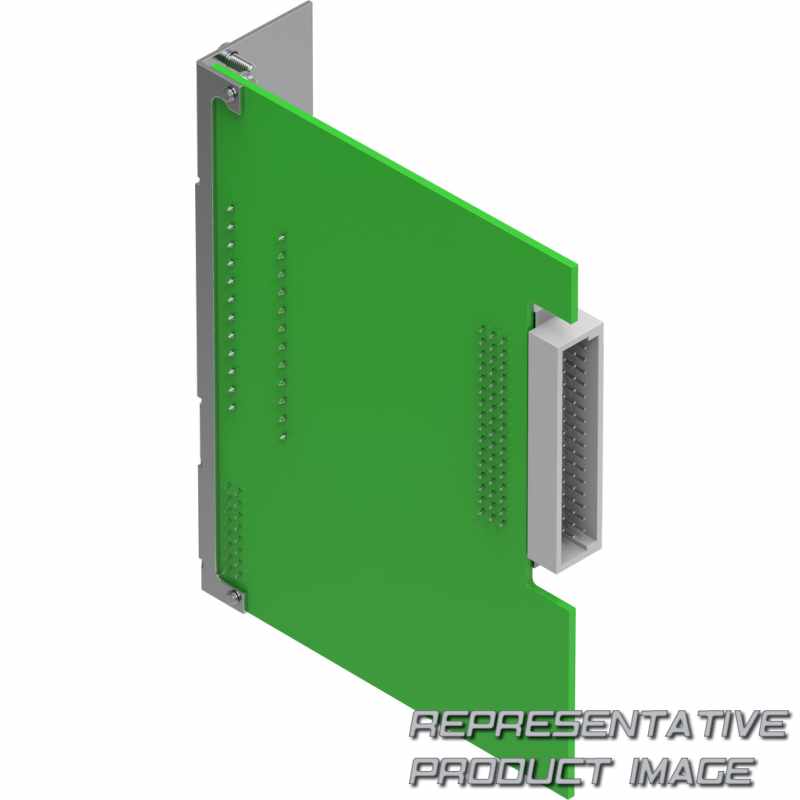

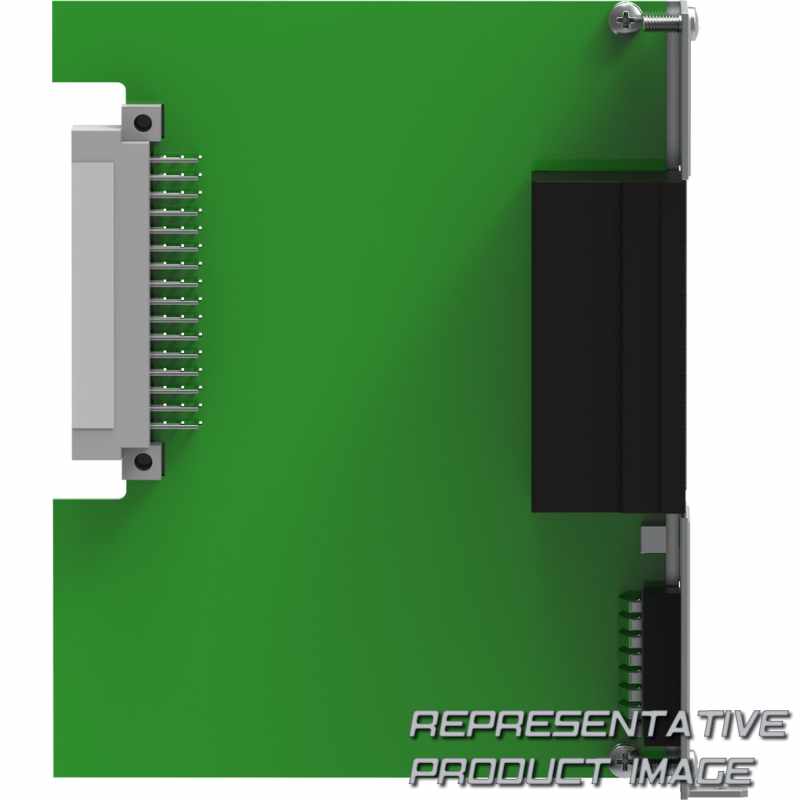

| Befestigungsart | Plug-in module for CMMP-AS...-M3 | ||
| Umgebungstemperatur | 0 °C ... 40 °C | ||
| Relative Luftfeuchtigkeit | 5 - 90% Non-condensing | ||
| LABS-Konformität | VDMA24364 zone III | ||
| CE-Zeichen (siehe Konformitätserklärung) | To EU EMC Directive To EC Machinery Directive | ||
| Certified for safety functions to ISO 13849 (PL) | Product can be used in SRP/CS up to category 4, PL e | ||
| Safety Integrity Level (SIL) | Safe stop 2 (SS2)/SIL 3 Safe stop 1 (SS1)/SIL 3 Safe brake control (SBC)/SIL 3 Safely limited speed (SLS)/SIL 3 Safe operating stop (SOS)/SIL 3 Safe speed monitor (SSM)/SIL 3 Safe Speed Range (SSR)/SIL 3 Safe torque off (STO)/SIL 3 | ||
| SFF Safe Failure Fraction | 99,5 % | ||
| Proof test interval | 20 y | ||
| LED display, product-specific | Error (red) Normal operation (green) Safe state (yellow) | ||
| Digital outputs, switching logic | Semiconductor outputs: parameterisable PNP (positive switching) 2-channel equivalent/antivalent | ||
| Digital output design | Potential-free signal contact 3 safe, 2-channel semiconductor outputs | ||
| Current rating at 40°C | 0,2 A | ||
| Current consumption of logic power supply without clamping brake | 0,2 A | ||
| Nominal current logic power supply | 0,15 A | ||
| Nominal voltage for logic power supply DC | 24 V |
