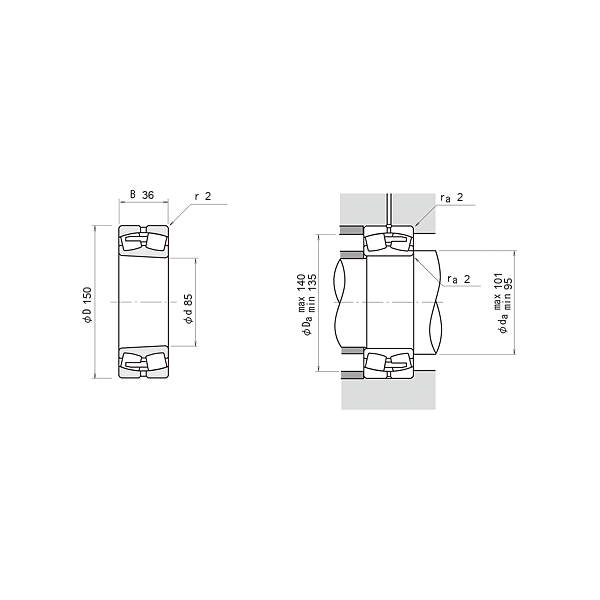

| Bore diameter | d | 85 | mm |
| Breite | B | 36 | mm |
| Shoulder/recess diameter outer ring | D1 | ≈133 | |
| Chamfer dimension outer ring | r1,2 | min.2 |
| Außen-Ø | d2 | 150 | mm |
| Shoulder diameter inner ring | d1 | ≈103 | |
| Permissible axial displacement from the normal position of one bearing ring relative to the other on bearings with a cage or in full complement bearings when displaying away from the retaining ring | s1 | max.7.1 |
