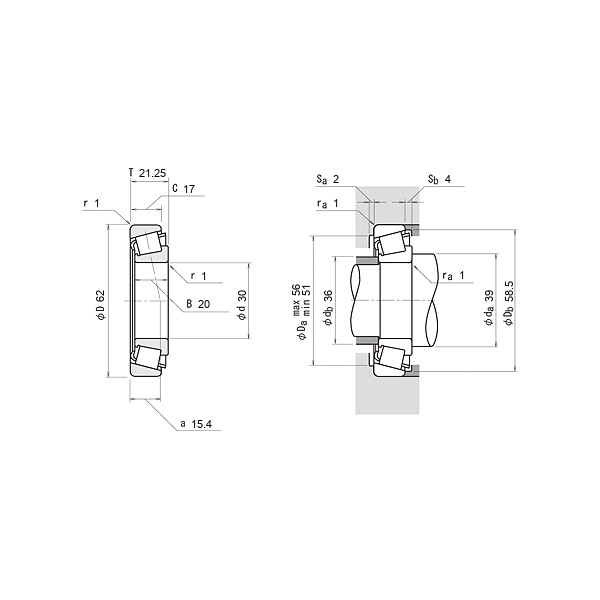

| Bore diameter | d | 30 | mm |
| Breite | B | 20 | mm |
| Shoulder/recess diameter outer ring | D1 | ≈53.1 | |
| Permissible axial displacement of one bearing ring relative to the other when displacing toward the retaining ring or seal | s2 | max.1.5 |
| Außen-Ø | d2 | 62 | mm |
| Shoulder diameter inner ring | d1 | ≈37.4 | |
| Permissible axial displacement from the normal position of one bearing ring relative to the other on bearings with a cage or in full complement bearings when displaying away from the retaining ring | s1 | max.4.5 | |
| Chamfer dimension outer ring | r1,2 | min.1 |
