| Minimum chamfer dimension | rmin | 0,80 | mm |

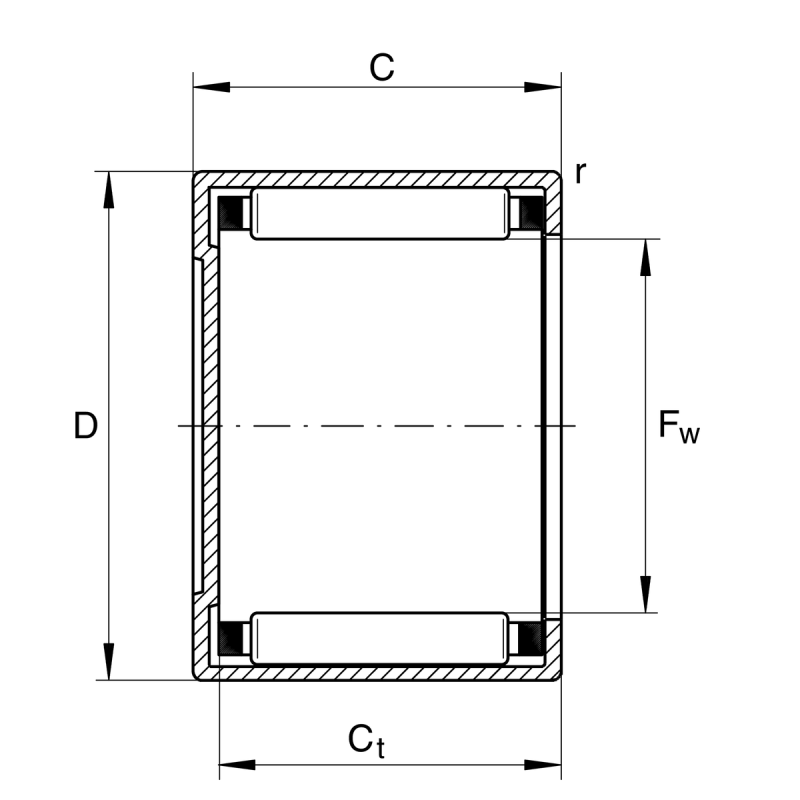

| Minimum width to base of drawn cup with closed end | Ct min | 13,30 | mm |
| Under roller diameter | Fw | 16 | mm |
| Width, outer ring | B | 16 | mm |
| Basic static load rating, radial | C0r | 15,300 | |
| Limiting speed | nG | 15,600 | |
| Reference speed | nϑr | 11,600 |
| Außen-Ø | D | 22 | mm |
| Basic dynamic load rating, radial | Cr | 10,900 | |
| Fatigue load limit, radial | Cur | 1,940 | |
| Limiting speed for grease lubrication | nG Grease | 9,300 |
| Hersteller | Teilenummer |
|---|---|
| IKO | TLAM1616 |
| Torrington | MFJ-1616 |
| SKF | RBNA162216 |
| NTN | BK1616 (NTN) |
| SKF | BK1616 (SKF) |
