| Contact angle | α | 30 | ° |
| Minimum chamfer dimension | rmin | 1 | mm |

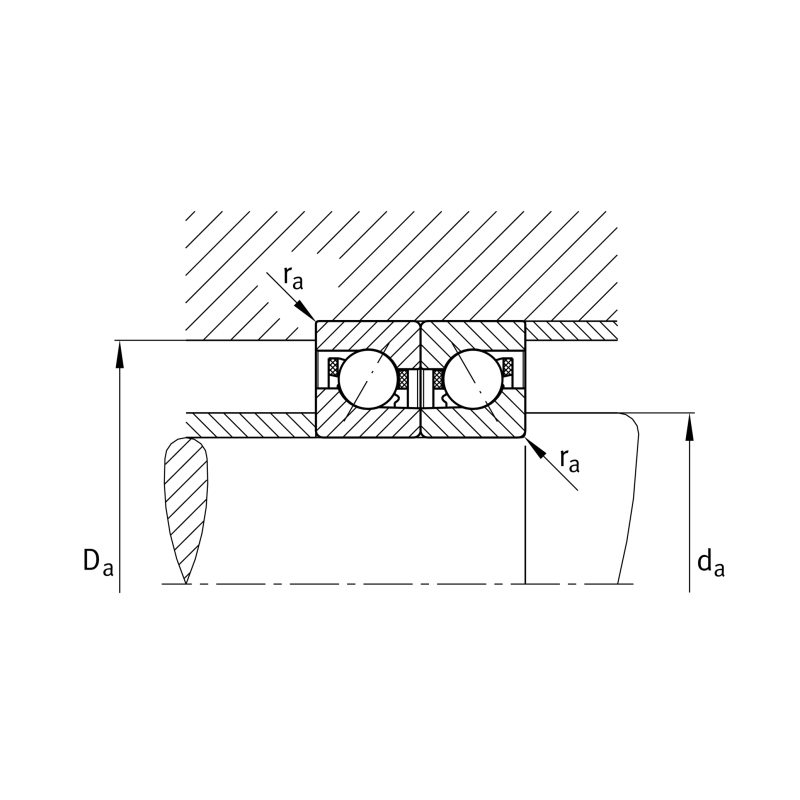

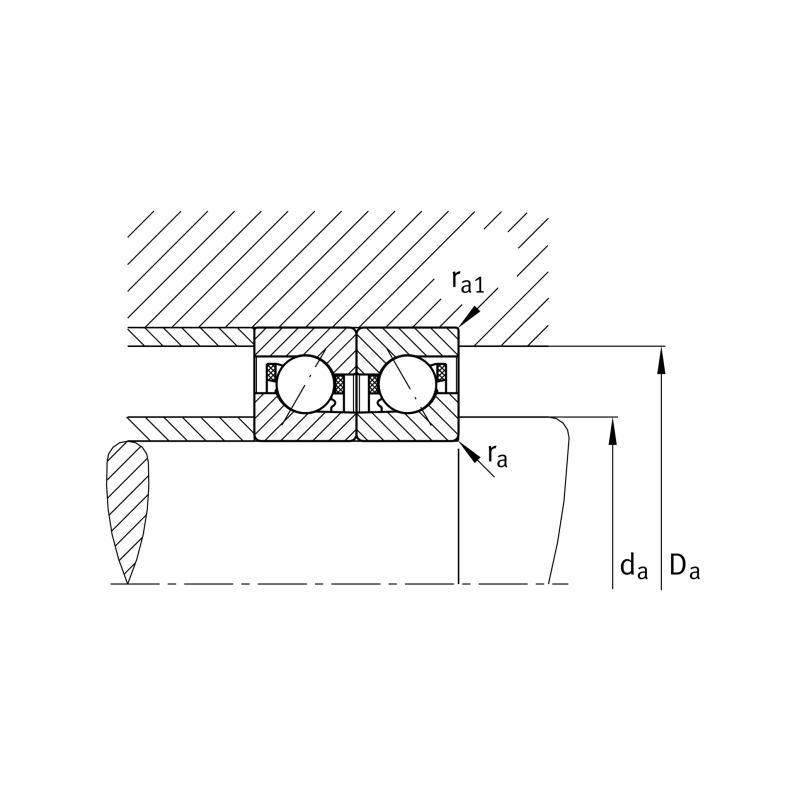

| Undercut radius ra1 max | ra1 | 1 | mm |
| Shoulder diameter outer ring clearance | Da | H12 | |
| Diameter shaft shoulder clearance | da | h12 |
| Maximum recess radius | ra max | 1 | mm |
| Shoulder diameter outer ring | Da | 154,50 | mm |
| Diameter shaft shoulder | da | 125,50 | mm |
| Limiting speed for oil lubrication | nG Oil | 8,000 | |
| Fatigue load limit, axial | Cua | 11,700 | |
| Basic dynamic load rating, axial | Ca | 64,000 | |

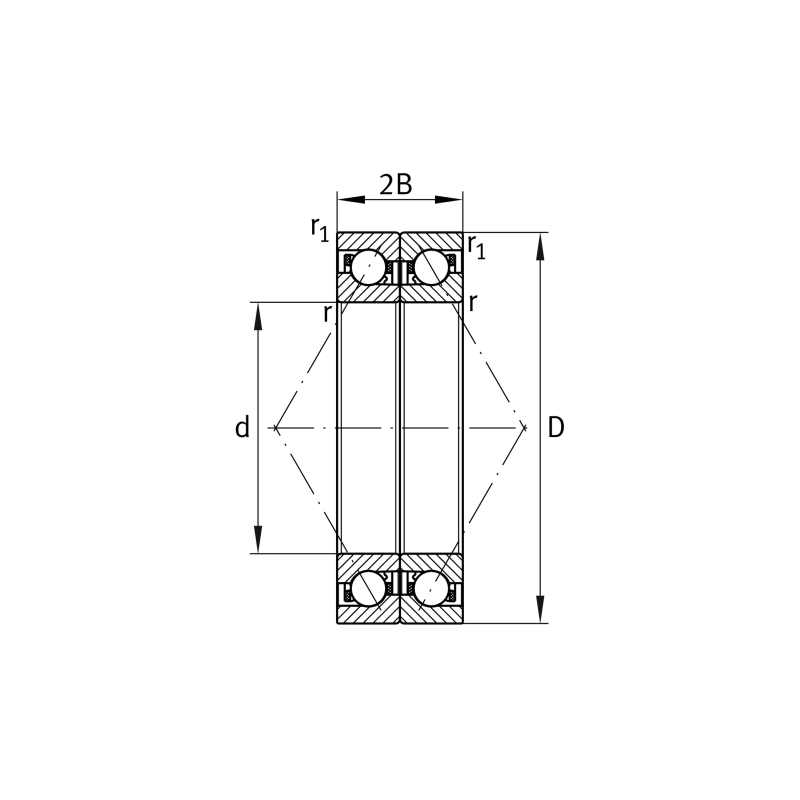

| Außen-Ø | D | 170 | mm |
| Limiting speed for grease lubrication | nG Grease | 5,600 | |
| Basic static load rating, axial | C0a | 150,000 | |
| Breite | B | 54 | mm |
| Bore diameter | d | 110 | mm |
