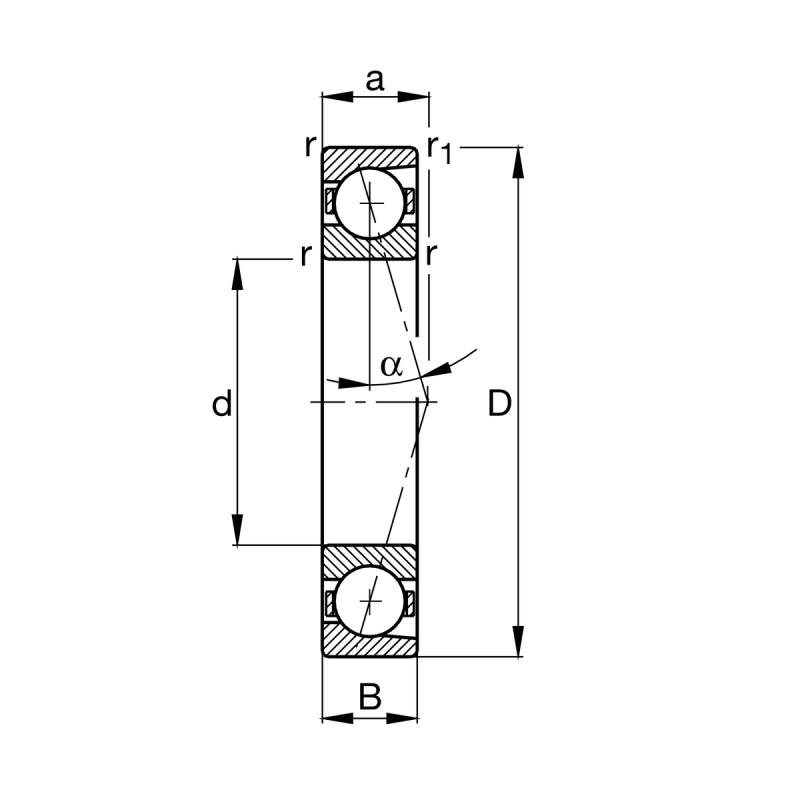

| Minimum chamfer dimension | rmin | 1,10 | mm |
| Contact angle | α | 25 | ° |
| Bore diameter | d | 35 | mm |
| Breite | B | 17 | mm |
| Basic static load rating, radial | C0r | 12,100 | |
| Limiting speed for grease lubrication | nG Grease | 19,000 |
| Außen-Ø | D | 72 | mm |
| Basic dynamic load rating, radial | Cr | 24,500 | |
| Fatigue load limit, radial | Cur | 1,280 | |
| Limiting speed for oil lubrication | nG Oil | 32,000 |

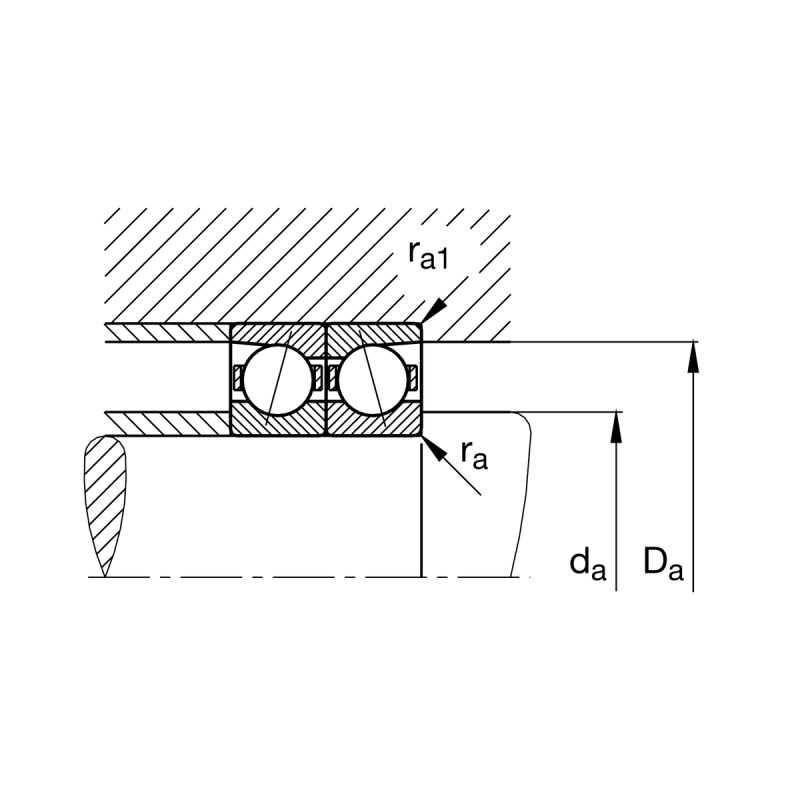

| Diameter shaft shoulder | da | 44 | mm |
| Shoulder diameter outer ring | Da | 63 | mm |
| Maximum recess radius | ra max | 0,30 | mm |

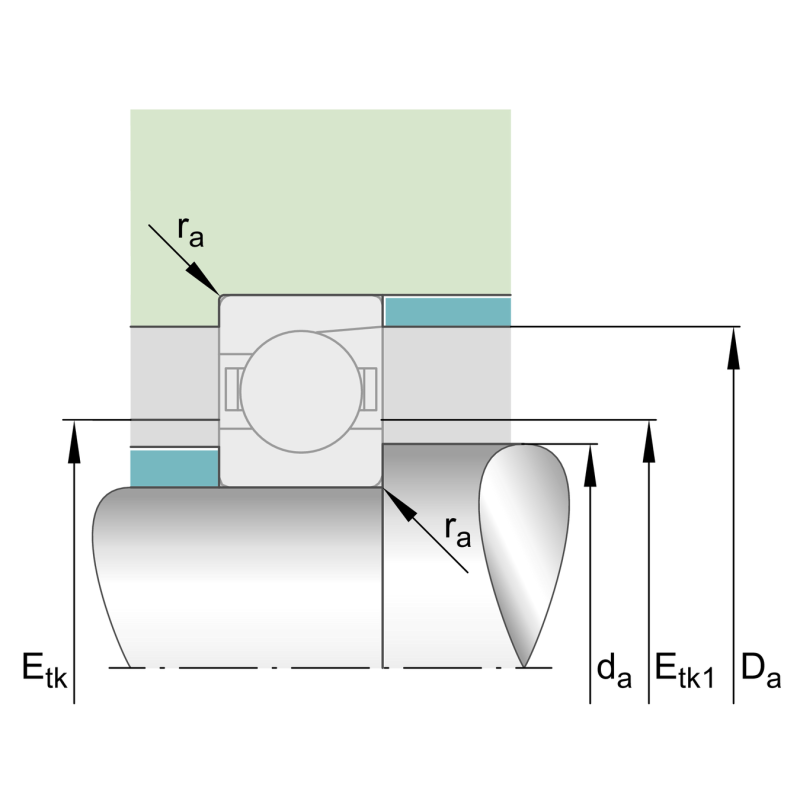

| Maximum diameter injection pitch | Etk max | 51 | mm |
| Diameter shaft shoulder clearance | da | h12 | |
| Shoulder diameter outer ring clearance | Da | H12 | |
| Minimum diameter injection pitch | Etk min | 47,80 | mm |
| Distance between the apexes of the pressure cones | a | 21 | mm |
