SMC AR
25 Produkte
Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie SMC AR – AR Regulator, Regulator AR. Finden Sie das passende Produkt durch Filtern mit Body Size, Port Size, Digital pressure switch, Knob, Pressure unit und Gewicht.
AR Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| AR | AR- - - | AR Regulator |
| AR | AR- - -A | Regulator AR |
| AR | AR- - - | AR Regulator |

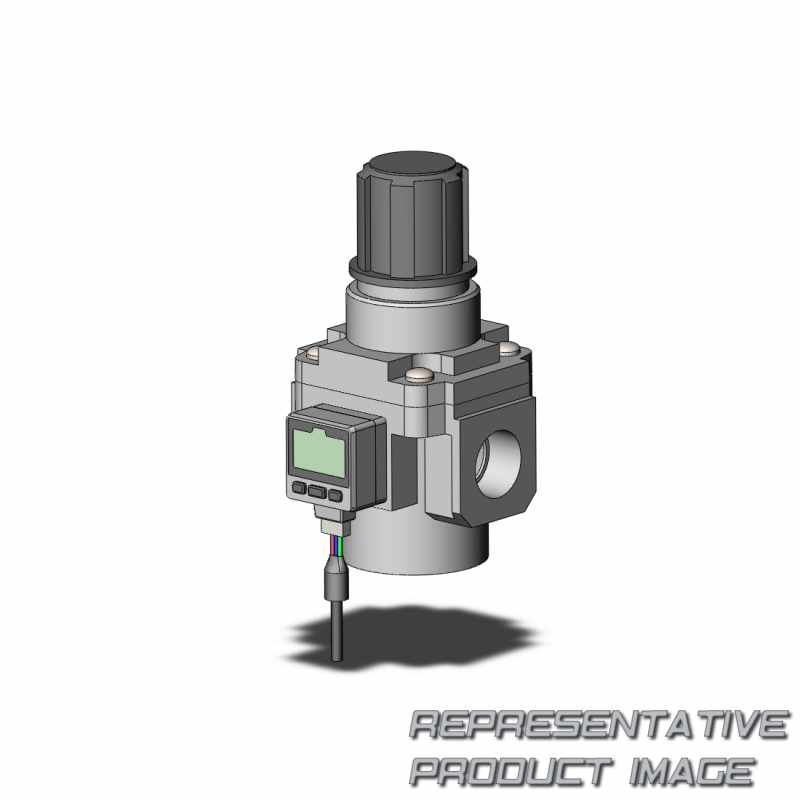

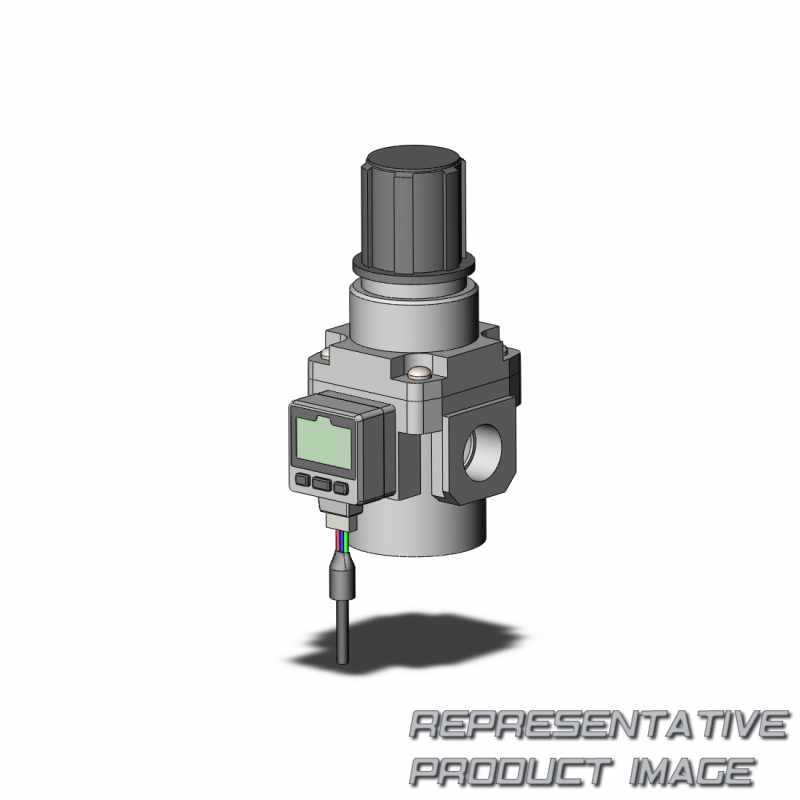

Typcode zur Katalognummer AR,
AR- - -
| 001 | Series |
|---|---|
| AR | AR Regulator |
| 002 | Body Size |
| 10 | 10 |
| 20 | 20 |
| 25 | 25 |
| 30 | 30 |
| 40 | 40 |
| 50 | 50 |
| 60 | 60 |
| 003 | With backflow function |
| K | With backflow function |
| Without backflow function | |
| 004 | Thread type |
| F | G |
| N | NPT |
| Rc or M5 | |
| 005 | Port size |
| M5 | M5 |
| 01 | 1/8 |
| 02 | 1/4 |
| 03 | 3/8 |
| 04 | 1/2 |
| 06 | 3/4 |
| 10 | 1 |
| 006 | Mounting |
| B | With bracket |
| H | With set nut (for panel fitting) |
| Without mounting option | |
| 007 | Pressure gauge |
|---|---|
| M | Round type pressure gauge (with limit indicator) |
| G | Round type pressure gauge |
| E | Square embedded type pressure gauge |
| Without pressure gauge | |
| 008 | Digital pressure switch |
| E1 | Output: NPN output / Electrical entry: Wiring bottom entry |
| E2 | Output: NPN output / Electrical entry: Wiring top entry |
| E3 | Output: PNP output / Electrical entry: Wiring bottom entry |
| E4 | Output: PNP output / Electrical entry: Wiring top entry |
| 009 | Set pressure |
| 1 | 0.02 to 0.2 MPa setting |
| 0.05 to 0.85 MPa setting | |
| 010 | Exhaust mechanism |
| N | Non-relieving type |
| Relieving type | |
| 011 | Flow direction |
| R | Flow direction: Right to left |
| Flow direction: Left to right | |
| 012 | Knob |
| Y | Upward |
| Downward | |
| 013 | Pressure unit |
| ZA | Digital pressure switch: With unit conversion function |
| Z | Name plate and pressure gauge in imperial units: psi |
| Name plate and pressure gauge in imperial units: MPa |

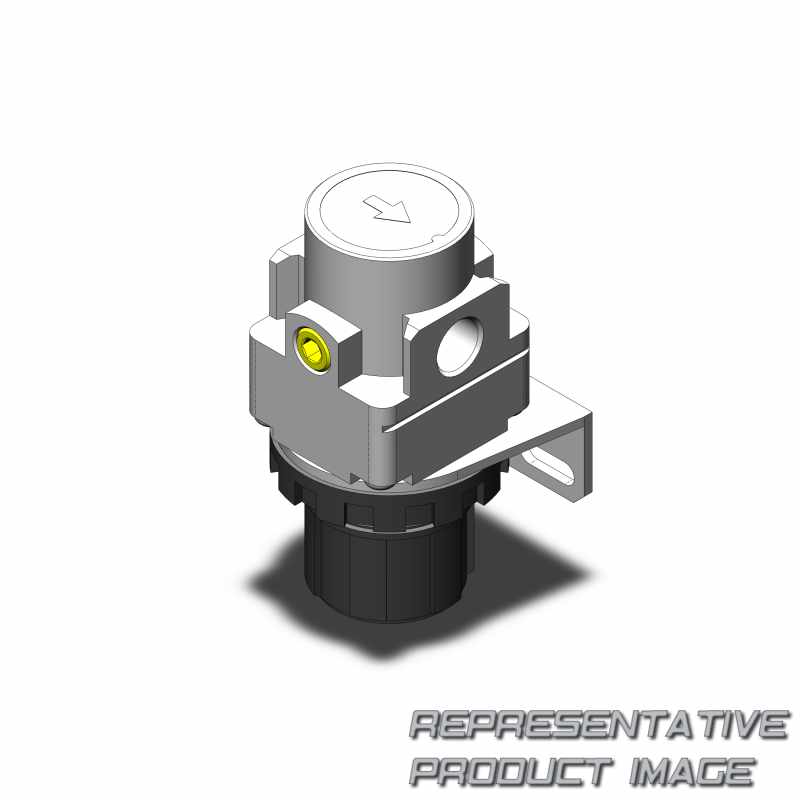

Typcode zur Katalognummer AR,
AR- - -A
| 001 | Series |
|---|---|
| AR | Regulator AR |
| 002 | Size |
| 20 | 20 |
| 25 | 25 |
| 30 | 30 |
| 40 | 40 |
| 003 | Thread type |
| F | G |
| N | NPT |
| Rc | |
| 004 | Port Size |
| 01 | 1/8 |
| 02 | 1/4 |
| 03 | 3/8 |
| 04 | 1/2 |
| 06 | 3/4 |
| 005 | Mounting |
| B | With bracket |
| Without mounting option | |
| 006 | Pressure gauge |
| M | Round type pressure gauge (with limit indicator) |
| G | Round type pressure gauge (with color zone) |
| Without pressure gauge | |
| 007 | Set pressure |
|---|---|
| 1 | 0.02 to 0.2 MPa setting |
| 0.05 to 0.7 MPa setting | |
| 008 | Exhaust mechanism |
| N | Non-relieving type |
| Relieving type | |
| 009 | Flow direction |
| R | Folw direction: Right to left |
| Folw direction: Left to right | |
| 010 | Knob |
| Y | Upward |
| Downward | |
| 011 | Pressure unit |
| Z | Name plate, caution plate for bowl, and pressure gauge in imperial units |
| Name plate and pressure gauge in imperial units | |
| 012 | Type 2 |
| A | A |

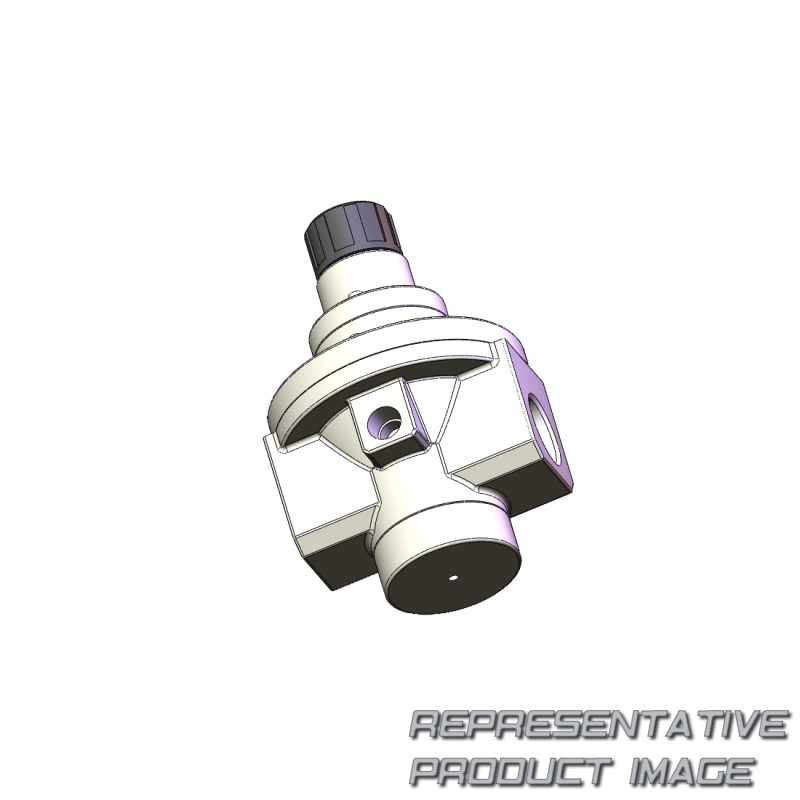

Typcode zur Katalognummer AR,
AR- - -
| 001 | Series |
|---|---|
| AR | AR Regulator |
| 002 | Body Size |
| 4 | 1/2 |
| 6 | 1 |
| 8 | 1 1/2 |
| 9 | 2 |
| 003 | Regulating pressure range |
| 25 | 0.05 to 0.83MPa |
| 30 | 0.02 to 0.2MPa |
| 004 | Thread type |
| F | G |
| N | NPT |
| Rc | |
| 005 | Port size |
| 02 | 1/4 |
| 03 | 3/8 |
| 04 | 1/2 |
| 06 | 3/4 |
| 10 | 1 |
| 12 | 1 1/4 |
| 14 | 1 1/2 |
| 20 | 2 |
| 006 | Accessory |
|---|---|
| P | P |
| B | With bracket |
| G | G |
| None | |
| 007 | Option |
| R | Flow direction: Right to left |
| None (Standard) |
