ADVUL Festo

FESTO ADVUL

286 Produkte

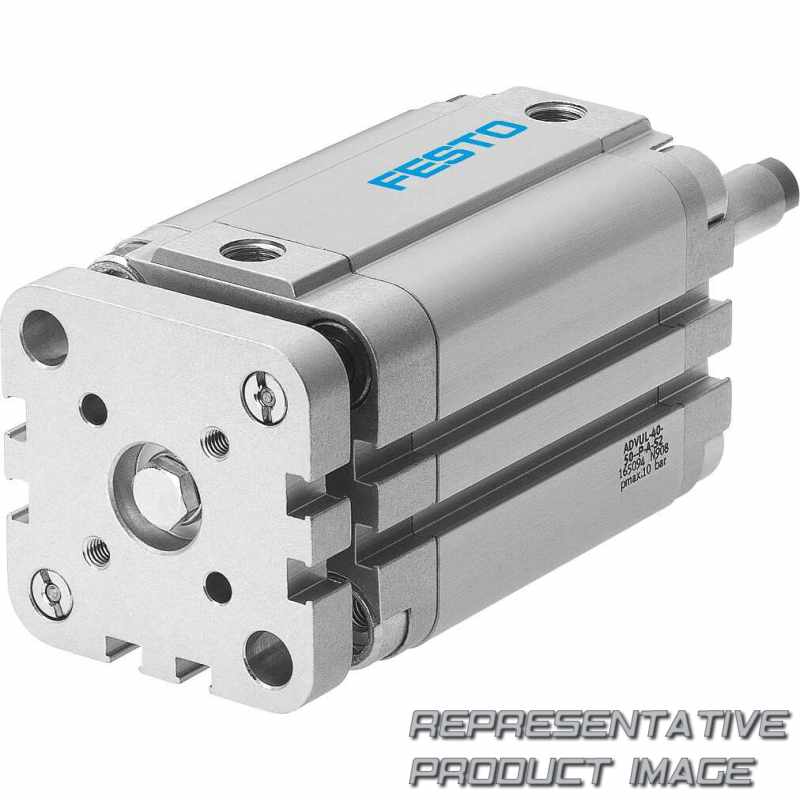

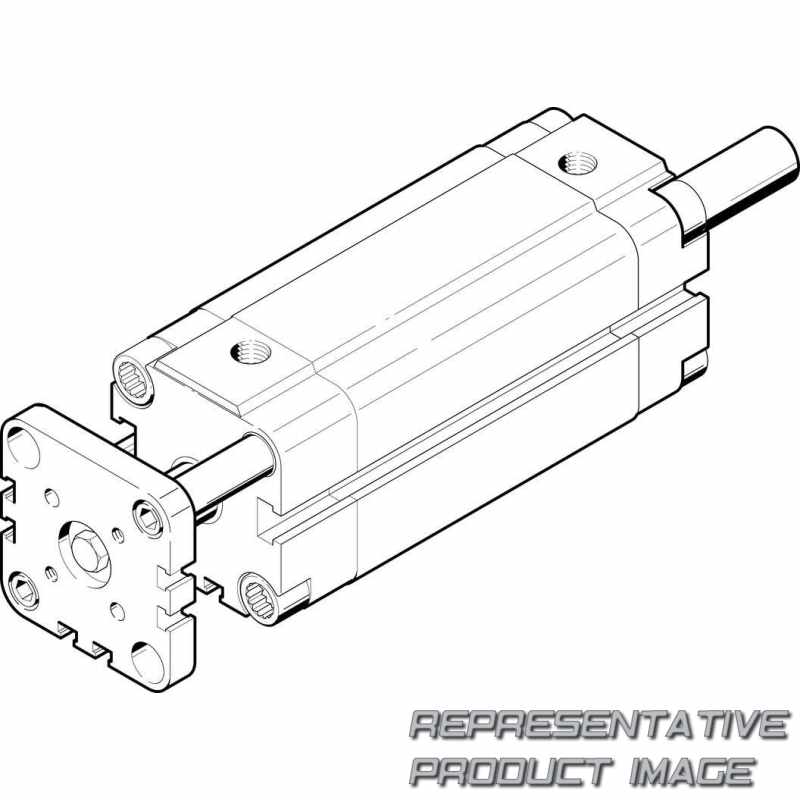

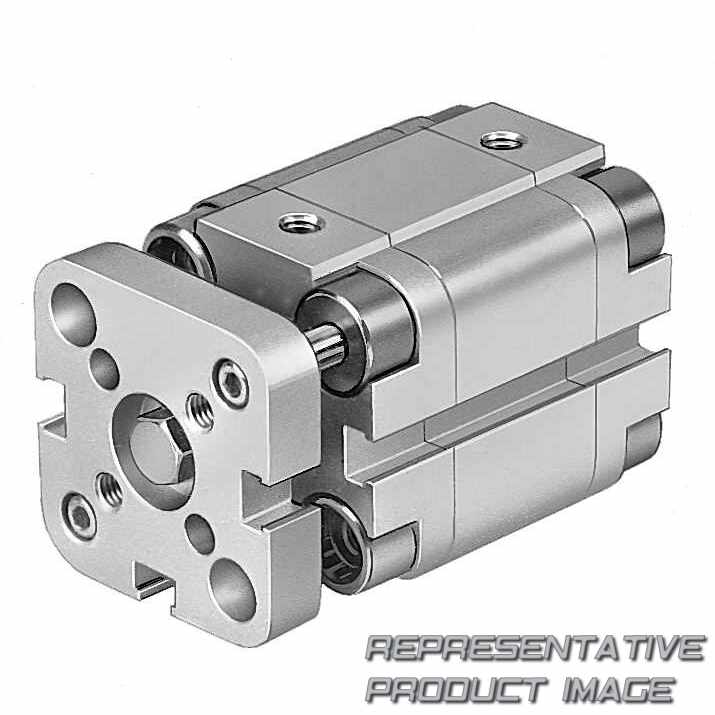

Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO ADVUL – Compact cylinder, double-acting, protected against rotation by guide rod and yoke plate. Finden Sie das passende Produkt durch Filtern mit Piston diameter [mm], Stroke [mm], Piston rod type und Temperature range.

ADVUL Typcodes

Serie	Katalognummernformat	Beschreibung
ADVUL	ADVUL- - -P-A	Compact cylinder, double-acting, protected against rotation by guide rod and yoke plate

Typcode zur Katalognummer ADVUL, ADVUL- - -P-A

001	Series
ADVUL	Compact cylinder, double-acting, protected against rotation by guide rod and yoke plate
002	Piston diameter [mm]
12	12
16	16
20	20
25	25
32	32
40	40
50	50
63	63
80	80
100	100

003	Stroke [mm]
...	1 ... 400
004	Cushioning
P	Elastic cushioning rings/plates on both sides
005	Position sensing
A	For proximity sensor
006	Piston rod type
	At one end
S2	Through piston rod
007	Temperature range
	Standard
S6	Heat-resistant seals max. 120 °C

Produkte

Zeige 1 Produkt bis 12 von insgesamt 286

Katalognummer	Teilenummer	Stroke [mm]	Piston rod type	Temperature range
ADVUL- 50/63 -PA	358582	63	At one end	Standard
ADVUL- 80/100 -PA	358713	100	At one end	Standard
ADVUL-12-5-P-A	156844	5	At one end	Standard
ADVUL-12-10-P-A	156845	10	At one end	Standard
ADVUL-12-10-P-A-S2	165089	10	Through piston rod	Standard
ADVUL-12-10-P-A-S6	156210	10	At one end	Heat-resistant seals max. 120 °C
ADVUL-12-15-P-A	156846	15	At one end	Standard
ADVUL-12-15-P-A-S2	165089	15	Through piston rod	Standard
ADVUL-12-15-P-A-S6	156210	15	At one end	Heat-resistant seals max. 120 °C
ADVUL-12-20-P-A	156847	20	At one end	Standard
ADVUL-12-20-P-A-S2	165089	20	Through piston rod	Standard
ADVUL-12-20-P-A-S6	156210	20	At one end	Heat-resistant seals max. 120 °C
